appointments-double-booking

Book Dr Kavya Pillai at 13:40 on 26 October 2026, when she already sees the patient from 13:30 to 14:00 (appointment 51140). WHEN-VALIDATE-RECORD runs CHECK_DOUBLE_BOOKING, which finds the overlap, shows the message and raises FORM_TRIGGER_FAILURE: nothing is saved.

0defects

838values match

28tolerated by policy

11waived

0unmapped

Three runs from a fresh database gave byte-identical diffs. Behaviour that looks odd in the migrated app but is the original's: faithful to the original and waivers. Files: scenario, golden record, target record, diff (JSON).

Scenario steps

Items are addressed by their Forms name (BLOCK.ITEM[row]), the same name in the original and, through the mapping, in the migrated app.

#	Step	Action	Checked on the original
0		Open form `cw_login`
1		Type `CTL.USERNAME` = ADMIN
2	sign in	Click `CTL.SIGN_IN`
3	patients	Click `HOME.PATIENTS`
4	appointments	Click `CTL.APPTS`
5	first row	Click `APPOINTMENTS.APPT_START[0]`
6	new row	Step {"label": "new row", "menu": "RECORDS.INSERT"}
7	department	Step {"label": "department", "select": {"APPOINTMENTS.DEPT_ID[1]": "General Medicine"}}
8	doctor	List of values on `APPOINTMENTS.DOCTOR_NAME[1]`, pick `Doctor` = Kavya Pillai
9		Type `APPOINTMENTS.APPT_START[1]` = 26-OCT-2026 13:40
10	save	Click `Toolbar.Save`

Screens, step by step

Left: the original Oracle Forms application, recorded on a virtual display. Right: the migrated application in headless Chromium. Screenshots are evidence only; the comparison works on the recorded values.

No step screenshots of the original were kept for this app; the comparison uses the recorded values, which are in the golden record below.

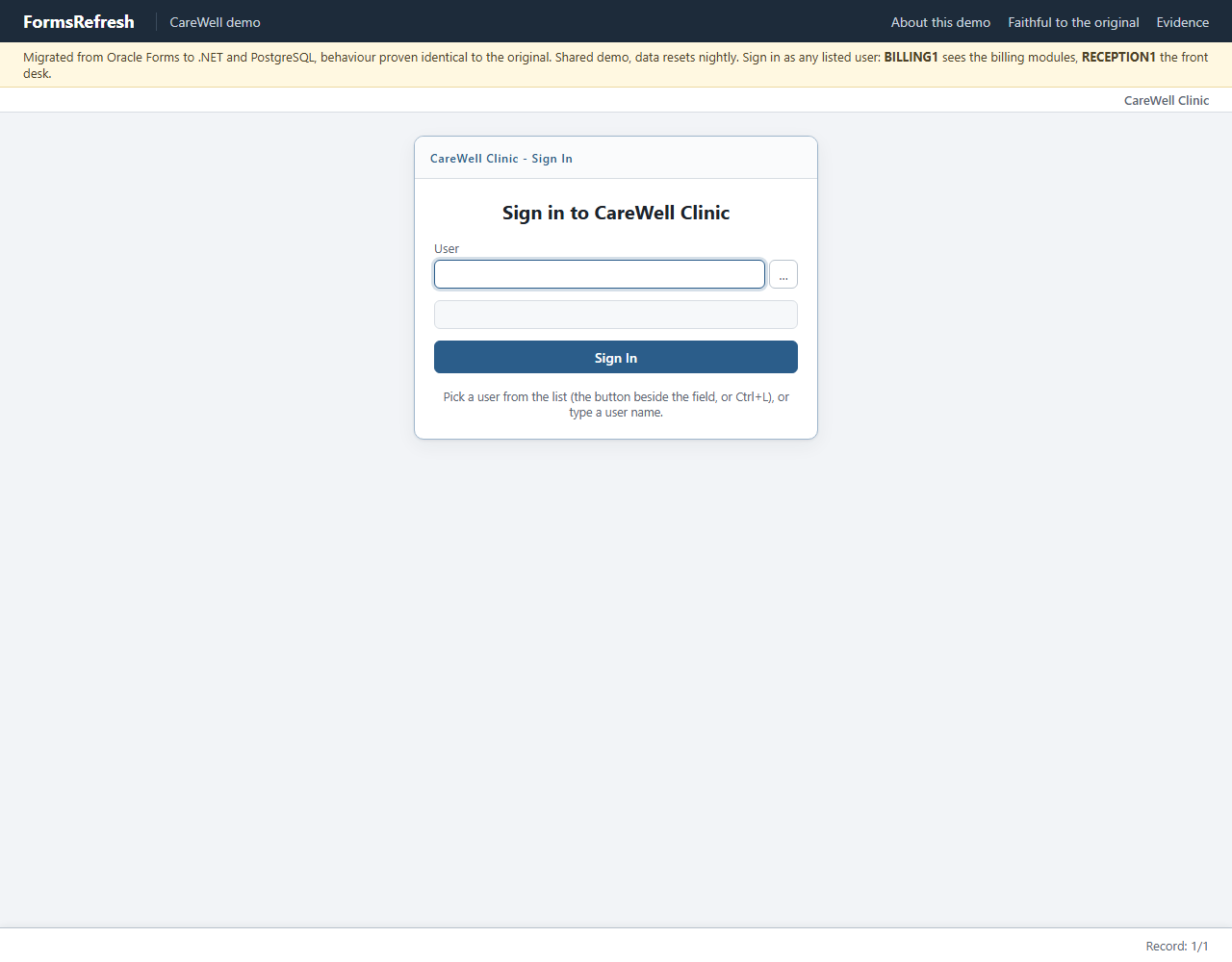

Step 0: open cw_login

no screenshot

Original (Oracle Forms 14.1.2)

Migrated (.NET, PostgreSQL), step 00-open — Migrated (.NET, PostgreSQL)

Step 1: type

no screenshot

Original (Oracle Forms 14.1.2)

Migrated (.NET, PostgreSQL), step 01-type — Migrated (.NET, PostgreSQL)

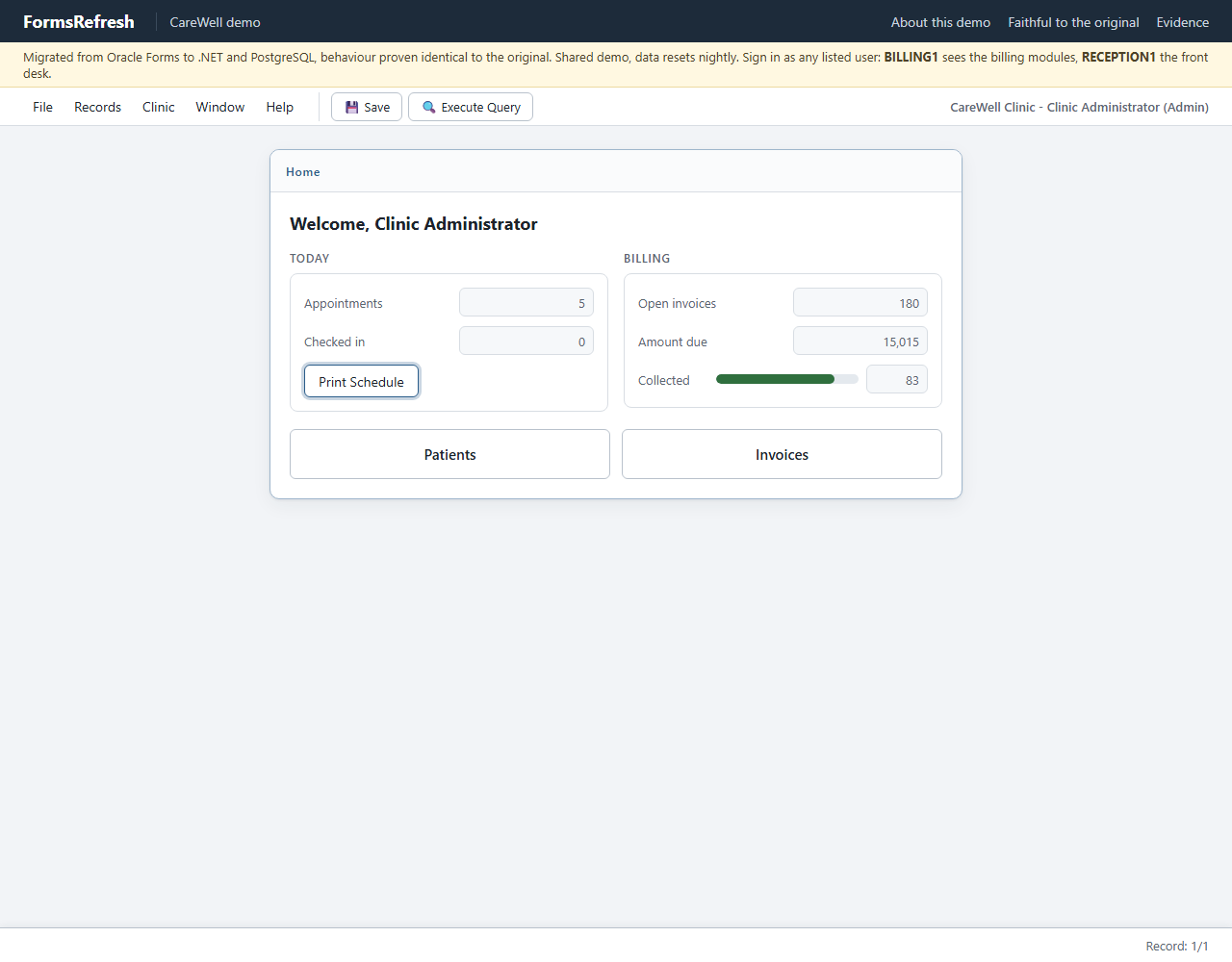

Step 2: sign in

no screenshot

Original (Oracle Forms 14.1.2)

Migrated (.NET, PostgreSQL), step 02-sign-in — Migrated (.NET, PostgreSQL)

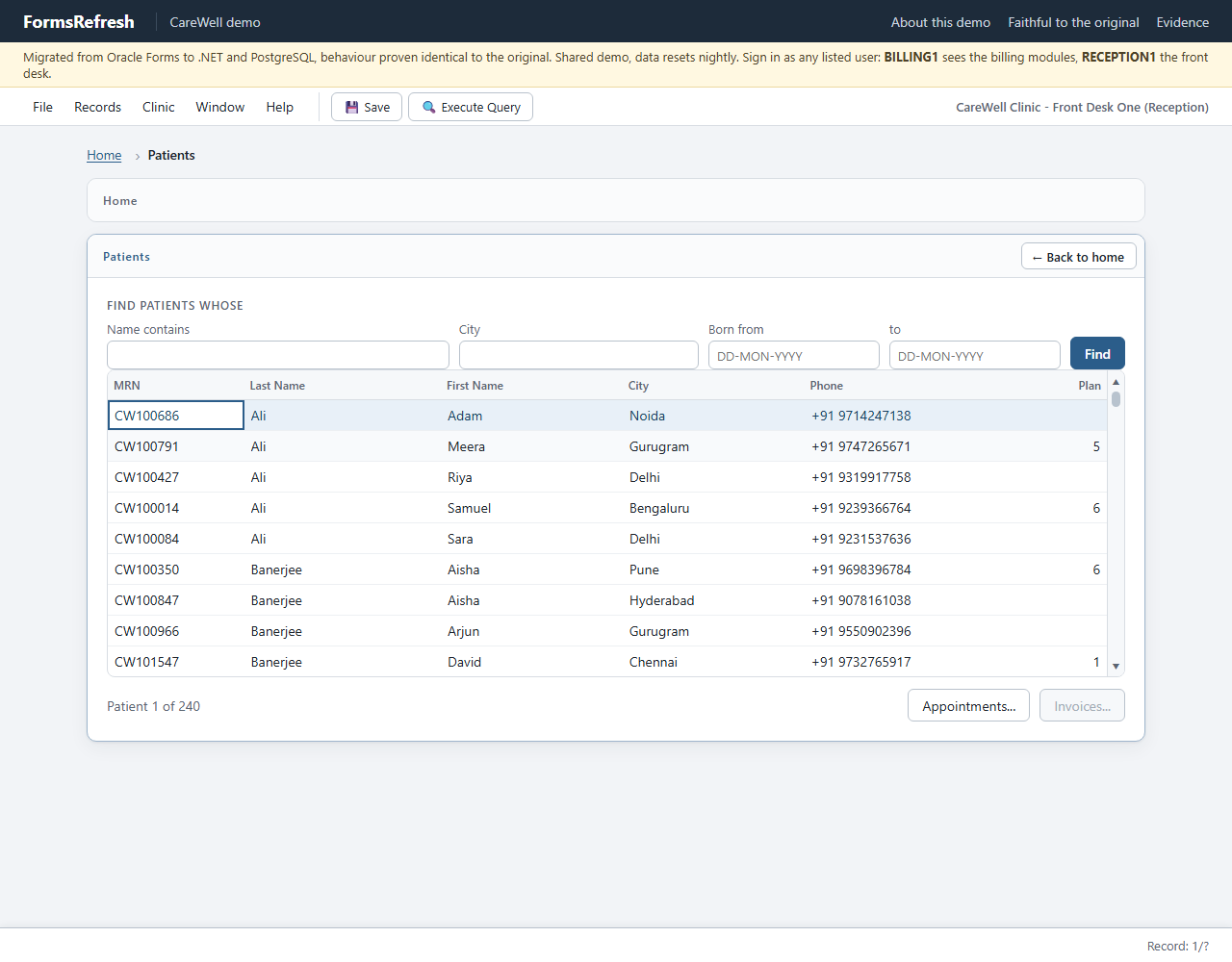

Step 3: patients

no screenshot

Original (Oracle Forms 14.1.2)

Migrated (.NET, PostgreSQL), step 03-patients — Migrated (.NET, PostgreSQL)

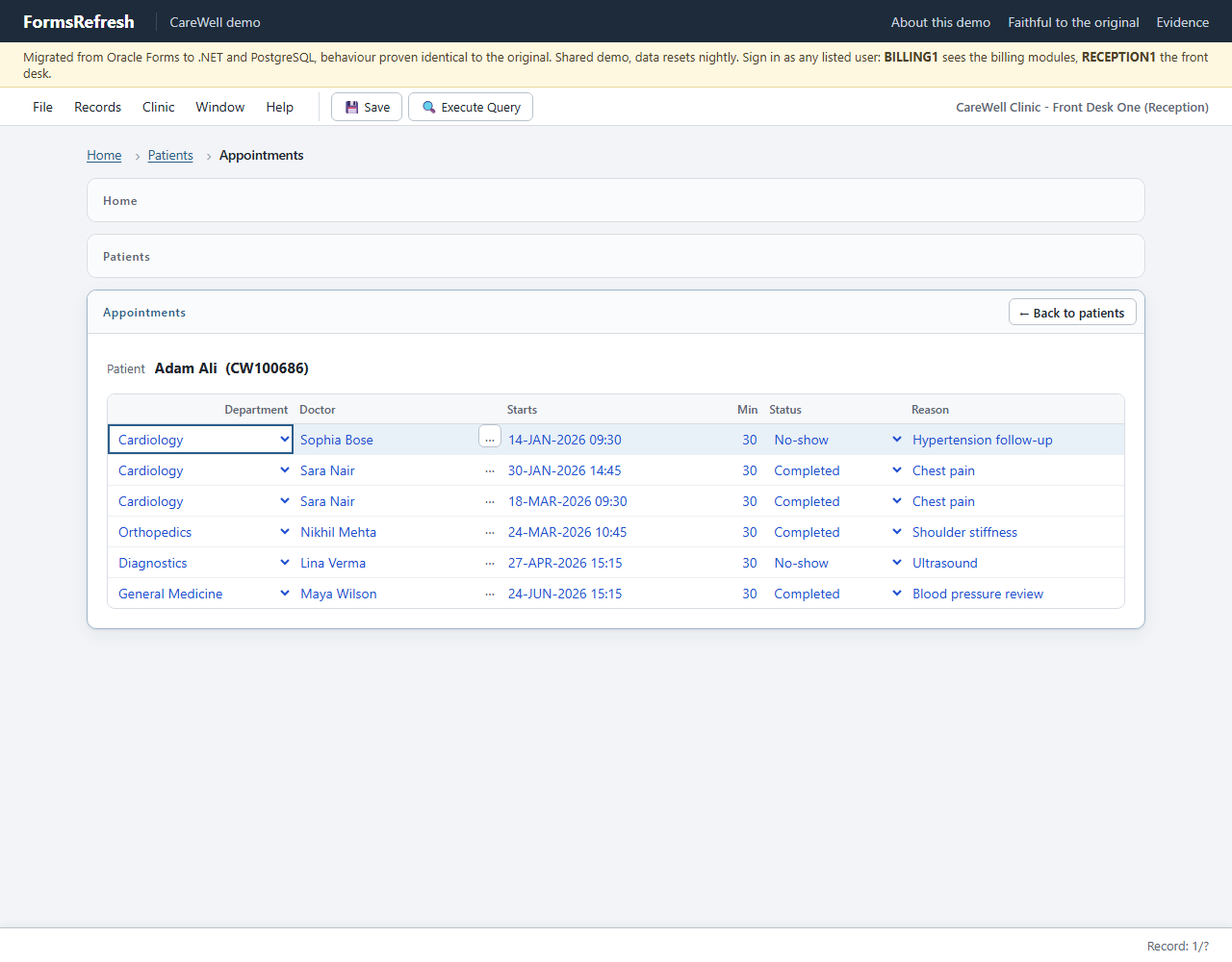

Step 4: appointments

no screenshot

Original (Oracle Forms 14.1.2)

Migrated (.NET, PostgreSQL), step 04-appointments — Migrated (.NET, PostgreSQL)

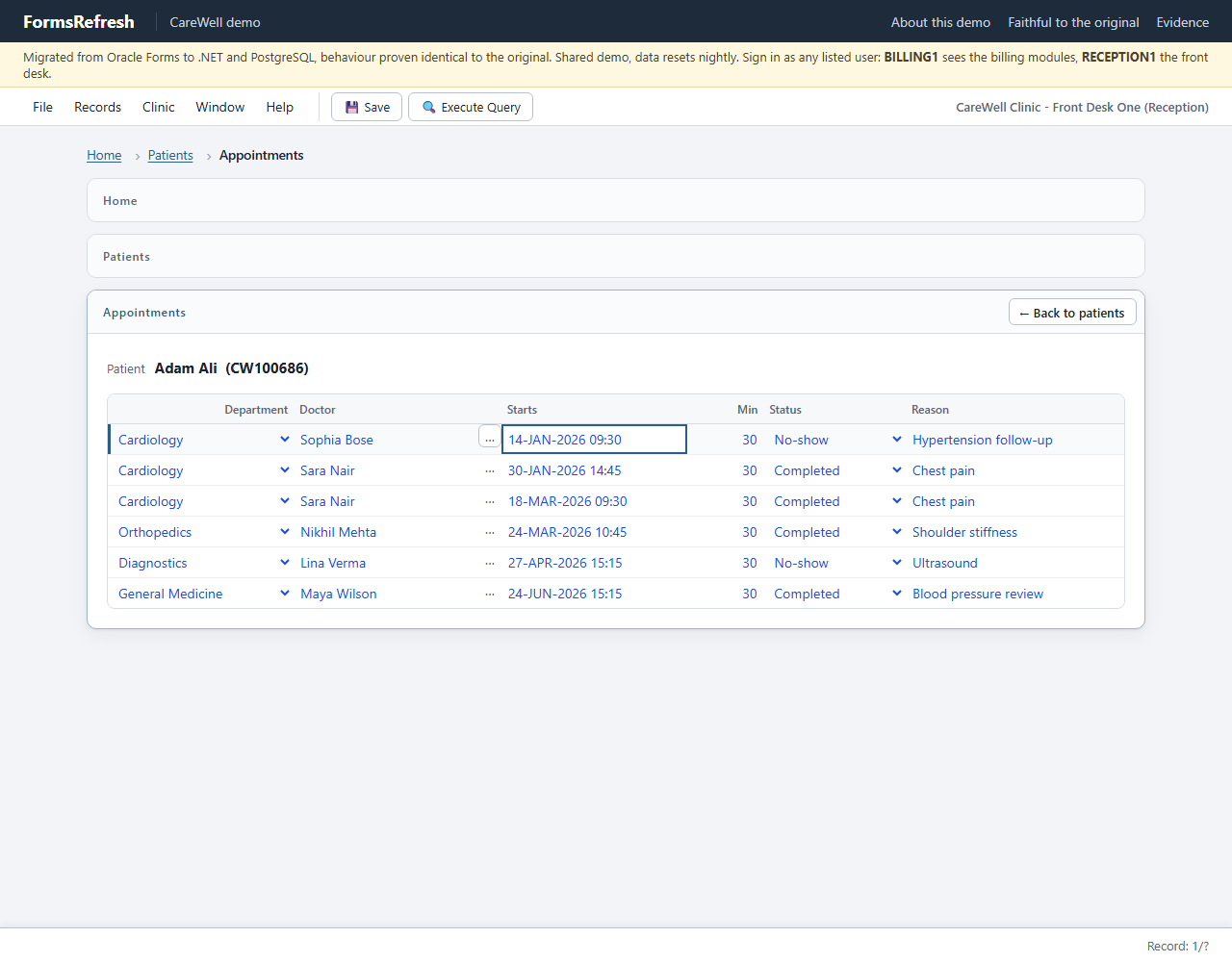

Step 5: first row

no screenshot

Original (Oracle Forms 14.1.2)

Migrated (.NET, PostgreSQL), step 05-first-row — Migrated (.NET, PostgreSQL)

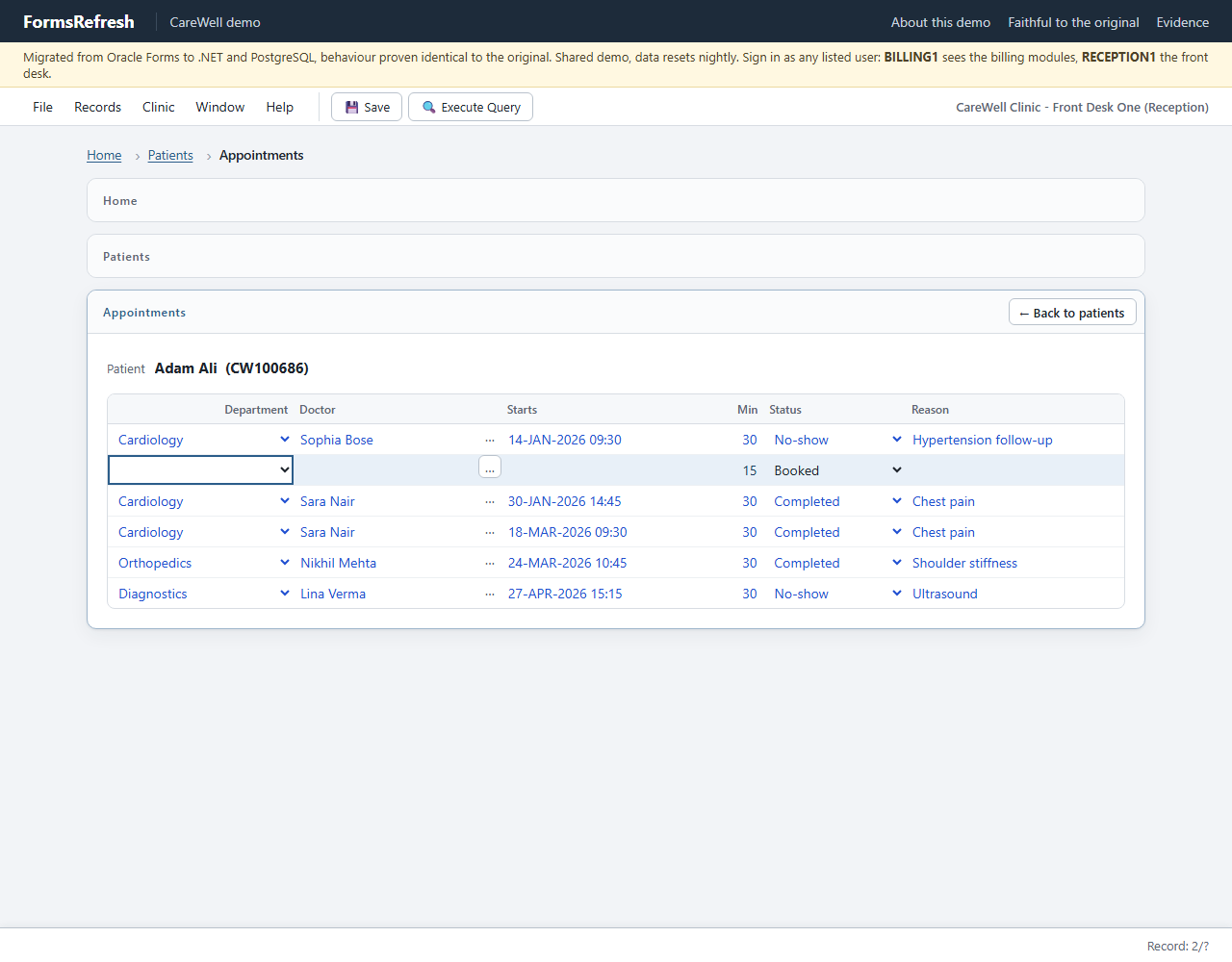

Step 6: new row

no screenshot

Original (Oracle Forms 14.1.2)

Migrated (.NET, PostgreSQL), step 06-new-row — Migrated (.NET, PostgreSQL)

Step 7: department

no screenshot

Original (Oracle Forms 14.1.2)

Migrated (.NET, PostgreSQL), step 07-department — Migrated (.NET, PostgreSQL)

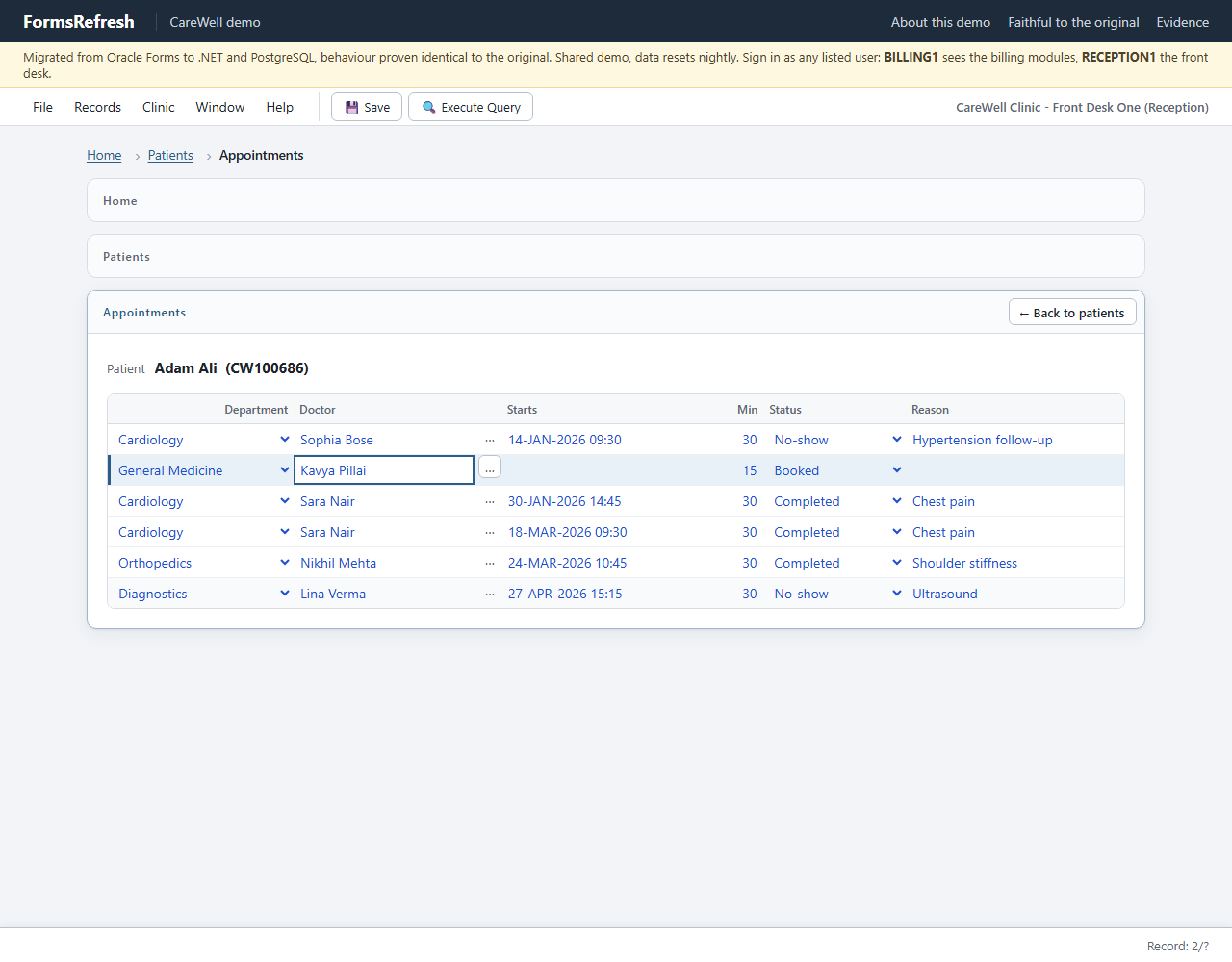

Step 8: doctor

no screenshot

Original (Oracle Forms 14.1.2)

Migrated (.NET, PostgreSQL), step 08-doctor — Migrated (.NET, PostgreSQL)

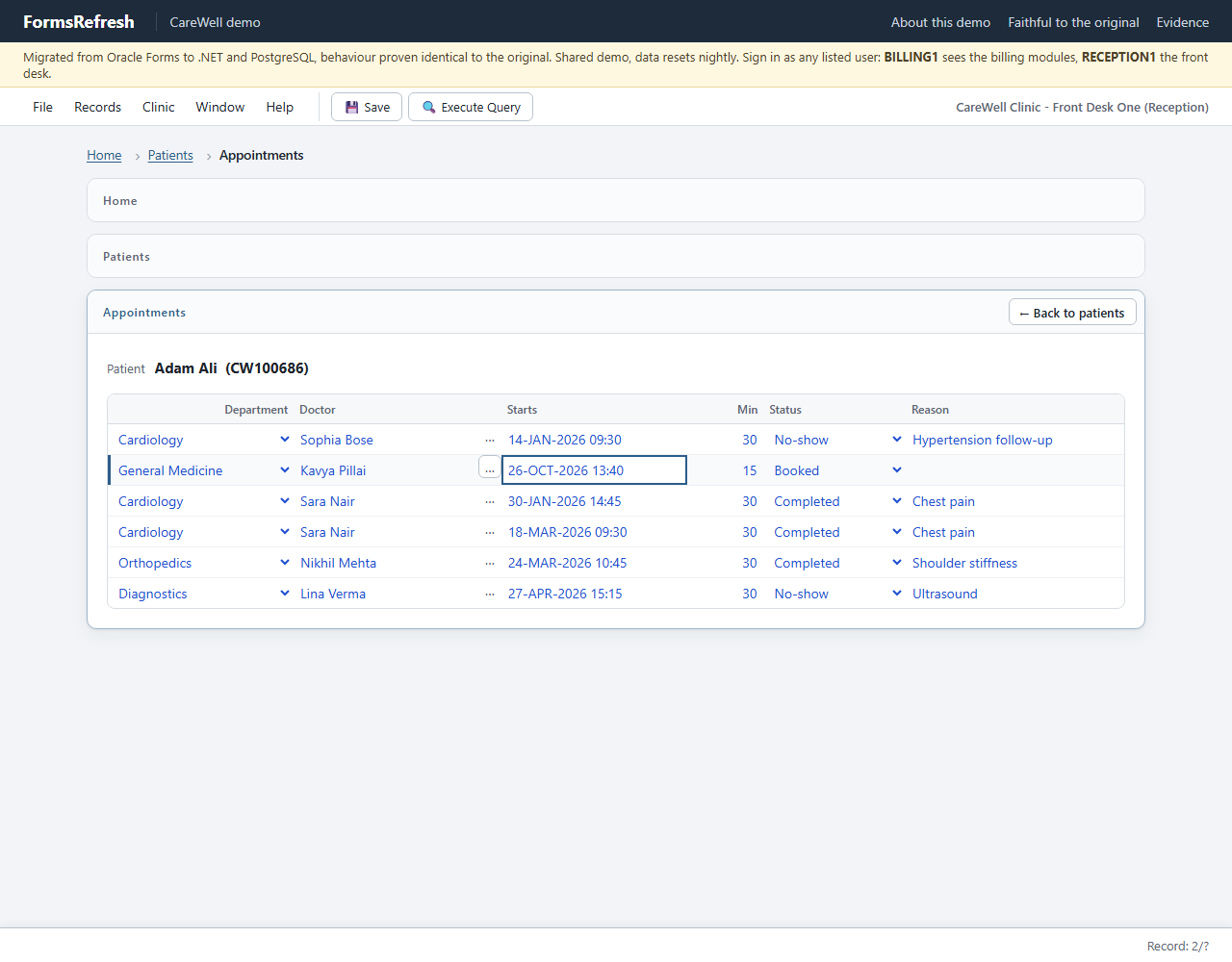

Step 9: type

no screenshot

Original (Oracle Forms 14.1.2)

Migrated (.NET, PostgreSQL), step 09-type — Migrated (.NET, PostgreSQL)

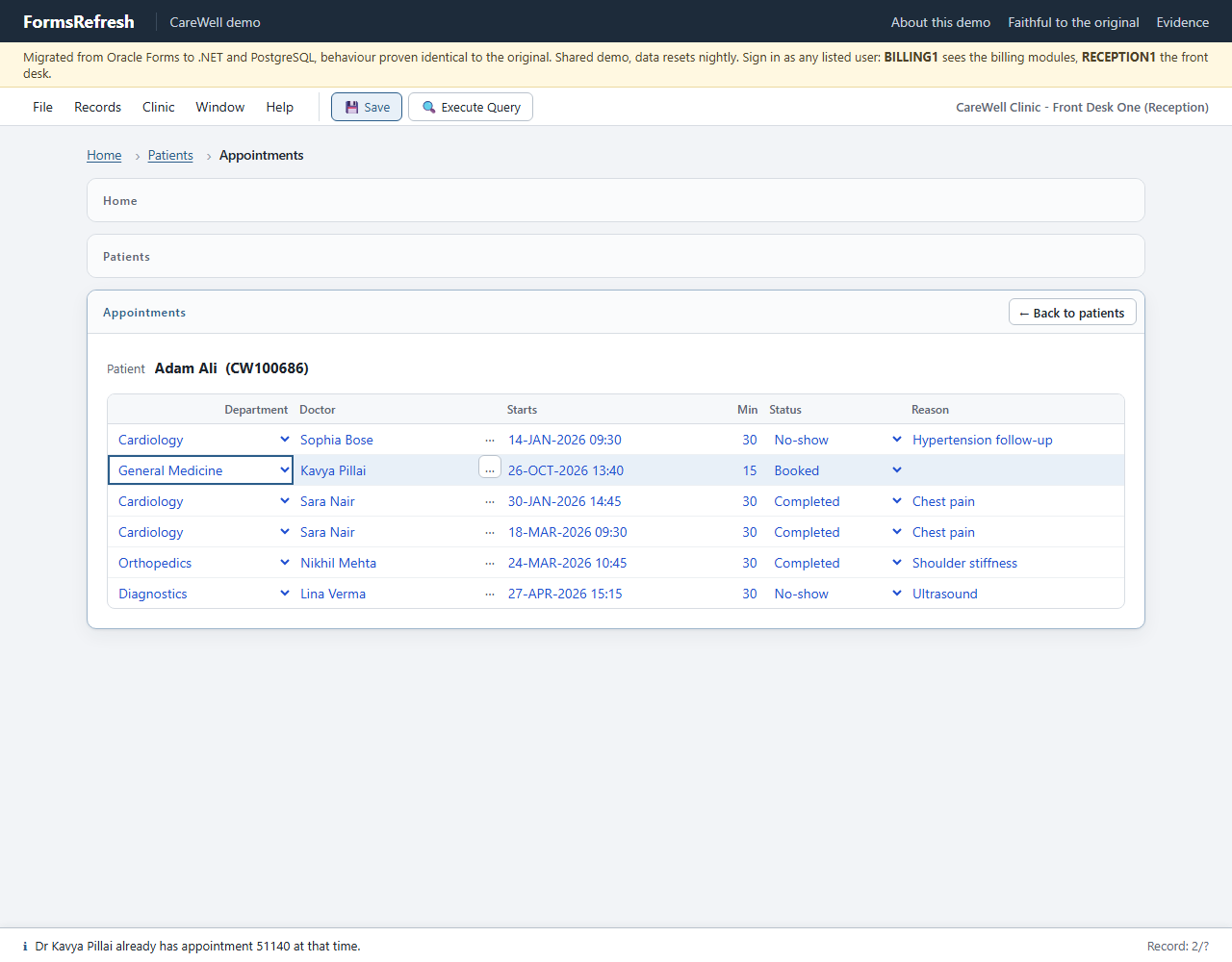

Step 10: save

no screenshot

Original (Oracle Forms 14.1.2)

Migrated (.NET, PostgreSQL), step 10-save — Migrated (.NET, PostgreSQL)

Golden record of the original

After each step: the focus, the displayed values that changed, the message line and any alert. The full record (every item of every step, windows, lists of values) is in the JSON file.

#	Step	Action (by name)	Focus after	Displayed values that changed	Message line	Alert	Expect
0		`Open form cw_login`	`CTL.USERNAME[0]`
1		`Type CTL.USERNAME = ADMIN`	`CTL.USERNAME[0]`	`CTL.USERNAME[0]` = ADMIN
2	sign in	`Click CTL.SIGN_IN`	`HOME.SCHEDULE[0]`	`HOME.CHECKED_IN[0]` = <any> `HOME.OPEN_AMOUNT[0]` = 15,015 `HOME.OPEN_INVOICES[0]` = 180 `HOME.TODAY_TOTAL[0]` = <any> `HOME.WELCOME[0]` = Welcome, Clinic Administrator
3	patients	`Click HOME.PATIENTS`	`PATIENTS.MRN[0]`	`CTL.COUNTER[0]` = Patient 1 of 240 `PATIENTS.CITY[0]` = Noida `PATIENTS.CITY[1]` = Gurugram `PATIENTS.CITY[2]` = Delhi `PATIENTS.CITY[3]` = Bengaluru `PATIENTS.CITY[4]` = Delhi `PATIENTS.CITY[5]` = Pune `PATIENTS.CITY[6]` = Hyderabad `PATIENTS.CITY[7]` = Gurugram `PATIENTS.CITY[8]` = Chennai `PATIENTS.FIRST_NAME[0]` = Adam `PATIENTS.FIRST_NAME[1]` = Meera `PATIENTS.FIRST_NAME[2]` = Riya `PATIENTS.FIRST_NAME[3]` = Samuel `PATIENTS.FIRST_NAME[4]` = Sara `PATIENTS.FIRST_NAME[5]` = Aisha `PATIENTS.FIRST_NAME[6]` = Aisha `PATIENTS.FIRST_NAME[7]` = Arjun `PATIENTS.FIRST_NAME[8]` = David `PATIENTS.LAST_NAME[0]` = Ali `PATIENTS.LAST_NAME[1]` = Ali `PATIENTS.LAST_NAME[2]` = Ali `PATIENTS.LAST_NAME[3]` = Ali `PATIENTS.LAST_NAME[4]` = Ali `PATIENTS.LAST_NAME[5]` = Banerjee `PATIENTS.LAST_NAME[6]` = Banerjee `PATIENTS.LAST_NAME[7]` = Banerjee `PATIENTS.LAST_NAME[8]` = Banerjee `PATIENTS.MRN[0]` = CW100686 `PATIENTS.MRN[1]` = CW100791 `PATIENTS.MRN[2]` = CW100427 `PATIENTS.MRN[3]` = CW100014 `PATIENTS.MRN[4]` = CW100084 `PATIENTS.MRN[5]` = CW100350 `PATIENTS.MRN[6]` = CW100847 `PATIENTS.MRN[7]` = CW100966 `PATIENTS.MRN[8]` = CW101547 `PATIENTS.PHONE[0]` = +91 9714247138 `PATIENTS.PHONE[1]` = +91 9747265671 `PATIENTS.PHONE[2]` = +91 9319917758 `PATIENTS.PHONE[3]` = +91 9239366764 `PATIENTS.PHONE[4]` = +91 9231537636 `PATIENTS.PHONE[5]` = +91 9698396784 `PATIENTS.PHONE[6]` = +91 9078161038 `PATIENTS.PHONE[7]` = +91 9550902396 `PATIENTS.PHONE[8]` = +91 9732765917 `PATIENTS.PLAN_ID[1]` = 5 `PATIENTS.PLAN_ID[3]` = 6 `PATIENTS.PLAN_ID[5]` = 6 `PATIENTS.PLAN_ID[8]` = 1
4	appointments	`Click CTL.APPTS`	`APPOINTMENTS.DEPT_ID[0]`	`APPOINTMENTS.APPT_START[0]` = 14-JAN-2026 09:30 `APPOINTMENTS.APPT_START[1]` = 30-JAN-2026 14:45 `APPOINTMENTS.APPT_START[2]` = 18-MAR-2026 09:30 `APPOINTMENTS.APPT_START[3]` = 24-MAR-2026 10:45 `APPOINTMENTS.APPT_START[4]` = 27-APR-2026 15:15 `APPOINTMENTS.APPT_START[5]` = 24-JUN-2026 15:15 `APPOINTMENTS.DEPT_ID[0]` = Cardiology `APPOINTMENTS.DEPT_ID[1]` = Cardiology `APPOINTMENTS.DEPT_ID[2]` = Cardiology `APPOINTMENTS.DEPT_ID[3]` = Orthopedics `APPOINTMENTS.DEPT_ID[4]` = Diagnostics `APPOINTMENTS.DEPT_ID[5]` = General Medicine `APPOINTMENTS.DOCTOR_NAME[0]` = Sophia Bose `APPOINTMENTS.DOCTOR_NAME[1]` = Sara Nair `APPOINTMENTS.DOCTOR_NAME[2]` = Sara Nair `APPOINTMENTS.DOCTOR_NAME[3]` = Nikhil Mehta `APPOINTMENTS.DOCTOR_NAME[4]` = Lina Verma `APPOINTMENTS.DOCTOR_NAME[5]` = Maya Wilson `APPOINTMENTS.DURATION_MIN[0]` = 30 `APPOINTMENTS.DURATION_MIN[1]` = 30 `APPOINTMENTS.DURATION_MIN[2]` = 30 `APPOINTMENTS.DURATION_MIN[3]` = 30 `APPOINTMENTS.DURATION_MIN[4]` = 30 `APPOINTMENTS.DURATION_MIN[5]` = 30 `APPOINTMENTS.REASON[0]` = Hypertension follow-up `APPOINTMENTS.REASON[1]` = Chest pain `APPOINTMENTS.REASON[2]` = Chest pain `APPOINTMENTS.REASON[3]` = Shoulder stiffness `APPOINTMENTS.REASON[4]` = Ultrasound `APPOINTMENTS.REASON[5]` = Blood pressure review `APPOINTMENTS.STATUS[0]` = No-show `APPOINTMENTS.STATUS[1]` = Completed `APPOINTMENTS.STATUS[2]` = Completed `APPOINTMENTS.STATUS[3]` = Completed `APPOINTMENTS.STATUS[4]` = No-show `APPOINTMENTS.STATUS[5]` = Completed `CTL.PATIENT_NAME[0]` = Adam Ali (CW100686)
5	first row	`Click APPOINTMENTS.APPT_START[0]`	`APPOINTMENTS.APPT_START[0]`
6	new row	`Step {"label": "new row", "menu": "RECORDS.INSERT"}`	`APPOINTMENTS.DEPT_ID[1]`	`APPOINTMENTS.APPT_START[2]` = 30-JAN-2026 14:45 `APPOINTMENTS.APPT_START[3]` = 18-MAR-2026 09:30 `APPOINTMENTS.APPT_START[4]` = 24-MAR-2026 10:45 `APPOINTMENTS.APPT_START[5]` = 27-APR-2026 15:15 `APPOINTMENTS.DEPT_ID[3]` = Cardiology `APPOINTMENTS.DEPT_ID[4]` = Orthopedics `APPOINTMENTS.DEPT_ID[5]` = Diagnostics `APPOINTMENTS.DOCTOR_NAME[3]` = Sara Nair `APPOINTMENTS.DOCTOR_NAME[4]` = Nikhil Mehta `APPOINTMENTS.DOCTOR_NAME[5]` = Lina Verma `APPOINTMENTS.DURATION_MIN[1]` = 15 `APPOINTMENTS.REASON[3]` = Chest pain `APPOINTMENTS.REASON[4]` = Shoulder stiffness `APPOINTMENTS.REASON[5]` = Ultrasound `APPOINTMENTS.STATUS[1]` = Booked `APPOINTMENTS.STATUS[4]` = Completed `APPOINTMENTS.STATUS[5]` = No-show
7	department	`Step {"label": "department", "select": {"APPOINTMENTS.DEPT_ID[1]": "General Medicine"}}`	`APPOINTMENTS.DEPT_ID[1]`	`APPOINTMENTS.DEPT_ID[1]` = General Medicine
8	doctor	`List of values on APPOINTMENTS.DOCTOR_NAME[1], pick Doctor = Kavya Pillai`	`APPOINTMENTS.DOCTOR_NAME[1]`	`APPOINTMENTS.DOCTOR_NAME[1]` = Kavya Pillai
9		`Type APPOINTMENTS.APPT_START[1] = 26-OCT-2026 13:40`	`APPOINTMENTS.APPT_START[1]`	`APPOINTMENTS.APPT_START[1]` = 26-OCT-2026 13:40
10	save	`Click Toolbar.Save`	`APPOINTMENTS.DEPT_ID[1]`		Dr Kavya Pillai already has appointment 51140 at that time.

Database effects

None: the scenario changes no row and draws no sequence value.

Classified diff against the migrated app

Diff: appointments-double-booking
counts: match 838, tolerated 28, waived 11, defect 0, unmapped 0, harness 0
generated-id pairs (source -> target): none

waivers:
  C1 [proposed] Oracle's frame title before sign-in: applied to 2 value(s)
  C2 [proposed] The home page's collected-today gauge reads empty: applied to 9 value(s)
  C3 [proposed] Help > About names nobody: applied to 0 value(s)
  C4 [proposed] The home page forgets the user after File > Exit of a module: applied to 0 value(s)
  C5 [proposed] No item has the focus after a fetched record is refused: applied to 0 value(s)
  C6 [proposed] The second payment of billing-pay is lost: applied to 0 value(s)

[tolerated] ui.values.APPOINTMENTS.DEPT_ID  rule=text  x1
[tolerated] ui.values.HOME.CHECKED_IN  rule=mask:today-counts  x9
[tolerated] ui.values.HOME.OPEN_AMOUNT  rule=text  x9
[tolerated] ui.values.HOME.TODAY_TOTAL  rule=mask:today-counts  x9
[waived] ui.values.HOME.COLLECTED  rule=waiver:C2  x9
    step02.values.HOME.COLLECTED[0]: source '' | target '83'
    step03.values.HOME.COLLECTED[0]: source '' | target '83'
    step04.values.HOME.COLLECTED[0]: source '' | target '83'
    step05.values.HOME.COLLECTED[0]: source '' | target '83'
    step06.values.HOME.COLLECTED[0]: source '' | target '83'
    step07.values.HOME.COLLECTED[0]: source '' | target '83'
    step08.values.HOME.COLLECTED[0]: source '' | target '83'
    step09.values.HOME.COLLECTED[0]: source '' | target '83'
    step10.values.HOME.COLLECTED[0]: source '' | target '83'
[waived] ui.windows  rule=waiver:C1  x2
    step00.windows: source [["FRAME", "Oracle Fusion Middleware Forms Services"], ["MAIN_WIN",... | target [["FRAME", "CareWell Clinic"], ["MAIN_WIN", "CareWell Clinic - Sign...
    step01.windows: source [["FRAME", "Oracle Fusion Middleware Forms Services"], ["MAIN_WIN",... | target [["FRAME", "CareWell Clinic"], ["MAIN_WIN", "CareWell Clinic - Sign...

Waivers

Id	Waiver	Values	Reason
C1	Oracle's frame title before sign-in	2	Until CW_NAV.START_FORM sets the MDI title, the Forms frame shows the runtime's own title "Oracle Fusion Middleware Forms Services". The target's frame reads "CareWell Clinic" from the start: the web page is the clinic's application, not Oracle's runtime. From sign-in on, both show the same title.
C2	The home page's collected-today gauge reads empty	9	HOME.COLLECTED is a display item drawn as a half gauge on the original canvas; the Forms client's component tree exposes no text for it, so the source records '' at every step. The target shows the amount REFRESH_HOME computes (the same query as the source), as a number with a bar.
