appointments-no-patient

Clinic > Appointments from the home page, before any patient was chosen: LOAD_PATIENT finds no current patient (CW_CTX.PATIENT_ID) and says "Choose a patient in Patients first."

0defects

76values match

17tolerated by policy

4waived

0unmapped

Three runs from a fresh database gave byte-identical diffs. Behaviour that looks odd in the migrated app but is the original's: faithful to the original and waivers. Files: scenario, golden record, target record, diff (JSON).

Scenario steps

Items are addressed by their Forms name (BLOCK.ITEM[row]), the same name in the original and, through the mapping, in the migrated app.

#	Step	Action
0		Open form `cw_login`
1		Type `CTL.USERNAME` = ADMIN
2	sign in	Click `CTL.SIGN_IN`
3	appointments	Step {"label": "appointments", "menu": "CLINIC.APPOINTMENTS"}

Screens, step by step

Left: the original Oracle Forms application, recorded on a virtual display. Right: the migrated application in headless Chromium. Screenshots are evidence only; the comparison works on the recorded values.

No step screenshots of the original were kept for this app; the comparison uses the recorded values, which are in the golden record below.

Step 0: open cw_login

no screenshot

Original (Oracle Forms 14.1.2)

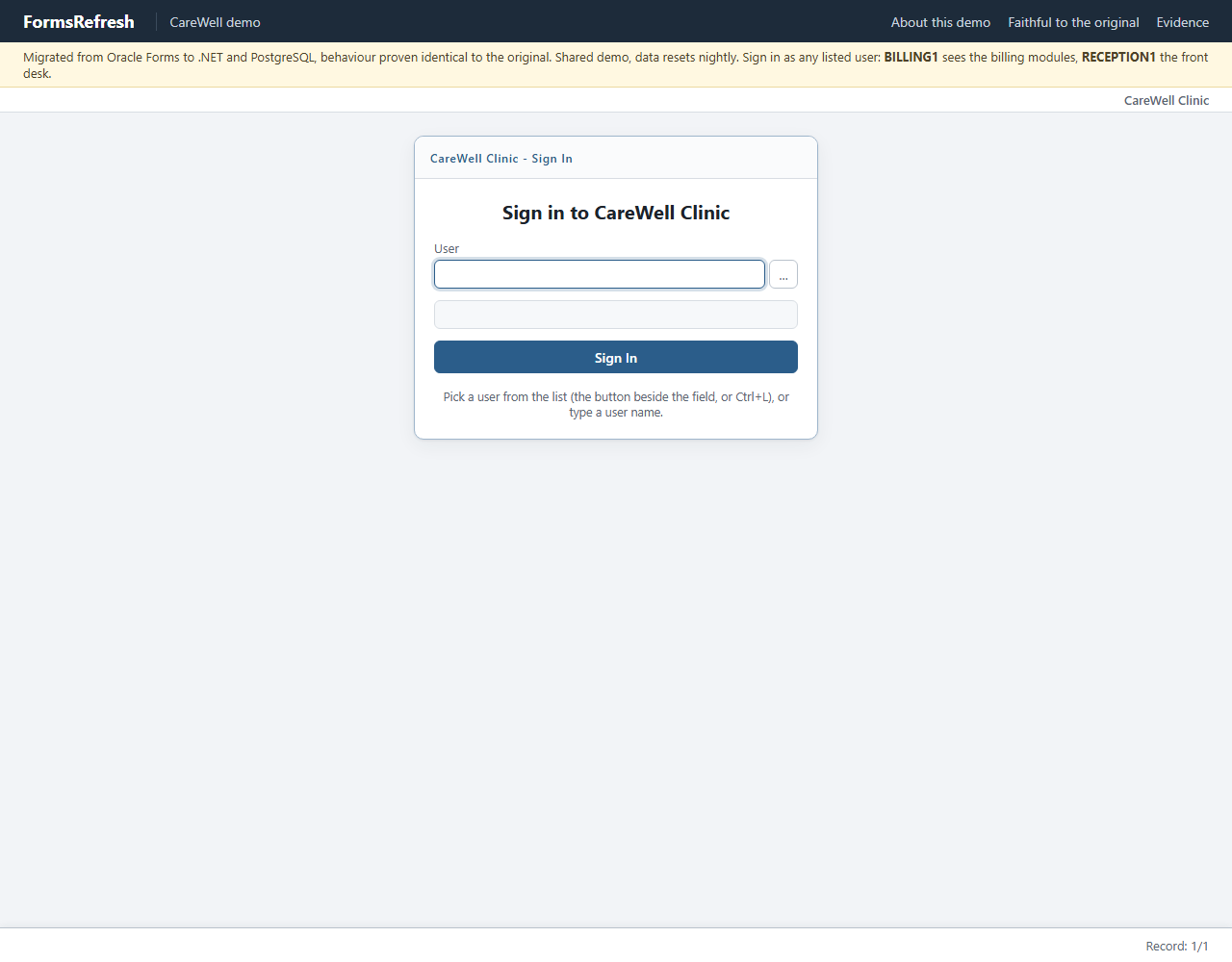

Migrated (.NET, PostgreSQL), step 00-open — Migrated (.NET, PostgreSQL)

Step 1: type

no screenshot

Original (Oracle Forms 14.1.2)

Migrated (.NET, PostgreSQL), step 01-type — Migrated (.NET, PostgreSQL)

Step 2: sign in

no screenshot

Original (Oracle Forms 14.1.2)

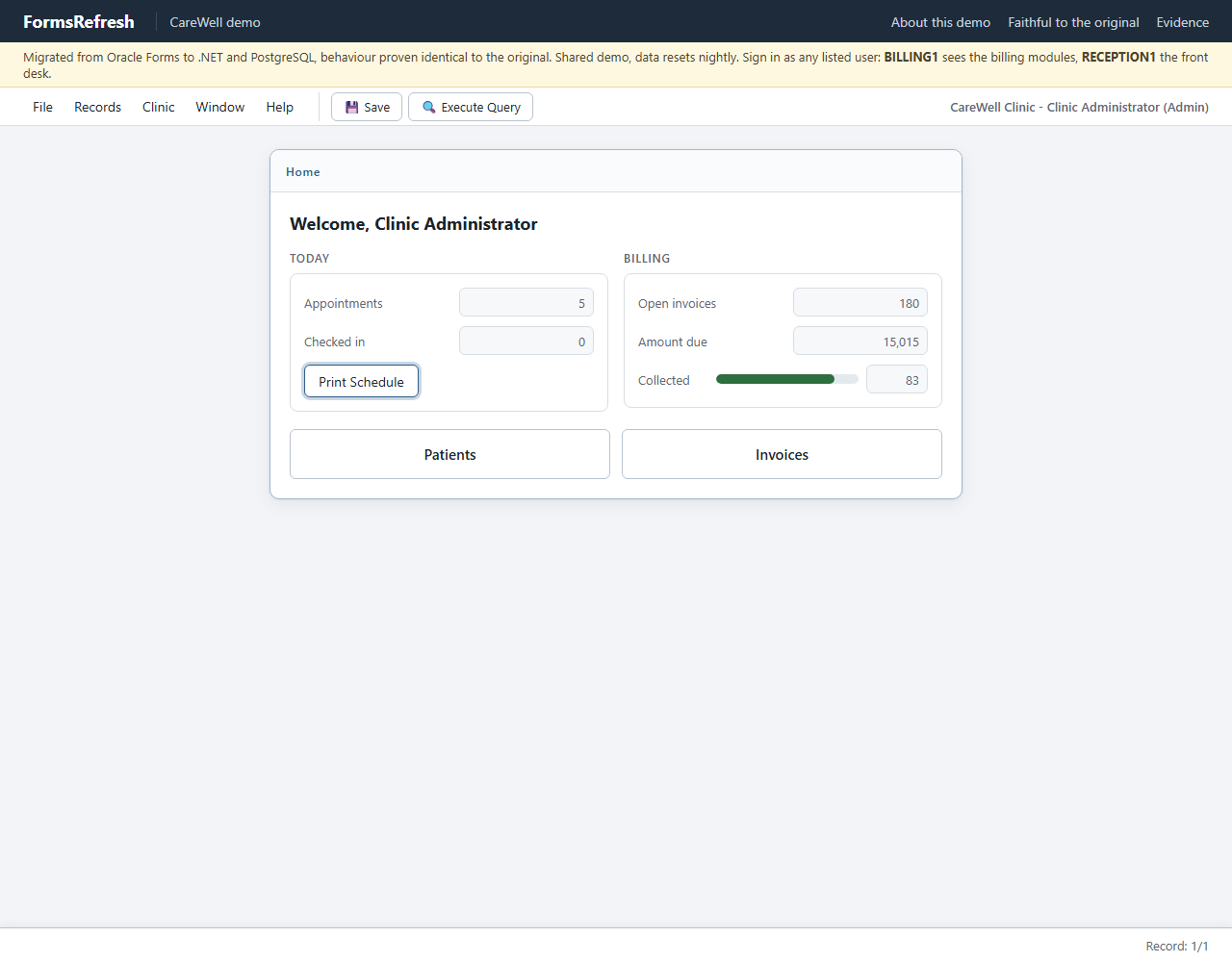

Migrated (.NET, PostgreSQL), step 02-sign-in — Migrated (.NET, PostgreSQL)

Step 3: appointments

no screenshot

Original (Oracle Forms 14.1.2)

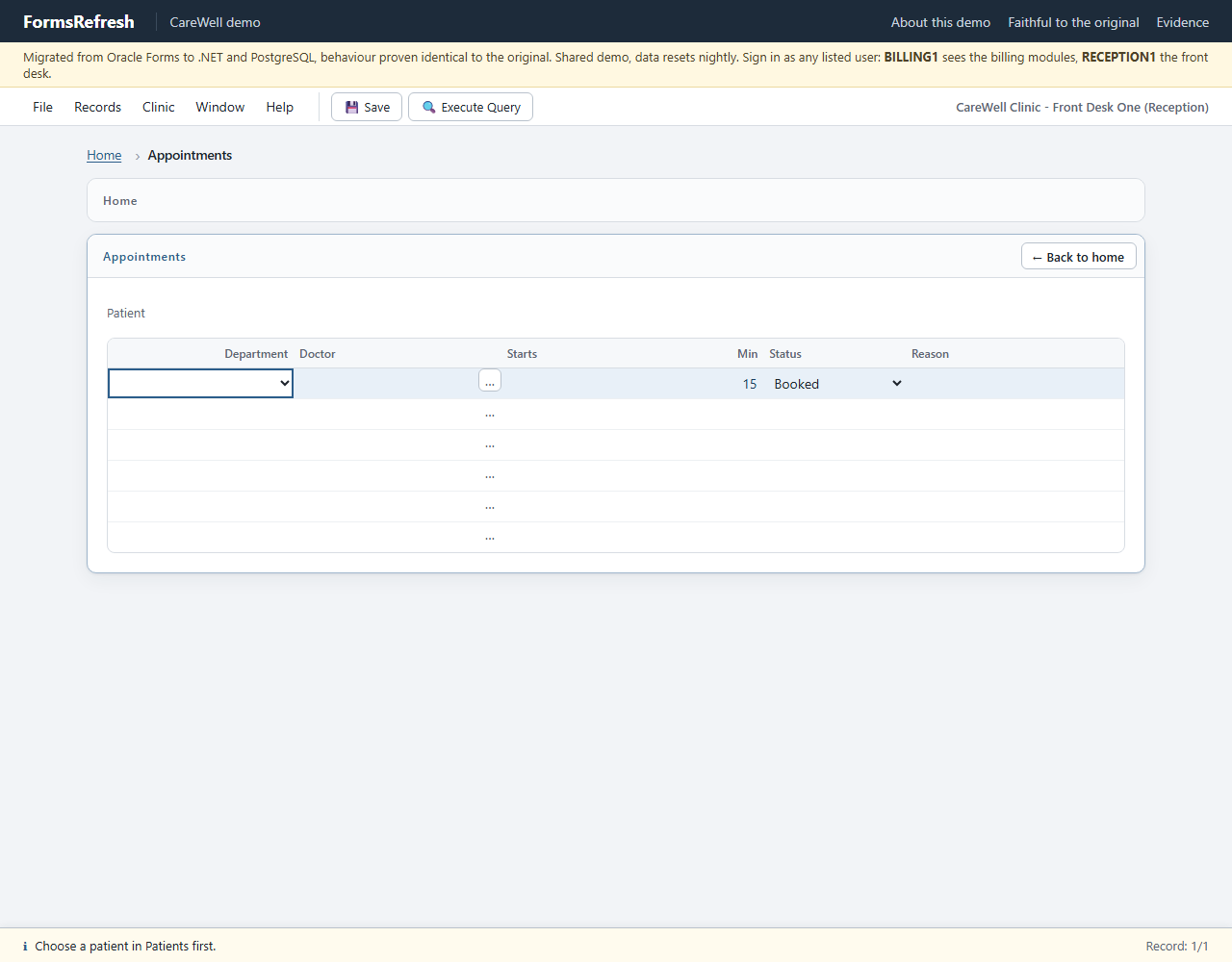

Migrated (.NET, PostgreSQL), step 03-appointments — Migrated (.NET, PostgreSQL)

Golden record of the original

After each step: the focus, the displayed values that changed, the message line and any alert. The full record (every item of every step, windows, lists of values) is in the JSON file.

#	Step	Action (by name)	Focus after	Displayed values that changed	Message line
0		`Open form cw_login`	`CTL.USERNAME[0]`
1		`Type CTL.USERNAME = ADMIN`	`CTL.USERNAME[0]`	`CTL.USERNAME[0]` = ADMIN
2	sign in	`Click CTL.SIGN_IN`	`HOME.SCHEDULE[0]`	`HOME.CHECKED_IN[0]` = <any> `HOME.OPEN_AMOUNT[0]` = 15,015 `HOME.OPEN_INVOICES[0]` = 180 `HOME.TODAY_TOTAL[0]` = <any> `HOME.WELCOME[0]` = Welcome, Clinic Administrator
3	appointments	`Step {"label": "appointments", "menu": "CLINIC.APPOINTMENTS"}`	`APPOINTMENTS.DEPT_ID[0]`	`APPOINTMENTS.DURATION_MIN[0]` = 15 `APPOINTMENTS.STATUS[0]` = Booked	Choose a patient in Patients first.

Database effects

None: the scenario changes no row and draws no sequence value.

Classified diff against the migrated app

Diff: appointments-no-patient
counts: match 76, tolerated 17, waived 4, defect 0, unmapped 0, harness 0
generated-id pairs (source -> target): none

waivers:
  C1 [proposed] Oracle's frame title before sign-in: applied to 2 value(s)
  C2 [proposed] The home page's collected-today gauge reads empty: applied to 2 value(s)
  C3 [proposed] Help > About names nobody: applied to 0 value(s)
  C4 [proposed] The home page forgets the user after File > Exit of a module: applied to 0 value(s)
  C5 [proposed] No item has the focus after a fetched record is refused: applied to 0 value(s)
  C6 [proposed] The second payment of billing-pay is lost: applied to 0 value(s)

[tolerated] ui.values.APPOINTMENTS.DEPT_ID  rule=text  x6
[tolerated] ui.values.APPOINTMENTS.STATUS  rule=text  x5
[tolerated] ui.values.HOME.CHECKED_IN  rule=mask:today-counts  x2
[tolerated] ui.values.HOME.OPEN_AMOUNT  rule=text  x2
[tolerated] ui.values.HOME.TODAY_TOTAL  rule=mask:today-counts  x2
[waived] ui.values.HOME.COLLECTED  rule=waiver:C2  x2
    step02.values.HOME.COLLECTED[0]: source '' | target '83'
    step03.values.HOME.COLLECTED[0]: source '' | target '83'
[waived] ui.windows  rule=waiver:C1  x2
    step00.windows: source [["FRAME", "Oracle Fusion Middleware Forms Services"], ["MAIN_WIN",... | target [["FRAME", "CareWell Clinic"], ["MAIN_WIN", "CareWell Clinic - Sign...
    step01.windows: source [["FRAME", "Oracle Fusion Middleware Forms Services"], ["MAIN_WIN",... | target [["FRAME", "CareWell Clinic"], ["MAIN_WIN", "CareWell Clinic - Sign...

Waivers

Id	Waiver	Values	Reason
C1	Oracle's frame title before sign-in	2	Until CW_NAV.START_FORM sets the MDI title, the Forms frame shows the runtime's own title "Oracle Fusion Middleware Forms Services". The target's frame reads "CareWell Clinic" from the start: the web page is the clinic's application, not Oracle's runtime. From sign-in on, both show the same title.
C2	The home page's collected-today gauge reads empty	2	HOME.COLLECTED is a display item drawn as a half gauge on the original canvas; the Forms client's component tree exposes no text for it, so the source records '' at every step. The target shows the amount REFRESH_HOME computes (the same query as the source), as a number with a bar.
