CareWell clinic / billing-pay

billing-pay

Pay two invoices. The home page's Invoices button opens CW_BILLING without a patient: LOAD_INVOICES shows the invoices still to be paid. Choosing invoice 3850 (open, 75) coordinates its lines and payments (ON-CLEAR-DETAILS, ON-POPULATE-DETAILS, QUERY_MASTER_DETAILS). A payment of 30 (PAID_ON defaults to today, $$DATE$$) is saved with File > Save, which runs the form's KEY-COMMIT: PRE-INSERT takes the sequence, POST-INSERT sets the invoice PARTIAL, and the list is queried again. Invoice 3852 (partial, 42.50 of 85 paid) gets the remaining 42.50 (a click into a new row lands on its first item, PAID_ON, so AMOUNT is clicked twice): POST-INSERT sets it PAID and the new query no longer lists it.

0defects

466values match

148tolerated by policy

54waived

0unmapped

Three runs from a fresh database gave byte-identical diffs. Behaviour that looks odd in the migrated app but is the original's: faithful to the original and waivers. Files: scenario, golden record, target record, diff (JSON).

Scenario steps

Items are addressed by their Forms name (BLOCK.ITEM[row]), the same name in the original and, through the mapping, in the migrated app.

#	Step	Action	Checked on the original
0		Open form `cw_login`
1		Type `CTL.USERNAME` = ADMIN
2	sign in	Click `CTL.SIGN_IN`
3	invoices	Click `HOME.INVOICES`
4	open invoice	Click `INVOICES.INVOICE_ID[1]`
5		Type `PAYMENTS.AMOUNT[0]` = 30
6	save part payment	Click `Toolbar.Save`
7	partial invoice	Click `INVOICES.INVOICE_ID[0]`
8	new payment row	Click `PAYMENTS.AMOUNT[1]`
9		Type `PAYMENTS.AMOUNT[1]` = 42.5
10	leave the amount	Press `Tab`
11	save final payment	Click `Toolbar.Save`

Screens, step by step

Left: the original Oracle Forms application, recorded on a virtual display. Right: the migrated application in headless Chromium. Screenshots are evidence only; the comparison works on the recorded values.

No step screenshots of the original were kept for this app; the comparison uses the recorded values, which are in the golden record below.

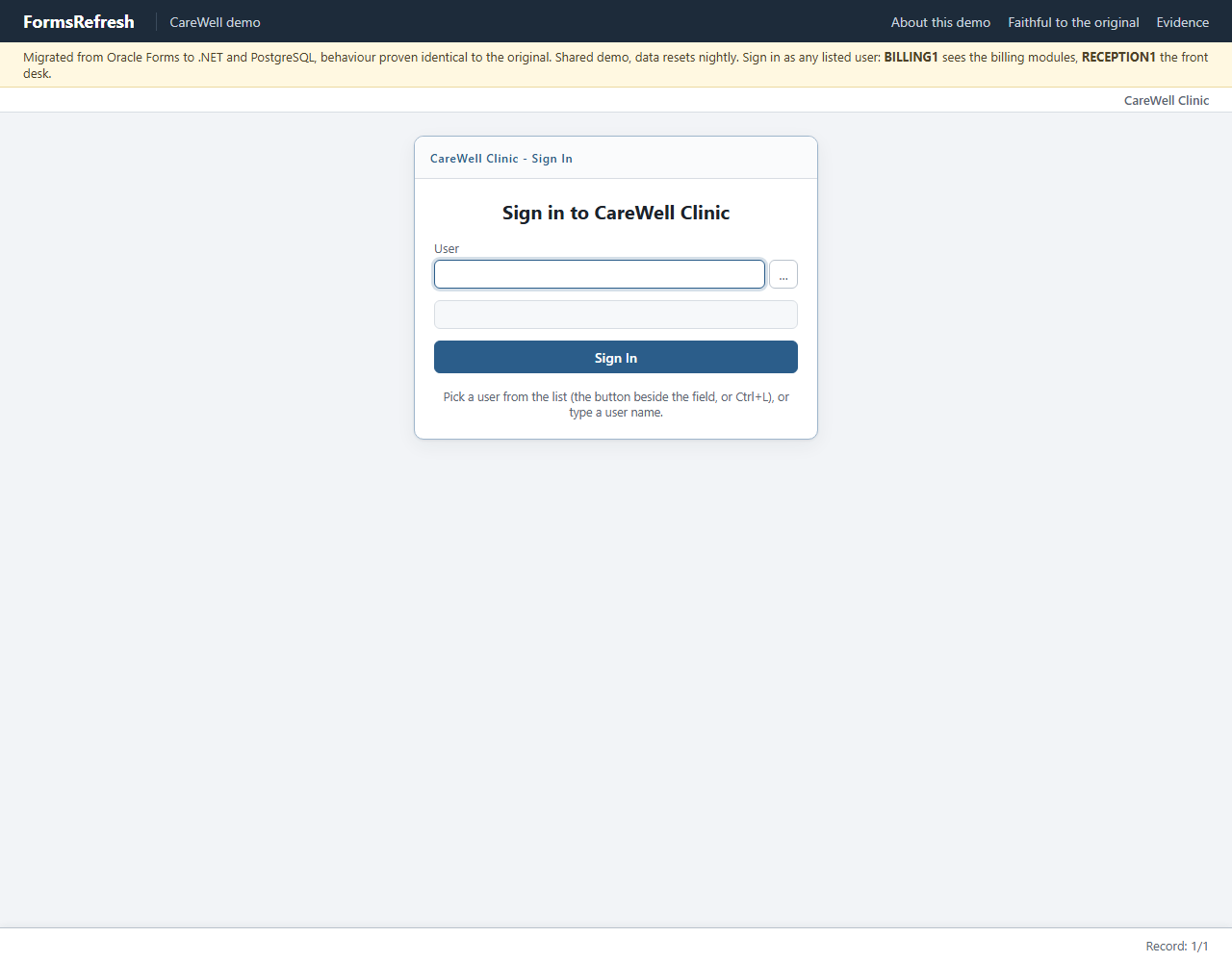

Step 0: open cw_login

no screenshot

Original (Oracle Forms 14.1.2)

Migrated (.NET, PostgreSQL), step 00-open — Migrated (.NET, PostgreSQL)

Step 1: type

no screenshot

Original (Oracle Forms 14.1.2)

Migrated (.NET, PostgreSQL), step 01-type — Migrated (.NET, PostgreSQL)

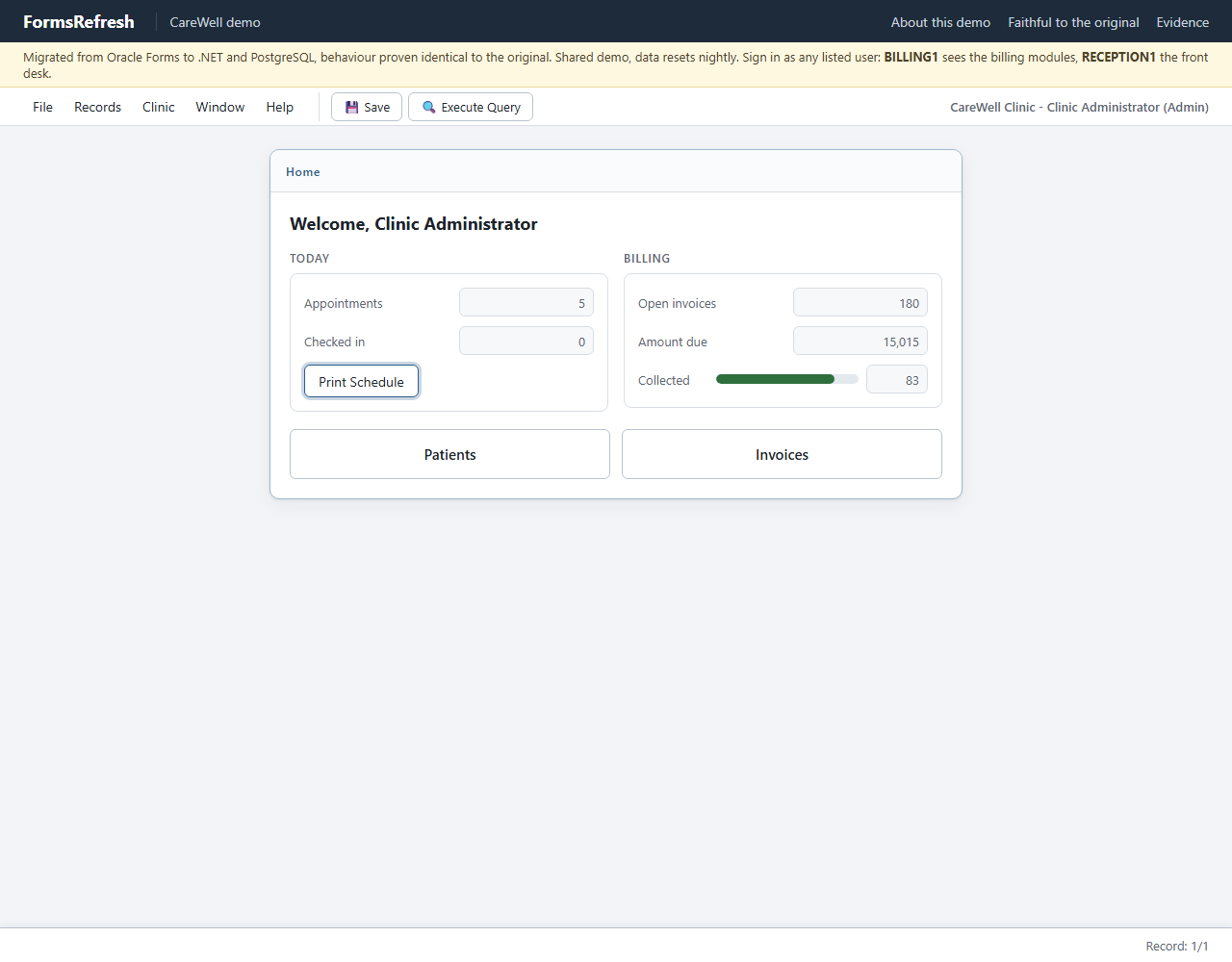

Step 2: sign in

no screenshot

Original (Oracle Forms 14.1.2)

Migrated (.NET, PostgreSQL), step 02-sign-in — Migrated (.NET, PostgreSQL)

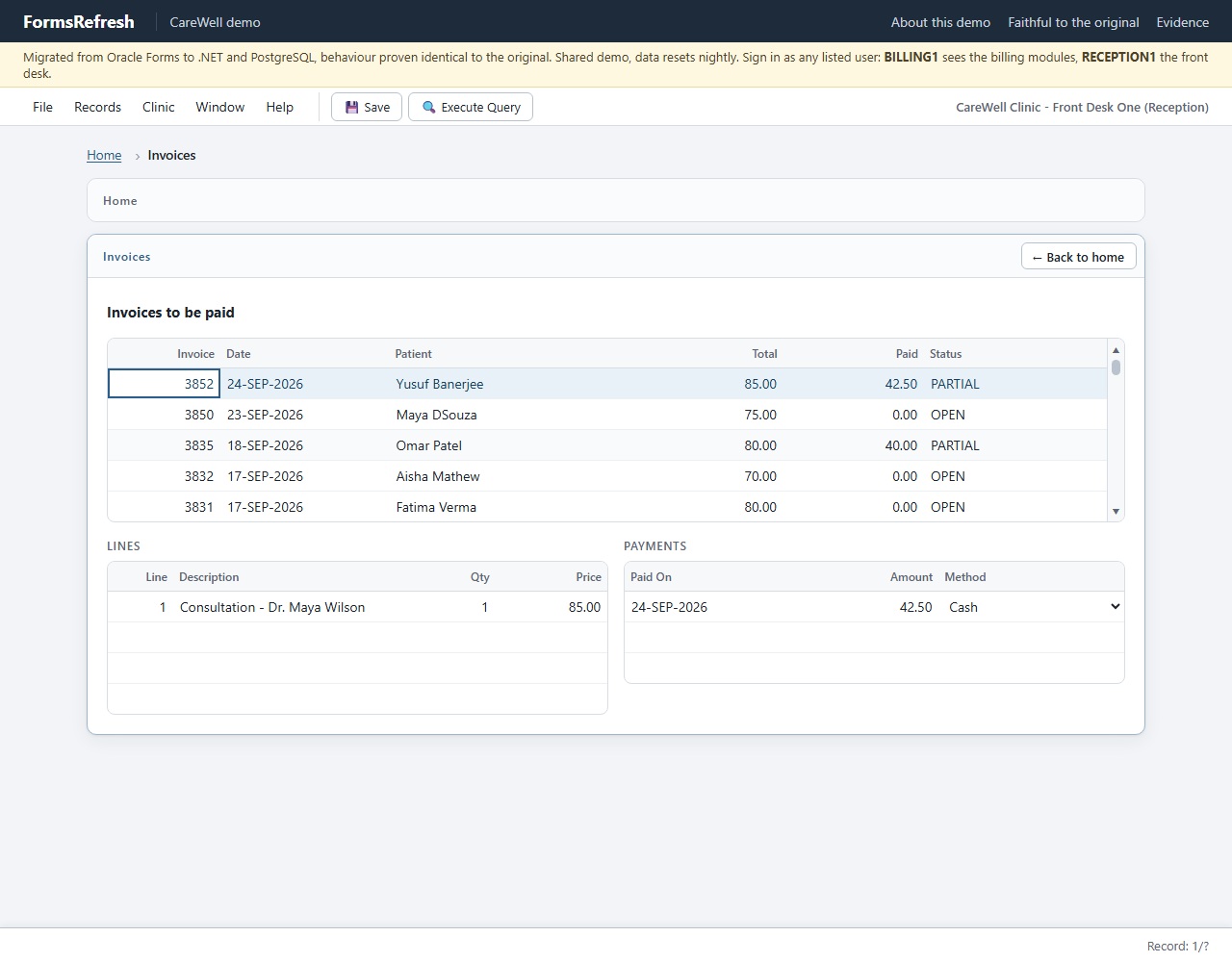

Step 3: invoices

no screenshot

Original (Oracle Forms 14.1.2)

Migrated (.NET, PostgreSQL), step 03-invoices — Migrated (.NET, PostgreSQL)

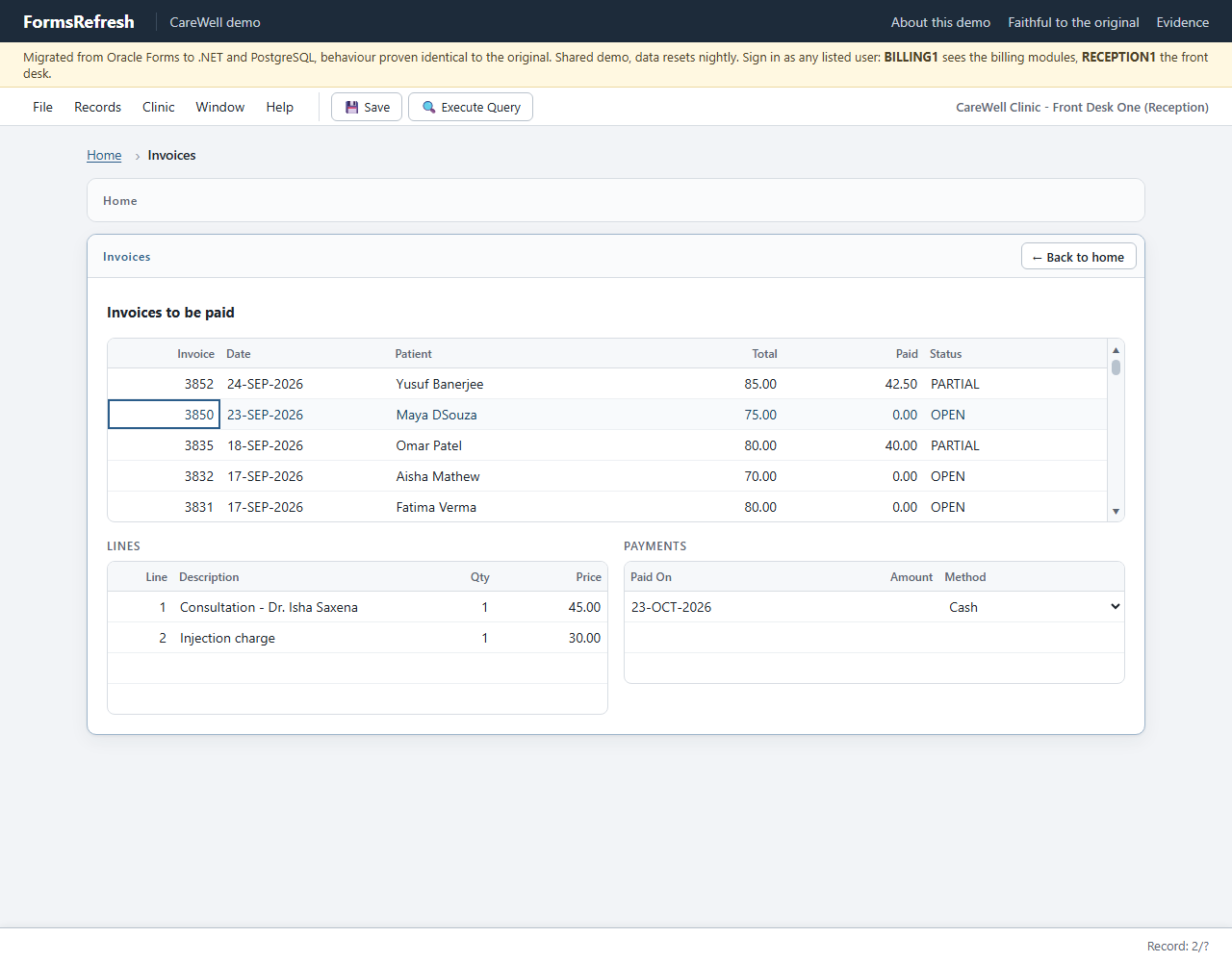

Step 4: open invoice

no screenshot

Original (Oracle Forms 14.1.2)

Migrated (.NET, PostgreSQL), step 04-open-invoice — Migrated (.NET, PostgreSQL)

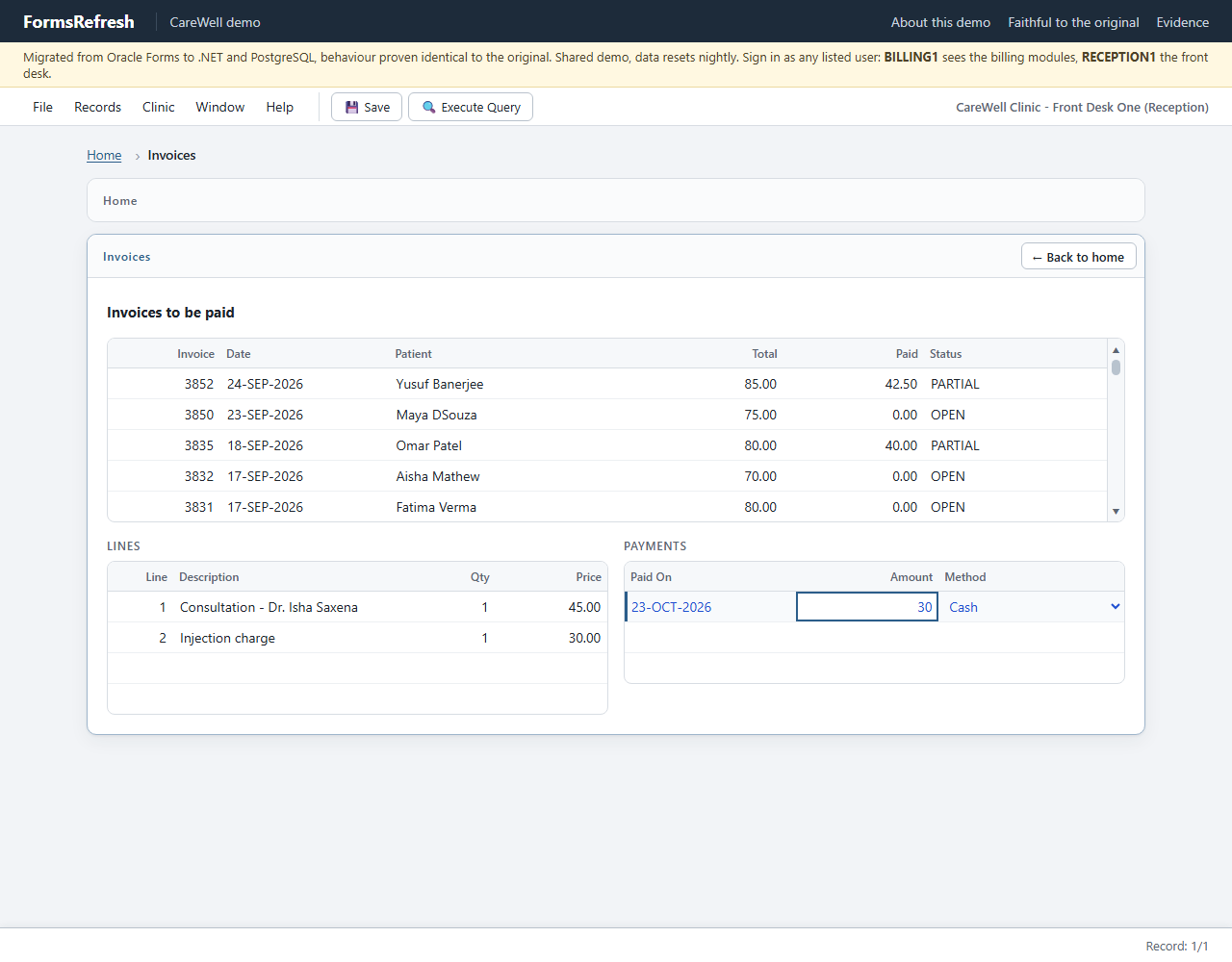

Step 5: type

no screenshot

Original (Oracle Forms 14.1.2)

Migrated (.NET, PostgreSQL), step 05-type — Migrated (.NET, PostgreSQL)

Step 6: save part payment

no screenshot

Original (Oracle Forms 14.1.2)

Migrated (.NET, PostgreSQL), step 06-save-part-payment — Migrated (.NET, PostgreSQL)

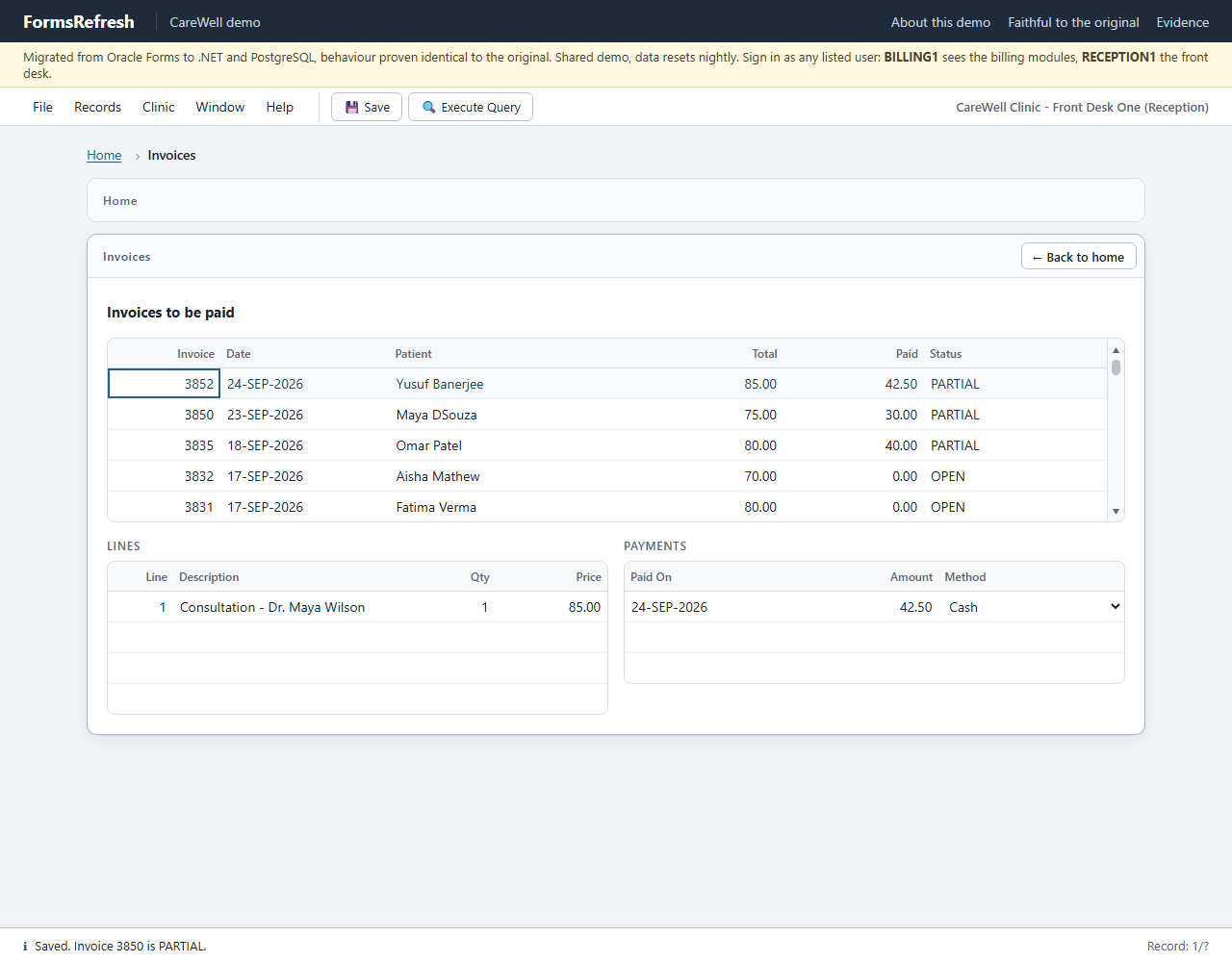

Step 7: partial invoice

no screenshot

Original (Oracle Forms 14.1.2)

Migrated (.NET, PostgreSQL), step 07-partial-invoice — Migrated (.NET, PostgreSQL)

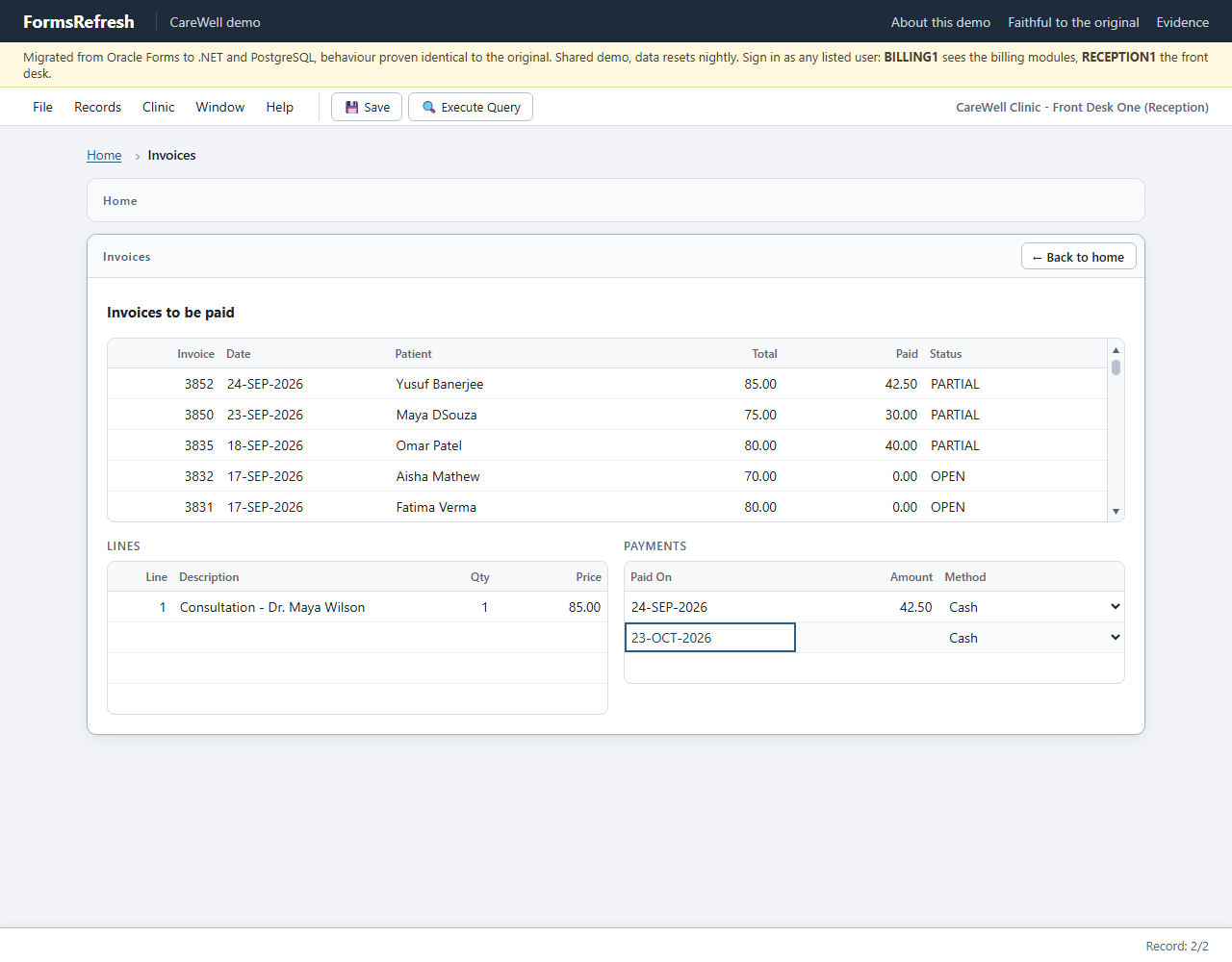

Step 8: new payment row

no screenshot

Original (Oracle Forms 14.1.2)

Migrated (.NET, PostgreSQL), step 08-new-payment-row — Migrated (.NET, PostgreSQL)

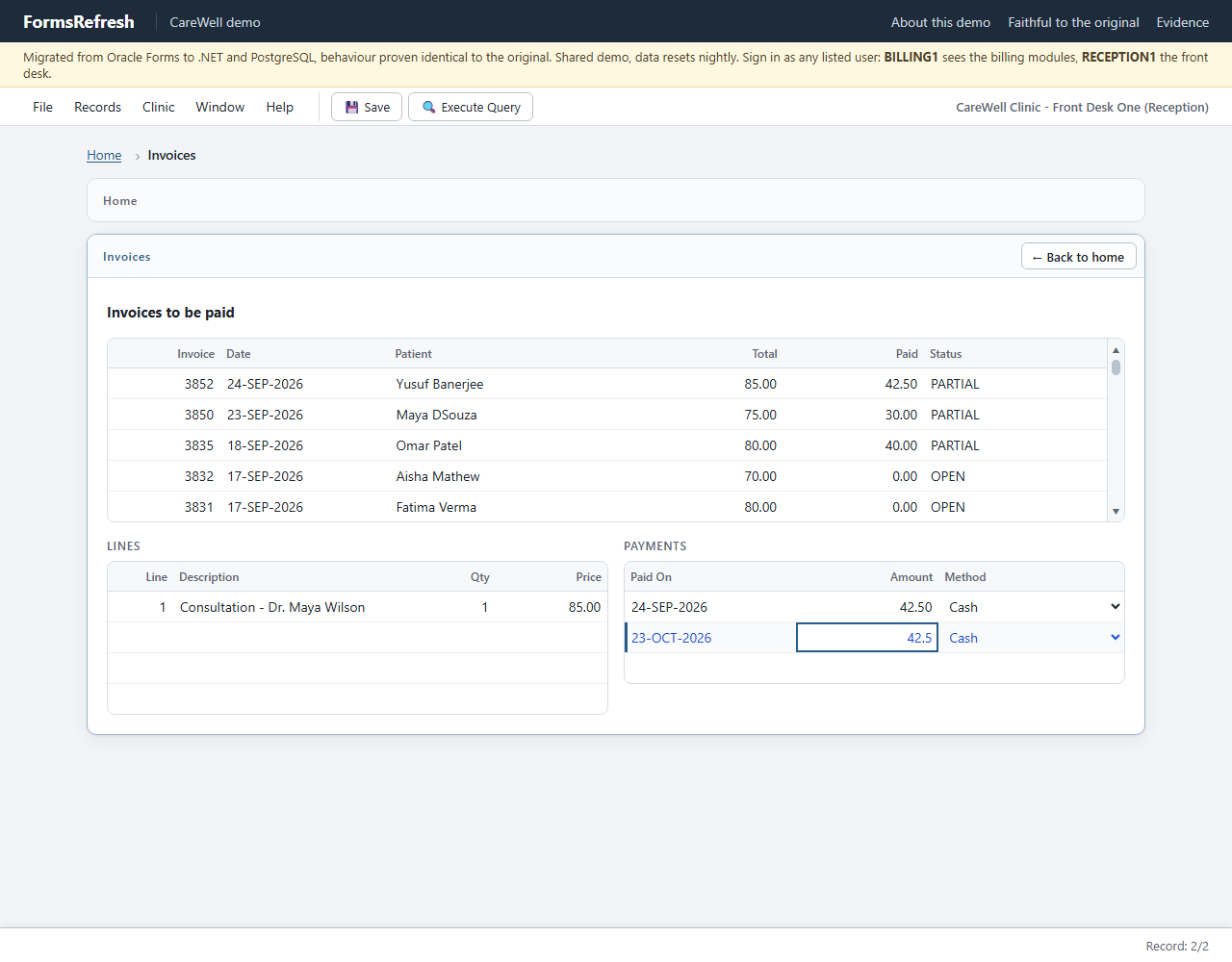

Step 9: type

no screenshot

Original (Oracle Forms 14.1.2)

Migrated (.NET, PostgreSQL), step 09-type — Migrated (.NET, PostgreSQL)

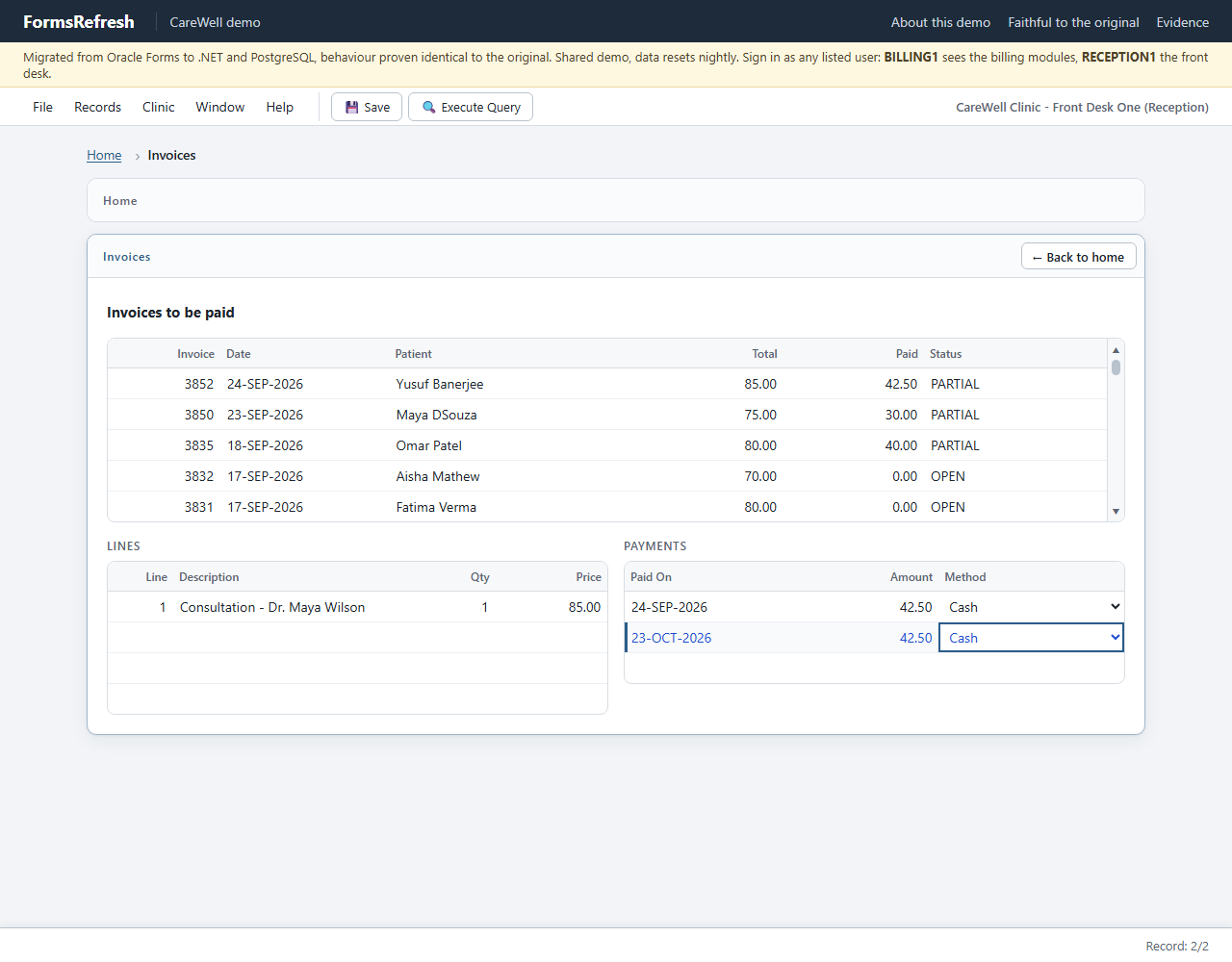

Step 10: leave the amount

no screenshot

Original (Oracle Forms 14.1.2)

Migrated (.NET, PostgreSQL), step 10-leave-the-amount — Migrated (.NET, PostgreSQL)

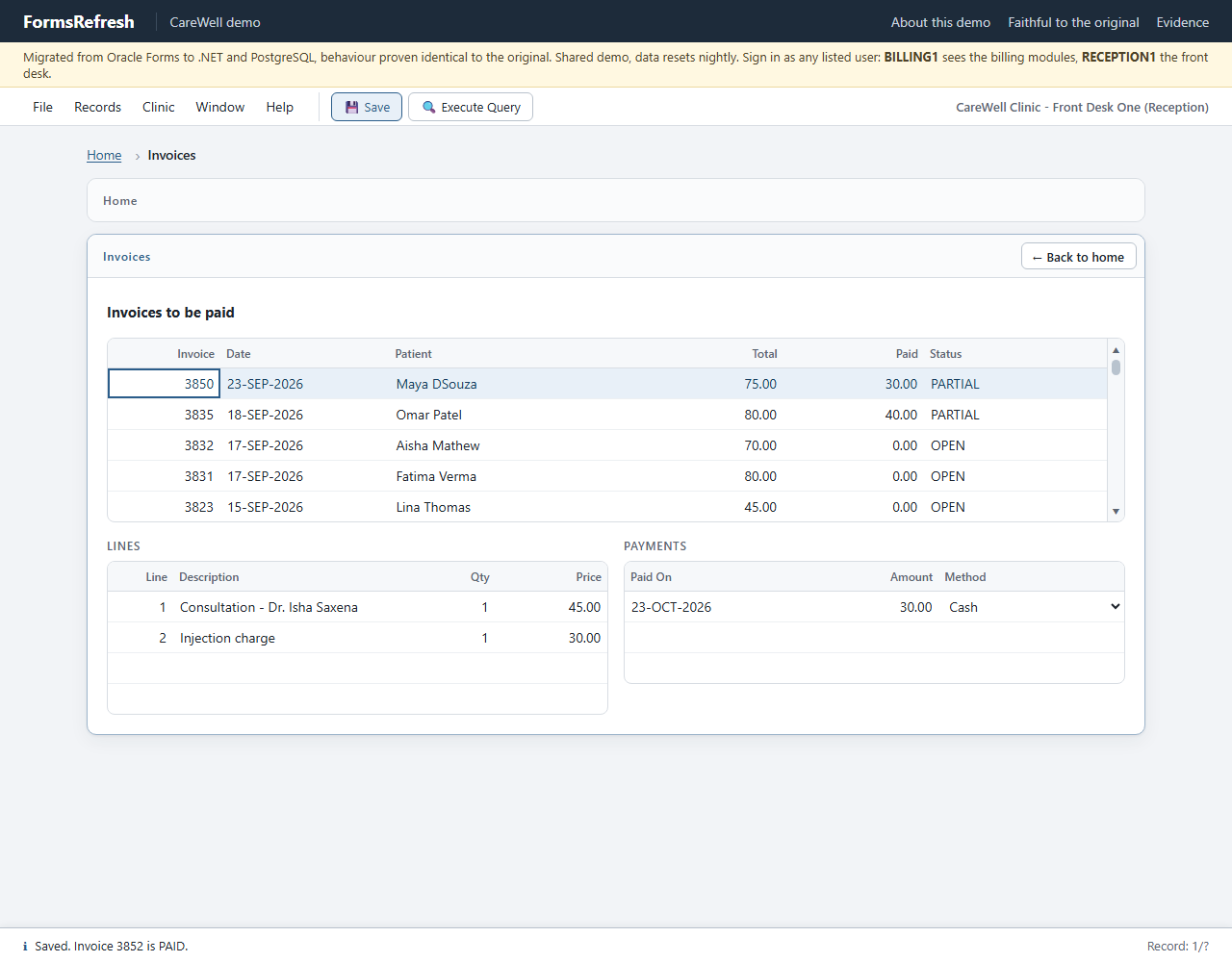

Step 11: save final payment

no screenshot

Original (Oracle Forms 14.1.2)

Migrated (.NET, PostgreSQL), step 11-save-final-payment — Migrated (.NET, PostgreSQL)

Golden record of the original

After each step: the focus, the displayed values that changed, the message line and any alert. The full record (every item of every step, windows, lists of values) is in the JSON file.

#	Step	Action (by name)	Focus after	Displayed values that changed	Message line	Alert	Expect
0		`Open form cw_login`	`CTL.USERNAME[0]`
1		`Type CTL.USERNAME = ADMIN`	`CTL.USERNAME[0]`	`CTL.USERNAME[0]` = ADMIN
2	sign in	`Click CTL.SIGN_IN`	`HOME.SCHEDULE[0]`	`HOME.CHECKED_IN[0]` = <any> `HOME.OPEN_AMOUNT[0]` = 15,015 `HOME.OPEN_INVOICES[0]` = 180 `HOME.TODAY_TOTAL[0]` = <any> `HOME.WELCOME[0]` = Welcome, Clinic Administrator
3	invoices	`Click HOME.INVOICES`	`INVOICES.INVOICE_ID[0]`	`CTL.SHOWING[0]` = Invoices to be paid `INVOICES.INVOICE_DATE[0]` = 24-SEP-2026 `INVOICES.INVOICE_DATE[1]` = 23-SEP-2026 `INVOICES.INVOICE_DATE[2]` = 18-SEP-2026 `INVOICES.INVOICE_DATE[3]` = 17-SEP-2026 `INVOICES.INVOICE_DATE[4]` = 17-SEP-2026 `INVOICES.INVOICE_ID[0]` = 3852 `INVOICES.INVOICE_ID[1]` = 3850 `INVOICES.INVOICE_ID[2]` = 3835 `INVOICES.INVOICE_ID[3]` = 3832 `INVOICES.INVOICE_ID[4]` = 3831 `INVOICES.PAID[0]` = 42.50 `INVOICES.PAID[1]` = 0.00 `INVOICES.PAID[2]` = 40.00 `INVOICES.PAID[3]` = 0.00 `INVOICES.PAID[4]` = 0.00 `INVOICES.PATIENT_NAME[0]` = Yusuf Banerjee `INVOICES.PATIENT_NAME[1]` = Maya DSouza `INVOICES.PATIENT_NAME[2]` = Omar Patel `INVOICES.PATIENT_NAME[3]` = Aisha Mathew `INVOICES.PATIENT_NAME[4]` = Fatima Verma `INVOICES.STATUS[0]` = PARTIAL `INVOICES.STATUS[1]` = OPEN `INVOICES.STATUS[2]` = PARTIAL `INVOICES.STATUS[3]` = OPEN `INVOICES.STATUS[4]` = OPEN `INVOICES.TOTAL_AMOUNT[0]` = 85.00 `INVOICES.TOTAL_AMOUNT[1]` = 75.00 `INVOICES.TOTAL_AMOUNT[2]` = 80.00 `INVOICES.TOTAL_AMOUNT[3]` = 70.00 `INVOICES.TOTAL_AMOUNT[4]` = 80.00 `INVOICE_LINES.DESCRIPTION[0]` = Consultation - Dr. Maya Wilson `INVOICE_LINES.LINE_NO[0]` = 1 `INVOICE_LINES.QUANTITY[0]` = 1 `INVOICE_LINES.UNIT_PRICE[0]` = 85.00 `PAYMENTS.AMOUNT[0]` = 42.50 `PAYMENTS.METHOD[0]` = Cash `PAYMENTS.PAID_ON[0]` = 24-SEP-2026
4	open invoice	`Click INVOICES.INVOICE_ID[1]`	`INVOICES.INVOICE_ID[1]`	`INVOICE_LINES.DESCRIPTION[0]` = Consultation - Dr. Isha Saxena `INVOICE_LINES.DESCRIPTION[1]` = Injection charge `INVOICE_LINES.LINE_NO[1]` = 2 `INVOICE_LINES.QUANTITY[1]` = 1 `INVOICE_LINES.UNIT_PRICE[0]` = 45.00 `INVOICE_LINES.UNIT_PRICE[1]` = 30.00 `PAYMENTS.PAID_ON[0]` = <date>
5		`Type PAYMENTS.AMOUNT[0] = 30`	`PAYMENTS.AMOUNT[0]`	`PAYMENTS.AMOUNT[0]` = 30
6	save part payment	`Click Toolbar.Save`	`INVOICES.INVOICE_ID[0]`	`INVOICES.PAID[1]` = 30.00 `INVOICES.STATUS[1]` = PARTIAL `INVOICE_LINES.DESCRIPTION[0]` = Consultation - Dr. Maya Wilson `INVOICE_LINES.UNIT_PRICE[0]` = 85.00 `PAYMENTS.AMOUNT[0]` = 42.50 `PAYMENTS.PAID_ON[0]` = 24-SEP-2026	Saved. Invoice 3850 is PARTIAL.
7	partial invoice	`Click INVOICES.INVOICE_ID[0]`	`INVOICES.INVOICE_ID[0]`		Saved. Invoice 3850 is PARTIAL.
8	new payment row	`Click PAYMENTS.AMOUNT[1]`	`PAYMENTS.PAID_ON[1]`	`PAYMENTS.METHOD[1]` = Cash `PAYMENTS.PAID_ON[1]` = <date>
9		`Type PAYMENTS.AMOUNT[1] = 42.5`	`PAYMENTS.AMOUNT[1]`	`PAYMENTS.AMOUNT[1]` = 42.5
10	leave the amount	`Press Tab`	`PAYMENTS.METHOD[1]`	`PAYMENTS.AMOUNT[1]` = 42.50	Amount Required 42.50
11	save final payment	`Click Toolbar.Save`	`FWindow/PushButton:OK`		FRM-40401: No changes to save.	FRM-40401: No changes to save.

Database effects

INVOICES updated: {"key": {"INVOICE_ID": 3850}, "changed": {"STATUS": {"before": "OPEN", "after": "PARTIAL"}}}
PAYMENTS inserted: {"PAYMENT_ID": 6733, "INVOICE_ID": 3850, "PAID_ON": "<date>", "AMOUNT": 30, "METHOD": "CASH"}
sequence PAYMENTS_SEQ: next 6733 -> 6735, drawn [6733, 6734]
generated: PAYMENTS.PAYMENT_ID = 6733 is PAYMENTS_SEQ#1

Classified diff against the migrated app

Diff: billing-pay
counts: match 466, tolerated 148, waived 54, defect 0, unmapped 0, harness 0
generated-id pairs (source -> target): PAYMENTS_SEQ#1 -> PAYMENTS_SEQ#1

waivers:
  C1 [proposed] Oracle's frame title before sign-in: applied to 2 value(s)
  C2 [proposed] The home page's collected-today gauge reads empty: applied to 10 value(s)
  C3 [proposed] Help > About names nobody: applied to 0 value(s)
  C4 [proposed] The home page forgets the user after File > Exit of a module: applied to 0 value(s)
  C5 [proposed] No item has the focus after a fetched record is refused: applied to 0 value(s)
  C6 [proposed] The second payment of billing-pay is lost: applied to 42 value(s)

[tolerated] ui.values.HOME.CHECKED_IN  rule=mask:today-counts  x10
[tolerated] ui.values.HOME.OPEN_AMOUNT  rule=text  x10
[tolerated] ui.values.HOME.TODAY_TOTAL  rule=mask:today-counts  x10
[tolerated] ui.values.INVOICES.PAID  rule=text  x42
[tolerated] ui.values.INVOICES.TOTAL_AMOUNT  rule=text  x40
[tolerated] ui.values.INVOICE_LINES.UNIT_PRICE  rule=text  x10
[tolerated] ui.values.PAYMENTS.AMOUNT  rule=text  x7
[tolerated] ui.values.PAYMENTS.METHOD  rule=text  x14
[tolerated] ui.values.PAYMENTS.PAID_ON  rule=mask:payment-date  x5
[waived] db.INVOICES.updated  rule=waiver:C6  (update only in the target)  x1
    db.INVOICES.updated[3852]: source null | target {"key": {"INVOICE_ID": 3852}, "changed": {"STATUS": {"after": "PAID...
[waived] db.PAYMENTS.inserted  rule=waiver:C6  (row only in the target)  x1
    db.PAYMENTS.inserted[target 1]: source null | target {"AMOUNT": "42.50", "INVOICE_ID": 3852, "METHOD": "CASH", "PAID_ON"...
[waived] ui.alert  rule=waiver:C6  (alert missing in the target)  x1
    step11.alert: source {"title": "Forms", "message": ["FRM-40401: No changes to save."], "... | target null
[waived] ui.focus  rule=waiver:C6  (expected dialog)  x1
    step11.focus: source 'FWindow/PushButton:OK' | target 'invoices.invoice_id[0]'
[waived] ui.message  rule=waiver:C6  x2
    step10.message: source 'Amount Required     42.50' | target ''
    step11.message: source 'FRM-40401: No changes to save.' | target 'Saved. Invoice 3852 is PAID.'
[waived] ui.record  rule=waiver:C6  x1
    step11.record: source 'Record: 0/1' | target 'Record: 1/?'
[waived] ui.values.HOME.COLLECTED  rule=waiver:C2  x10
    step02.values.HOME.COLLECTED[0]: source '' | target '83'
    step03.values.HOME.COLLECTED[0]: source '' | target '83'
    step04.values.HOME.COLLECTED[0]: source '' | target '83'
    step05.values.HOME.COLLECTED[0]: source '' | target '83'
    step06.values.HOME.COLLECTED[0]: source '' | target '83'
    step07.values.HOME.COLLECTED[0]: source '' | target '83'
    step08.values.HOME.COLLECTED[0]: source '' | target '83'
    step09.values.HOME.COLLECTED[0]: source '' | target '83'
    step10.values.HOME.COLLECTED[0]: source '' | target '83'
    step11.values.HOME.COLLECTED[0]: source '' | target '83'
[waived] ui.values.INVOICES.INVOICE_DATE  rule=waiver:C6  x4
    step11.values.INVOICES.INVOICE_DATE[0]: source '24-SEP-2026' | target '23-SEP-2026'
    step11.values.INVOICES.INVOICE_DATE[1]: source '23-SEP-2026' | target '18-SEP-2026'
    step11.values.INVOICES.INVOICE_DATE[2]: source '18-SEP-2026' | target '17-SEP-2026'
    step11.values.INVOICES.INVOICE_DATE[4]: source '17-SEP-2026' | target '15-SEP-2026'
[waived] ui.values.INVOICES.INVOICE_ID  rule=waiver:C6  x5
    step11.values.INVOICES.INVOICE_ID[0]: source '3852' | target '3850'
    step11.values.INVOICES.INVOICE_ID[1]: source '3850' | target '3835'
    step11.values.INVOICES.INVOICE_ID[2]: source '3835' | target '3832'
    step11.values.INVOICES.INVOICE_ID[3]: source '3832' | target '3831'
    step11.values.INVOICES.INVOICE_ID[4]: source '3831' | target '3823'
[waived] ui.values.INVOICES.PAID  rule=waiver:C6  x3
    step11.values.INVOICES.PAID[0]: source '     42.50' | target '30.00'
    step11.values.INVOICES.PAID[1]: source '     30.00' | target '40.00'
    step11.values.INVOICES.PAID[2]: source '     40.00' | target '0.00'
[waived] ui.values.INVOICES.PATIENT_NAME  rule=waiver:C6  x5
    step11.values.INVOICES.PATIENT_NAME[0]: source 'Yusuf Banerjee' | target 'Maya DSouza'
    step11.values.INVOICES.PATIENT_NAME[1]: source 'Maya DSouza' | target 'Omar Patel'
    step11.values.INVOICES.PATIENT_NAME[2]: source 'Omar Patel' | target 'Aisha Mathew'
    step11.values.INVOICES.PATIENT_NAME[3]: source 'Aisha Mathew' | target 'Fatima Verma'
    step11.values.INVOICES.PATIENT_NAME[4]: source 'Fatima Verma' | target 'Lina Thomas'
[waived] ui.values.INVOICES.STATUS  rule=waiver:C6  x1
    step11.values.INVOICES.STATUS[2]: source 'PARTIAL' | target 'OPEN'
[waived] ui.values.INVOICES.TOTAL_AMOUNT  rule=waiver:C6  x5
    step11.values.INVOICES.TOTAL_AMOUNT[0]: source '     85.00' | target '75.00'
    step11.values.INVOICES.TOTAL_AMOUNT[1]: source '     75.00' | target '80.00'
    step11.values.INVOICES.TOTAL_AMOUNT[2]: source '     80.00' | target '70.00'
    step11.values.INVOICES.TOTAL_AMOUNT[3]: source '     70.00' | target '80.00'
    step11.values.INVOICES.TOTAL_AMOUNT[4]: source '     80.00' | target '45.00'
[waived] ui.values.INVOICE_LINES.DESCRIPTION  rule=waiver:C6  x2
    step11.values.INVOICE_LINES.DESCRIPTION[0]: source 'Consultation - Dr. Maya Wilson' | target 'Consultation - Dr. Isha Saxena'
    step11.values.INVOICE_LINES.DESCRIPTION[1]: source '' | target 'Injection charge'
[waived] ui.values.INVOICE_LINES.LINE_NO  rule=waiver:C6  x1
    step11.values.INVOICE_LINES.LINE_NO[1]: source '' | target '2'
[waived] ui.values.INVOICE_LINES.QUANTITY  rule=waiver:C6  x1
    step11.values.INVOICE_LINES.QUANTITY[1]: source '' | target '1'
[waived] ui.values.INVOICE_LINES.UNIT_PRICE  rule=waiver:C6  x2
    step11.values.INVOICE_LINES.UNIT_PRICE[0]: source '     85.00' | target '45.00'
    step11.values.INVOICE_LINES.UNIT_PRICE[1]: source '' | target '30.00'
[waived] ui.values.PAYMENTS.AMOUNT  rule=waiver:C6  x2
    step11.values.PAYMENTS.AMOUNT[0]: source '     42.50' | target '30.00'
    step11.values.PAYMENTS.AMOUNT[1]: source '     42.50' | target ''
[waived] ui.values.PAYMENTS.METHOD  rule=waiver:C6  x1
    step11.values.PAYMENTS.METHOD[1]: source 'Cash' | target ''
[waived] ui.values.PAYMENTS.PAID_ON  rule=waiver:C6  (run date value in the source only)  x1
    step11.values.PAYMENTS.PAID_ON[1]: source '<date>' | target ''
[waived] ui.values.PAYMENTS.PAID_ON  rule=waiver:C6  (run date value in the target only)  x1
    step11.values.PAYMENTS.PAID_ON[0]: source '24-SEP-2026' | target '<date>'
[waived] ui.windows  rule=waiver:C1  x2
    step00.windows: source [["FRAME", "Oracle Fusion Middleware Forms Services"], ["MAIN_WIN",... | target [["FRAME", "CareWell Clinic"], ["MAIN_WIN", "CareWell Clinic - Sign...
    step01.windows: source [["FRAME", "Oracle Fusion Middleware Forms Services"], ["MAIN_WIN",... | target [["FRAME", "CareWell Clinic"], ["MAIN_WIN", "CareWell Clinic - Sign...
[waived] ui.windows  rule=waiver:C6  x1
    step11.windows: source [["FRAME", "CareWell Clinic - Front Desk One (Reception)"], ["MAIN_... | target [["FRAME", "CareWell Clinic - Front Desk One (Reception)"], ["MAIN_...

Waivers

Id	Waiver	Values	Reason
C1	Oracle's frame title before sign-in	2	Until CW_NAV.START_FORM sets the MDI title, the Forms frame shows the runtime's own title "Oracle Fusion Middleware Forms Services". The target's frame reads "CareWell Clinic" from the start: the web page is the clinic's application, not Oracle's runtime. From sign-in on, both show the same title.
C2	The home page's collected-today gauge reads empty	10	HOME.COLLECTED is a display item drawn as a half gauge on the original canvas; the Forms client's component tree exposes no text for it, so the source records '' at every step. The target shows the amount REFRESH_HOME computes (the same query as the source), as a number with a bar.
C6	The second payment of billing-pay is lost	42	In billing-pay, after the 42.50 is typed into the new payment row and Tab leaves AMOUNT, the Forms client reports "Amount Required 42.50" on the message line, and File > Save then shows the alert "FRM-40401: No changes to save." (record indicator 0/1). PRE-INSERT has drawn PAYMENTS_SEQ (the source draws 6733 and 6734, as the target does), yet nothing is saved: payment 6734 is not in PAYMENTS and invoice 3852 stays PARTIAL, while the screen still shows the unsaved payment. Identical in all three runs. The target saves the payment as the form's code says: POST-INSERT sets invoice 3852 PAID, KEY-COMMIT queries the invoices to be paid again (3852 is no longer among them) and shows "Saved. Invoice 3852 is PAID.". Replicating would mean losing a payment the user entered.
