CareWell clinic / billing-unsaved

billing-unsaved

Leave an invoice with an unsaved payment. Moving to another invoice fires ON-CLEAR-DETAILS: CLEAR_ALL_MASTER_DETAILS finds the changed PAYMENTS block below the master and clears it with ASK_COMMIT; Forms asks whether to save, answered No, and the next invoice's details are queried.

0defects

293values match

92tolerated by policy

8waived

0unmapped

Three runs from a fresh database gave byte-identical diffs. Behaviour that looks odd in the migrated app but is the original's: faithful to the original and waivers. Files: scenario, golden record, target record, diff (JSON).

Scenario steps

Items are addressed by their Forms name (BLOCK.ITEM[row]), the same name in the original and, through the mapping, in the migrated app.

#	Step	Action	Checked on the original
0		Open form `cw_login`
1		Type `CTL.USERNAME` = ADMIN
2	sign in	Click `CTL.SIGN_IN`
3	invoices	Click `HOME.INVOICES`
4	open invoice	Click `INVOICES.INVOICE_ID[1]`
5		Type `PAYMENTS.AMOUNT[0]` = 10
6	other invoice	Click `INVOICES.INVOICE_ID[2]`
7	do not save	Answer the alert No

Screens, step by step

Left: the original Oracle Forms application, recorded on a virtual display. Right: the migrated application in headless Chromium. Screenshots are evidence only; the comparison works on the recorded values.

No step screenshots of the original were kept for this app; the comparison uses the recorded values, which are in the golden record below.

Step 0: open cw_login

no screenshot

Original (Oracle Forms 14.1.2)

Migrated (.NET, PostgreSQL), step 00-open — Migrated (.NET, PostgreSQL)

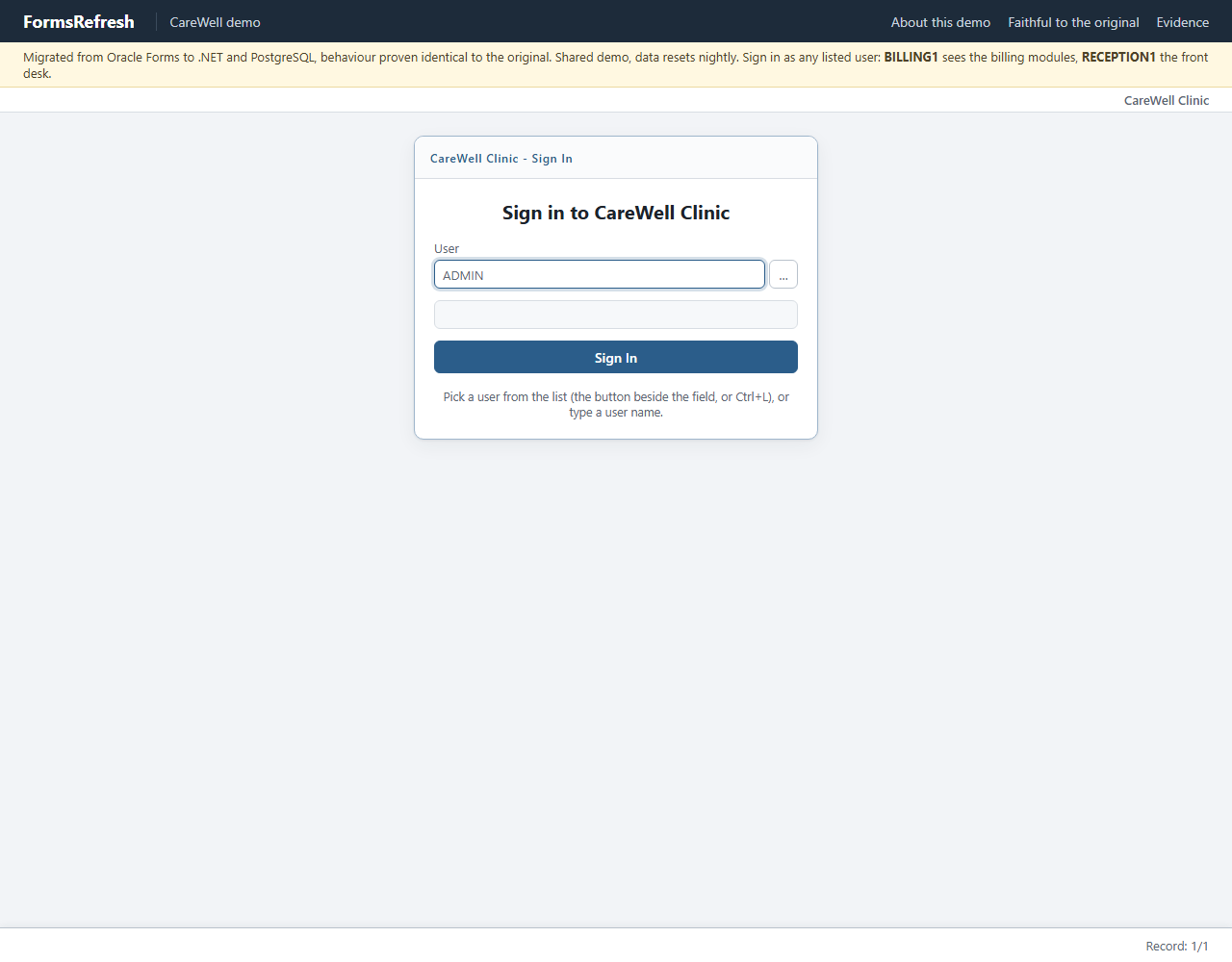

Step 1: type

no screenshot

Original (Oracle Forms 14.1.2)

Migrated (.NET, PostgreSQL), step 01-type — Migrated (.NET, PostgreSQL)

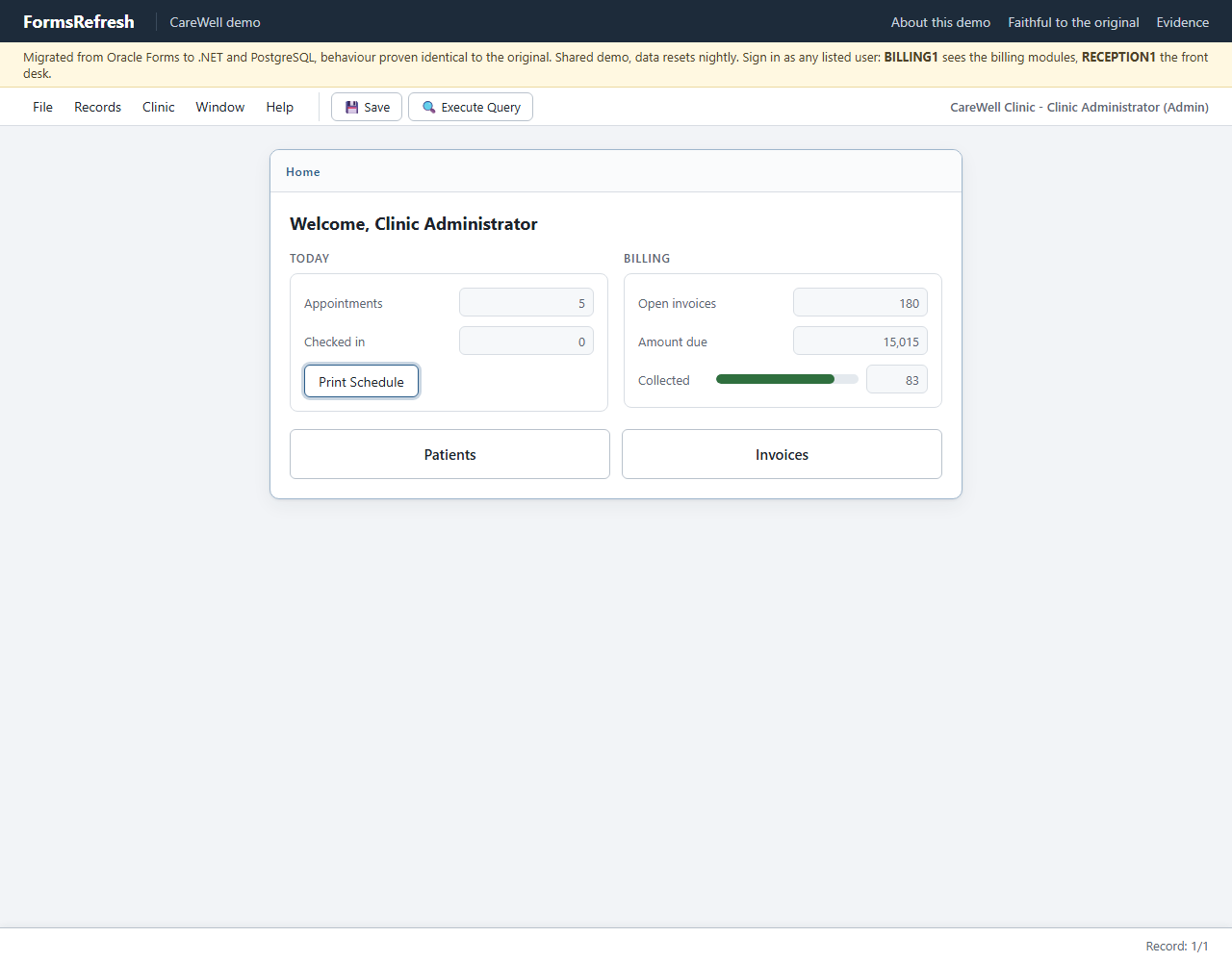

Step 2: sign in

no screenshot

Original (Oracle Forms 14.1.2)

Migrated (.NET, PostgreSQL), step 02-sign-in — Migrated (.NET, PostgreSQL)

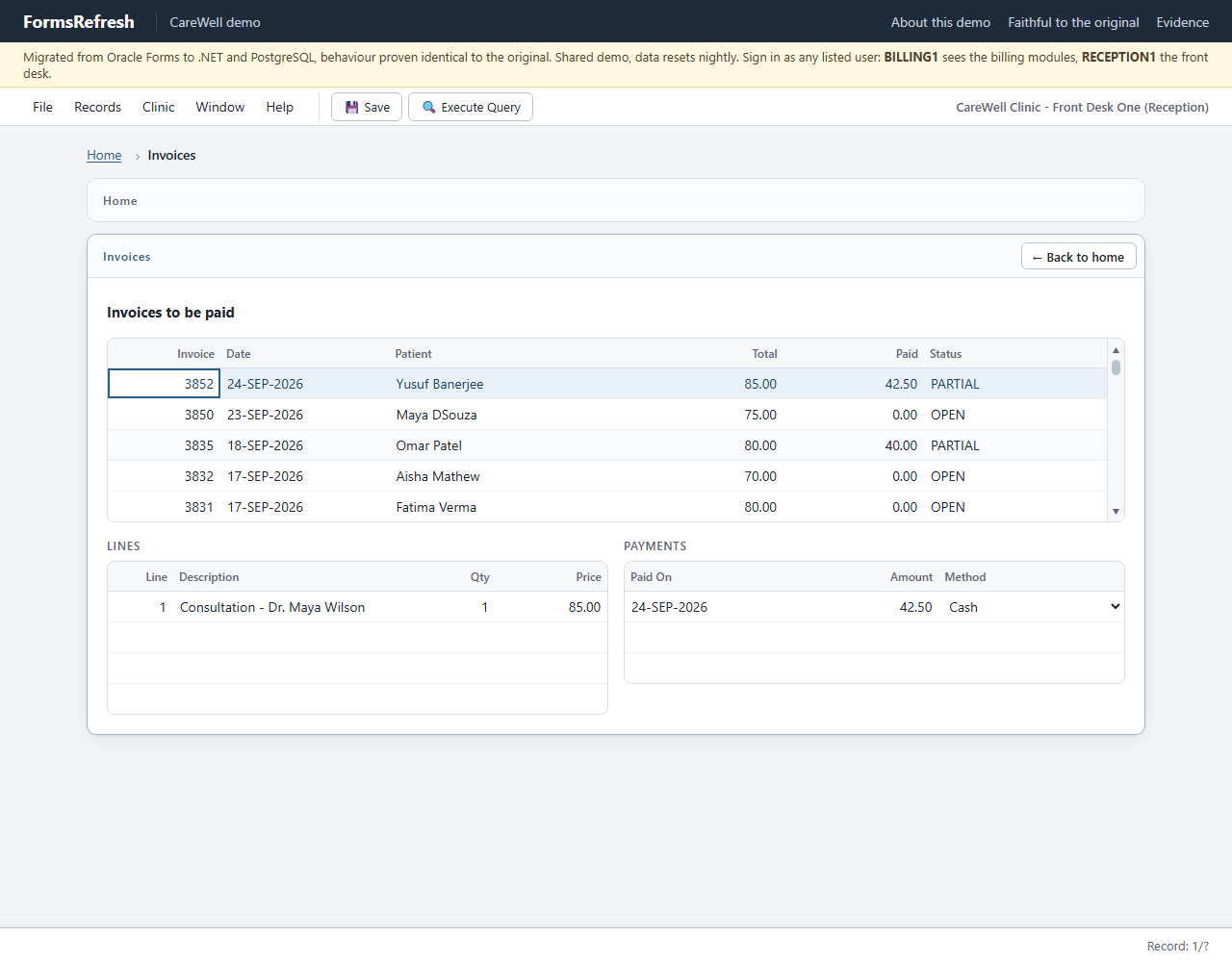

Step 3: invoices

no screenshot

Original (Oracle Forms 14.1.2)

Migrated (.NET, PostgreSQL), step 03-invoices — Migrated (.NET, PostgreSQL)

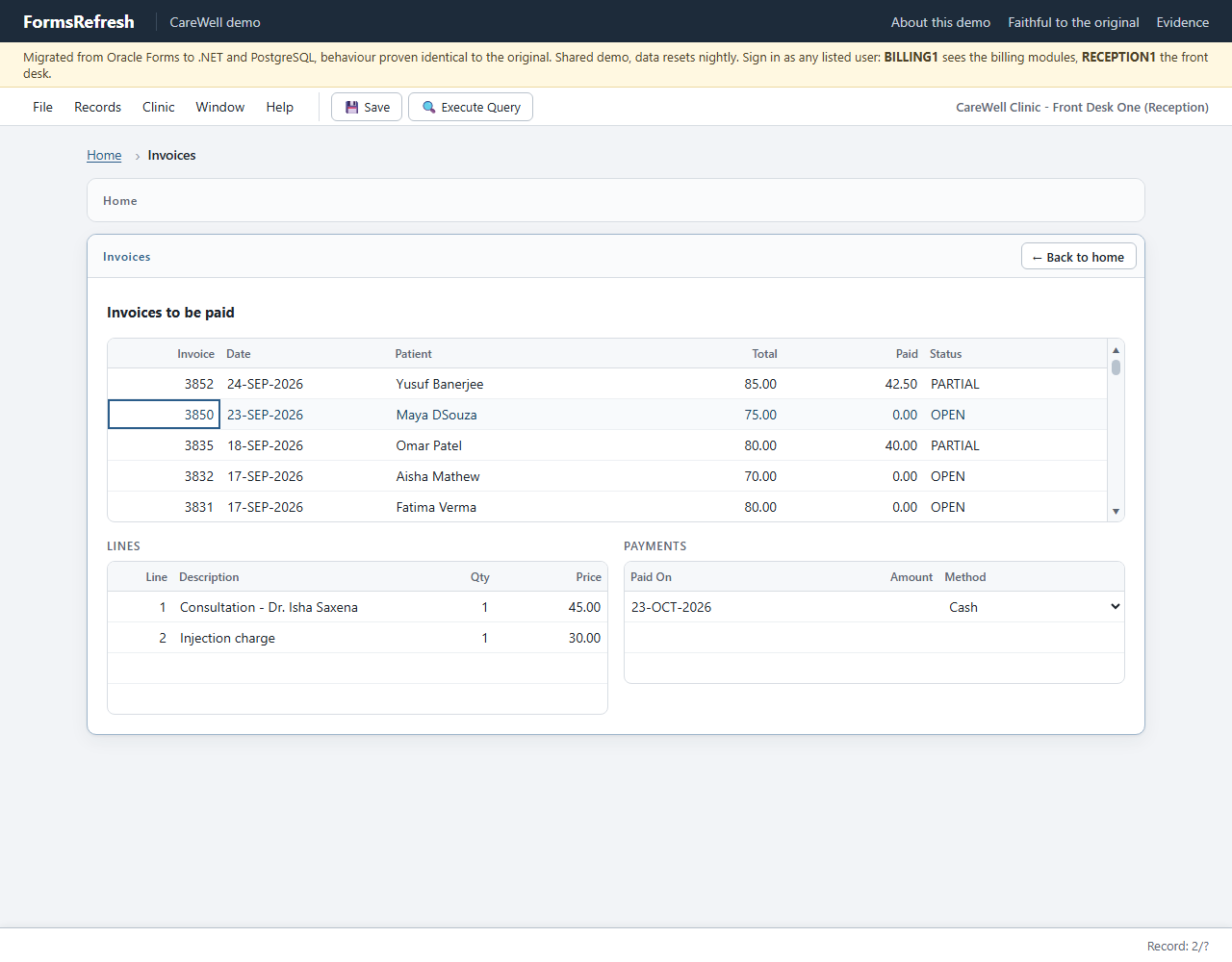

Step 4: open invoice

no screenshot

Original (Oracle Forms 14.1.2)

Migrated (.NET, PostgreSQL), step 04-open-invoice — Migrated (.NET, PostgreSQL)

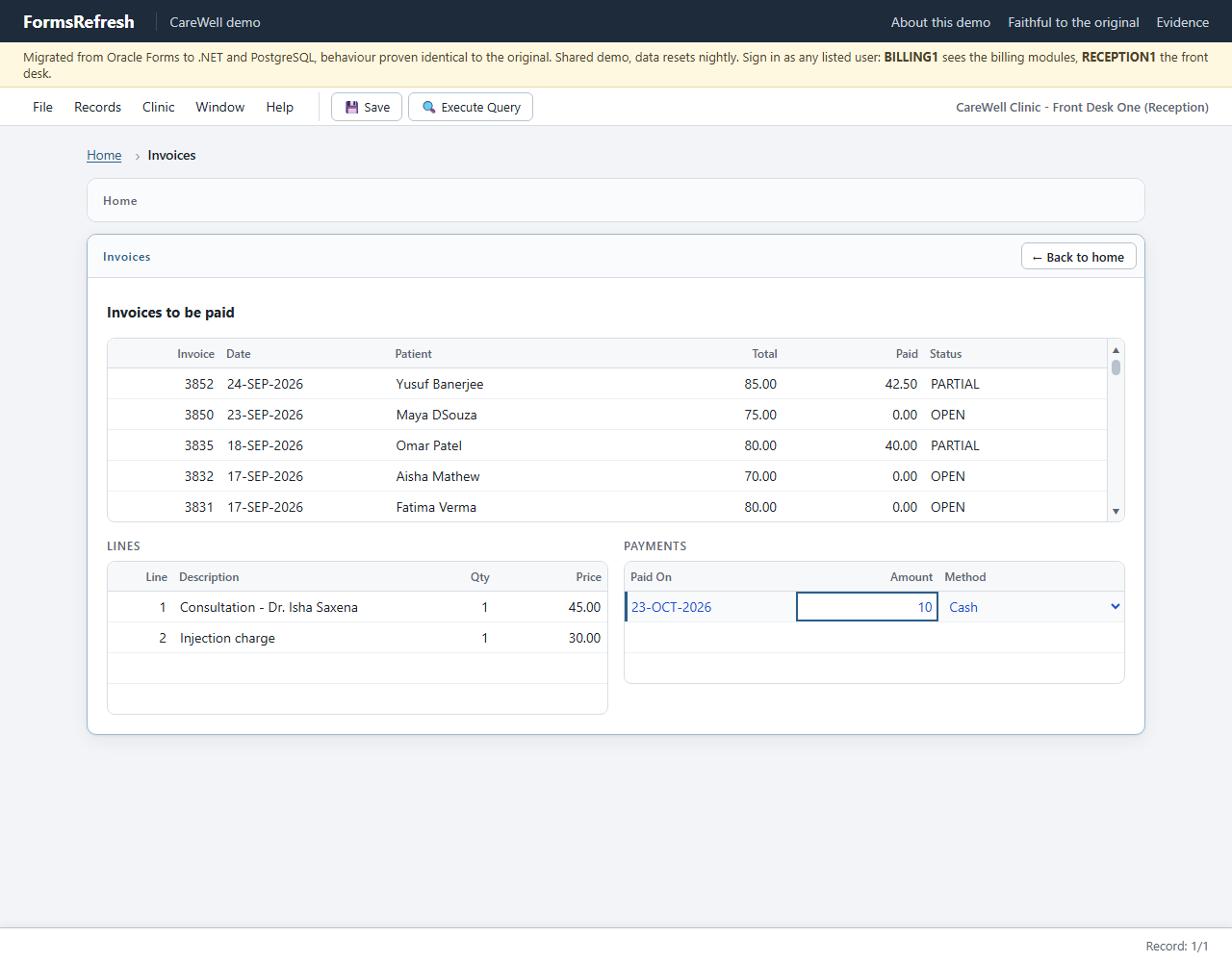

Step 5: type

no screenshot

Original (Oracle Forms 14.1.2)

Migrated (.NET, PostgreSQL), step 05-type — Migrated (.NET, PostgreSQL)

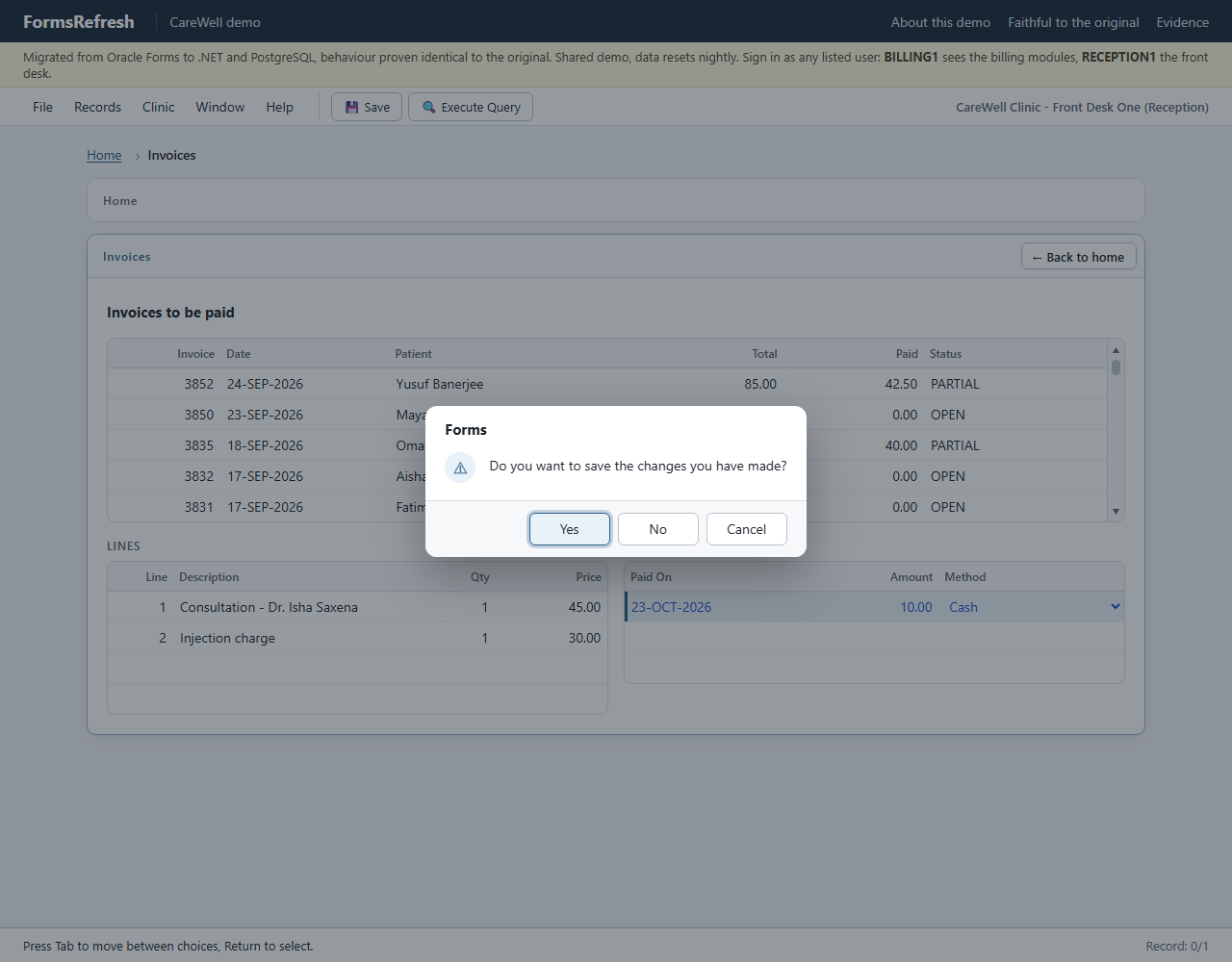

Step 6: other invoice

no screenshot

Original (Oracle Forms 14.1.2)

Migrated (.NET, PostgreSQL), step 06-other-invoice — Migrated (.NET, PostgreSQL)

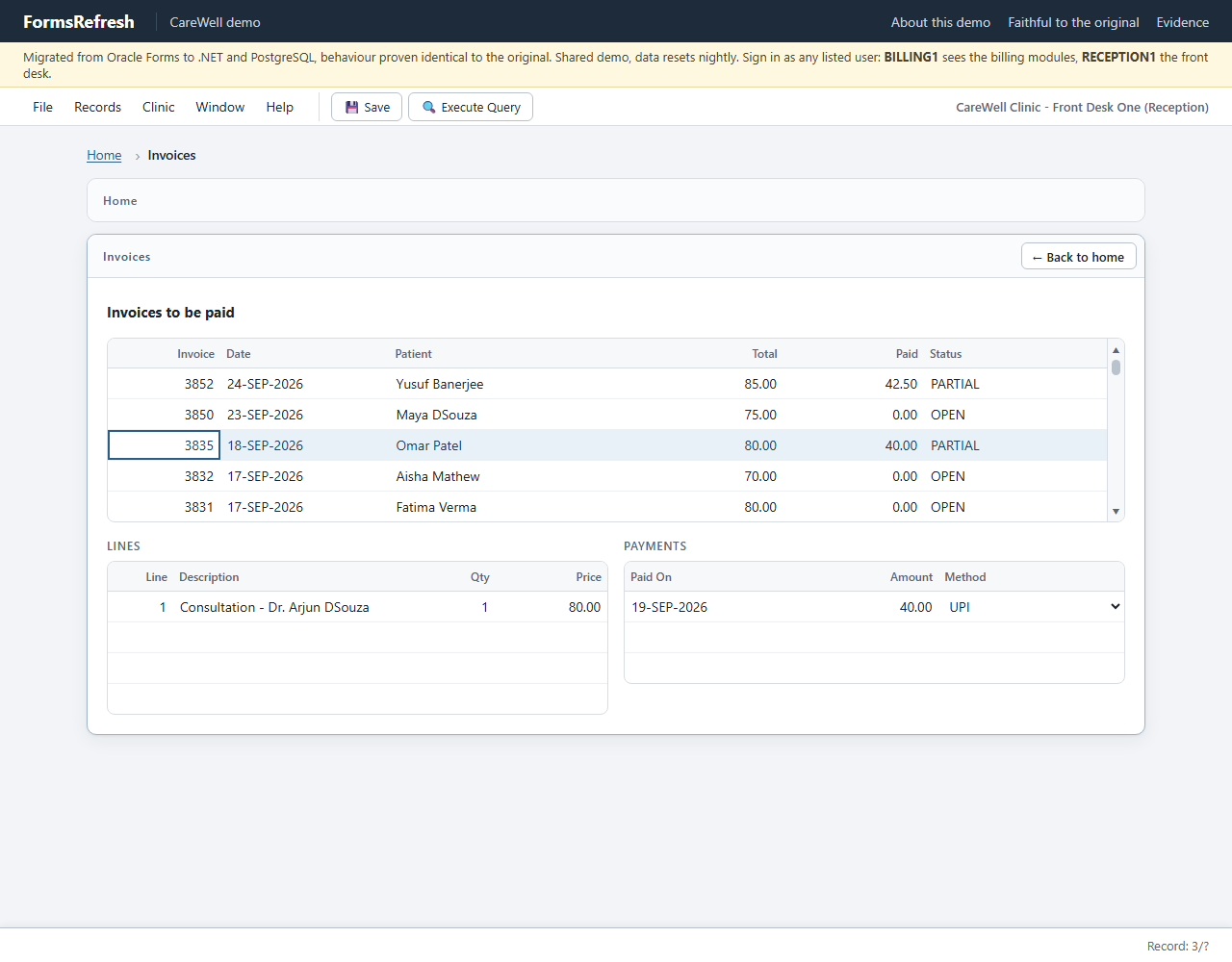

Step 7: do not save

no screenshot

Original (Oracle Forms 14.1.2)

Migrated (.NET, PostgreSQL), step 07-do-not-save — Migrated (.NET, PostgreSQL)

Golden record of the original

After each step: the focus, the displayed values that changed, the message line and any alert. The full record (every item of every step, windows, lists of values) is in the JSON file.

#	Step	Action (by name)	Focus after	Displayed values that changed	Message line	Alert	Expect
0		`Open form cw_login`	`CTL.USERNAME[0]`
1		`Type CTL.USERNAME = ADMIN`	`CTL.USERNAME[0]`	`CTL.USERNAME[0]` = ADMIN
2	sign in	`Click CTL.SIGN_IN`	`HOME.SCHEDULE[0]`	`HOME.CHECKED_IN[0]` = <any> `HOME.OPEN_AMOUNT[0]` = 15,015 `HOME.OPEN_INVOICES[0]` = 180 `HOME.TODAY_TOTAL[0]` = <any> `HOME.WELCOME[0]` = Welcome, Clinic Administrator
3	invoices	`Click HOME.INVOICES`	`INVOICES.INVOICE_ID[0]`	`CTL.SHOWING[0]` = Invoices to be paid `INVOICES.INVOICE_DATE[0]` = 24-SEP-2026 `INVOICES.INVOICE_DATE[1]` = 23-SEP-2026 `INVOICES.INVOICE_DATE[2]` = 18-SEP-2026 `INVOICES.INVOICE_DATE[3]` = 17-SEP-2026 `INVOICES.INVOICE_DATE[4]` = 17-SEP-2026 `INVOICES.INVOICE_ID[0]` = 3852 `INVOICES.INVOICE_ID[1]` = 3850 `INVOICES.INVOICE_ID[2]` = 3835 `INVOICES.INVOICE_ID[3]` = 3832 `INVOICES.INVOICE_ID[4]` = 3831 `INVOICES.PAID[0]` = 42.50 `INVOICES.PAID[1]` = 0.00 `INVOICES.PAID[2]` = 40.00 `INVOICES.PAID[3]` = 0.00 `INVOICES.PAID[4]` = 0.00 `INVOICES.PATIENT_NAME[0]` = Yusuf Banerjee `INVOICES.PATIENT_NAME[1]` = Maya DSouza `INVOICES.PATIENT_NAME[2]` = Omar Patel `INVOICES.PATIENT_NAME[3]` = Aisha Mathew `INVOICES.PATIENT_NAME[4]` = Fatima Verma `INVOICES.STATUS[0]` = PARTIAL `INVOICES.STATUS[1]` = OPEN `INVOICES.STATUS[2]` = PARTIAL `INVOICES.STATUS[3]` = OPEN `INVOICES.STATUS[4]` = OPEN `INVOICES.TOTAL_AMOUNT[0]` = 85.00 `INVOICES.TOTAL_AMOUNT[1]` = 75.00 `INVOICES.TOTAL_AMOUNT[2]` = 80.00 `INVOICES.TOTAL_AMOUNT[3]` = 70.00 `INVOICES.TOTAL_AMOUNT[4]` = 80.00 `INVOICE_LINES.DESCRIPTION[0]` = Consultation - Dr. Maya Wilson `INVOICE_LINES.LINE_NO[0]` = 1 `INVOICE_LINES.QUANTITY[0]` = 1 `INVOICE_LINES.UNIT_PRICE[0]` = 85.00 `PAYMENTS.AMOUNT[0]` = 42.50 `PAYMENTS.METHOD[0]` = Cash `PAYMENTS.PAID_ON[0]` = 24-SEP-2026
4	open invoice	`Click INVOICES.INVOICE_ID[1]`	`INVOICES.INVOICE_ID[1]`	`INVOICE_LINES.DESCRIPTION[0]` = Consultation - Dr. Isha Saxena `INVOICE_LINES.DESCRIPTION[1]` = Injection charge `INVOICE_LINES.LINE_NO[1]` = 2 `INVOICE_LINES.QUANTITY[1]` = 1 `INVOICE_LINES.UNIT_PRICE[0]` = 45.00 `INVOICE_LINES.UNIT_PRICE[1]` = 30.00 `PAYMENTS.PAID_ON[0]` = <date>
5		`Type PAYMENTS.AMOUNT[0] = 10`	`PAYMENTS.AMOUNT[0]`	`PAYMENTS.AMOUNT[0]` = 10
6	other invoice	`Click INVOICES.INVOICE_ID[2]`	`FWindow/PushButton:Yes`	`PAYMENTS.AMOUNT[0]` = 10.00	Press Tab to move between choices, Return to select.	Do you want to save the changes you have made?
7	do not save	`Answer the alert No`	`INVOICES.INVOICE_ID[2]`	`INVOICE_LINES.DESCRIPTION[0]` = Consultation - Dr. Arjun DSouza `INVOICE_LINES.UNIT_PRICE[0]` = 80.00 `PAYMENTS.AMOUNT[0]` = 40.00 `PAYMENTS.METHOD[0]` = UPI `PAYMENTS.PAID_ON[0]` = 19-SEP-2026

Database effects

None: the scenario changes no row and draws no sequence value.

Classified diff against the migrated app

Diff: billing-unsaved
counts: match 293, tolerated 92, waived 8, defect 0, unmapped 0, harness 0
generated-id pairs (source -> target): none

waivers:
  C1 [proposed] Oracle's frame title before sign-in: applied to 2 value(s)
  C2 [proposed] The home page's collected-today gauge reads empty: applied to 6 value(s)
  C3 [proposed] Help > About names nobody: applied to 0 value(s)
  C4 [proposed] The home page forgets the user after File > Exit of a module: applied to 0 value(s)
  C5 [proposed] No item has the focus after a fetched record is refused: applied to 0 value(s)
  C6 [proposed] The second payment of billing-pay is lost: applied to 0 value(s)

[tolerated] ui.values.HOME.CHECKED_IN  rule=mask:today-counts  x6
[tolerated] ui.values.HOME.OPEN_AMOUNT  rule=text  x6
[tolerated] ui.values.HOME.TODAY_TOTAL  rule=mask:today-counts  x6
[tolerated] ui.values.INVOICES.PAID  rule=text  x25
[tolerated] ui.values.INVOICES.TOTAL_AMOUNT  rule=text  x25
[tolerated] ui.values.INVOICE_LINES.UNIT_PRICE  rule=text  x8
[tolerated] ui.values.PAYMENTS.AMOUNT  rule=text  x3
[tolerated] ui.values.PAYMENTS.METHOD  rule=text  x10
[tolerated] ui.values.PAYMENTS.PAID_ON  rule=mask:payment-date  x3
[waived] ui.values.HOME.COLLECTED  rule=waiver:C2  x6
    step02.values.HOME.COLLECTED[0]: source '' | target '83'
    step03.values.HOME.COLLECTED[0]: source '' | target '83'
    step04.values.HOME.COLLECTED[0]: source '' | target '83'
    step05.values.HOME.COLLECTED[0]: source '' | target '83'
    step06.values.HOME.COLLECTED[0]: source '' | target '83'
    step07.values.HOME.COLLECTED[0]: source '' | target '83'
[waived] ui.windows  rule=waiver:C1  x2
    step00.windows: source [["FRAME", "Oracle Fusion Middleware Forms Services"], ["MAIN_WIN",... | target [["FRAME", "CareWell Clinic"], ["MAIN_WIN", "CareWell Clinic - Sign...
    step01.windows: source [["FRAME", "Oracle Fusion Middleware Forms Services"], ["MAIN_WIN",... | target [["FRAME", "CareWell Clinic"], ["MAIN_WIN", "CareWell Clinic - Sign...

Waivers

Id	Waiver	Values	Reason
C1	Oracle's frame title before sign-in	2	Until CW_NAV.START_FORM sets the MDI title, the Forms frame shows the runtime's own title "Oracle Fusion Middleware Forms Services". The target's frame reads "CareWell Clinic" from the start: the web page is the clinic's application, not Oracle's runtime. From sign-in on, both show the same title.
C2	The home page's collected-today gauge reads empty	6	HOME.COLLECTED is a display item drawn as a half gauge on the original canvas; the Forms client's component tree exposes no text for it, so the source records '' at every step. The target shows the amount REFRESH_HOME computes (the same query as the source), as a number with a bar.
