CareWell clinic / login-fail
login-fail
An unknown user. USERNAME validates from its LOV (ValidateFromList), so leaving it opens LOV_USERS with every active user; Escape closes the LOV and Forms refuses the value (FRM-40212). The sign-in never reaches CW_SEC.LOGIN with an unknown name.
Three runs from a fresh database gave byte-identical diffs. Behaviour that looks odd in the migrated app but is the original's: faithful to the original and waivers. Files: scenario, golden record, target record, diff (JSON).
Scenario steps
Items are addressed by their Forms name (BLOCK.ITEM[row]), the same name in the
original and, through the mapping, in the migrated app.
| # | Step | Action | Checked on the original |
|---|---|---|---|
| 0 | Open form cw_login | ||
| 1 | Type CTL.USERNAME = NOBODY | ||
| 2 | sign in | Click CTL.SIGN_IN | |
| 3 | close lov | Press Escape |
Screens, step by step
Left: the original Oracle Forms application, recorded on a virtual display. Right: the migrated application in headless Chromium. Screenshots are evidence only; the comparison works on the recorded values.
No step screenshots of the original were kept for this app; the comparison uses the recorded values, which are in the golden record below.
Step 0: open cw_login

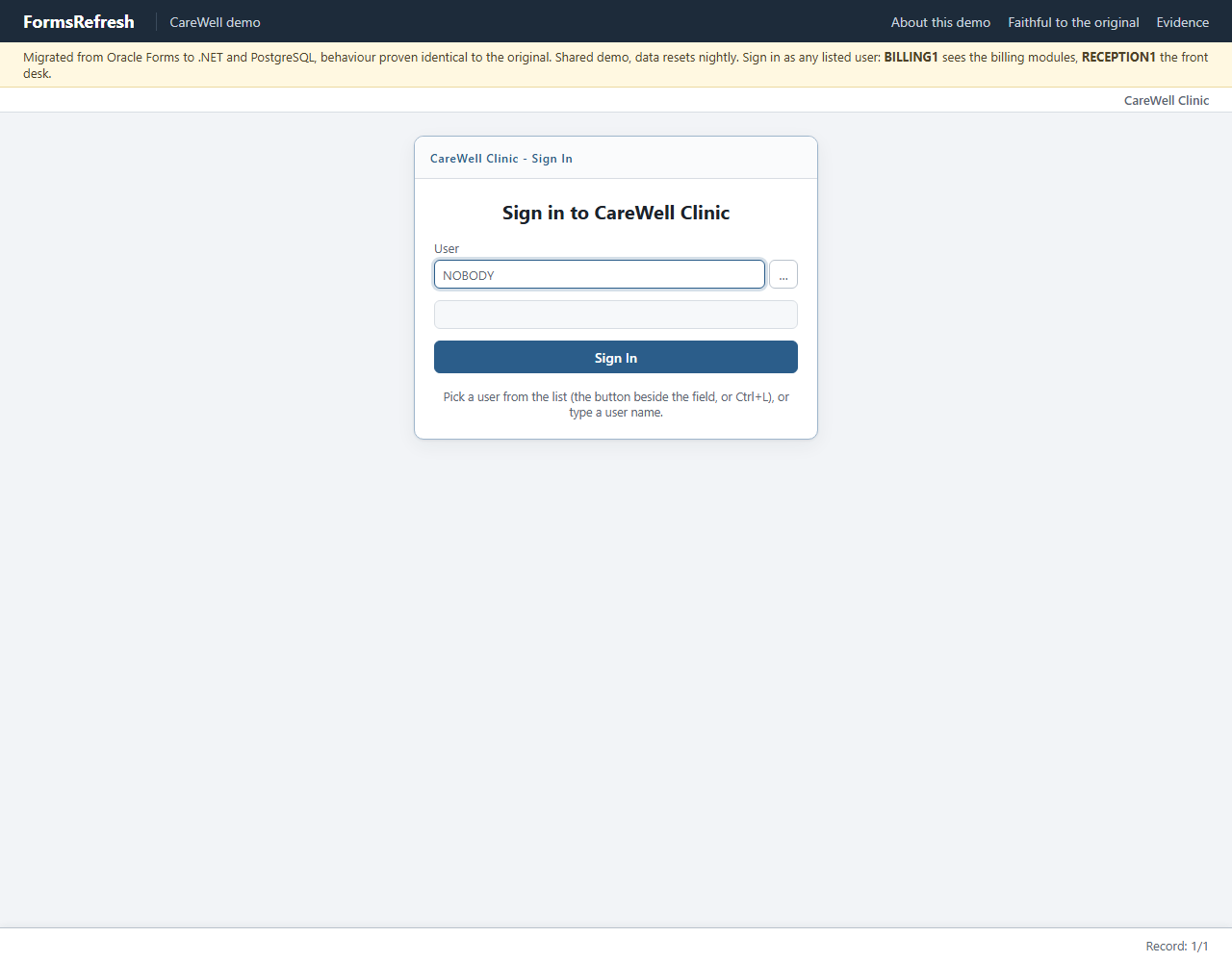

Step 1: type

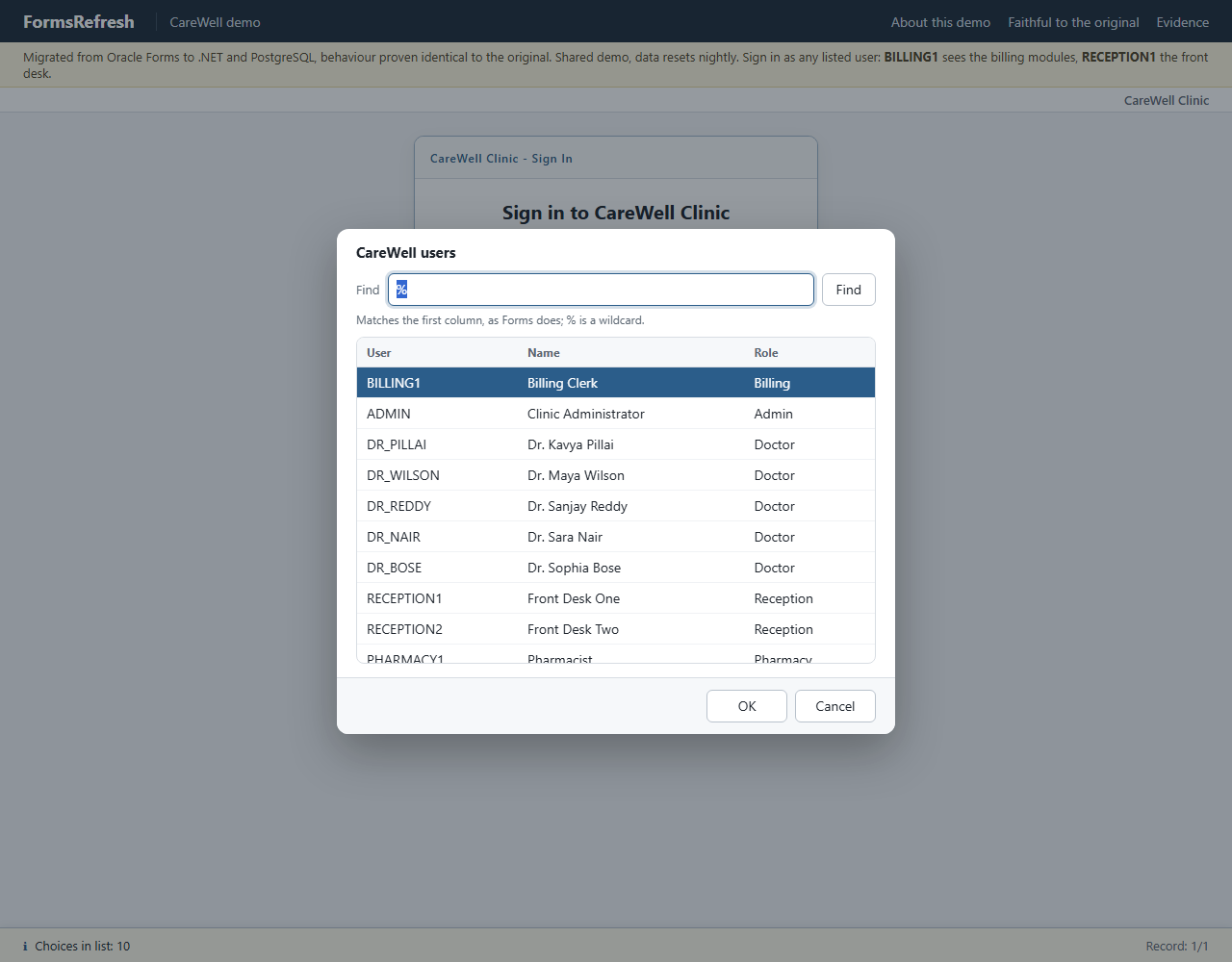

Step 2: sign in

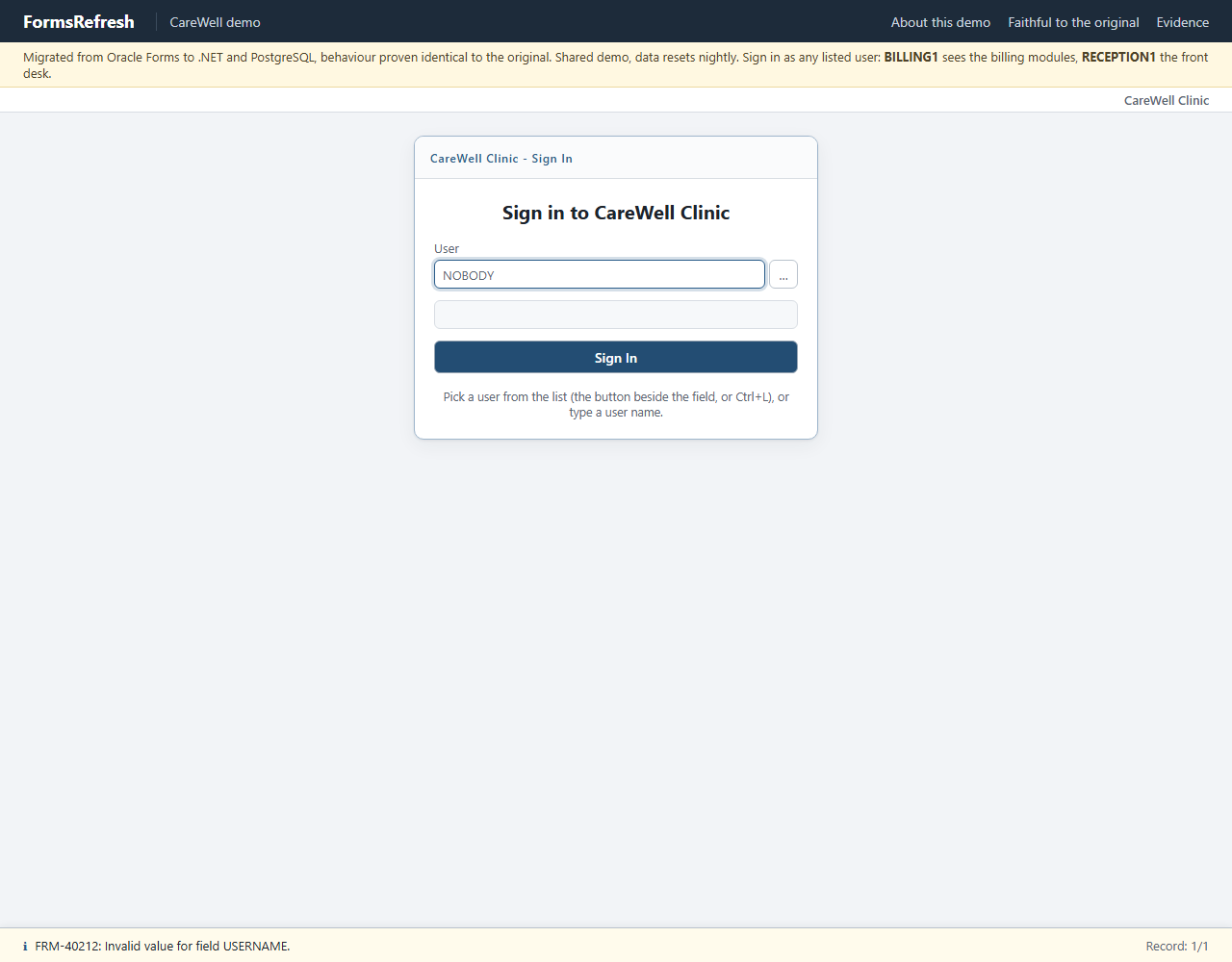

Step 3: close lov
Golden record of the original
After each step: the focus, the displayed values that changed, the message line and any alert. The full record (every item of every step, windows, lists of values) is in the JSON file.
| # | Step | Action (by name) | Focus after | Displayed values that changed | Message line | Alert | Expect |
|---|---|---|---|---|---|---|---|
| 0 | Open form cw_login | CTL.USERNAME[0] | |||||
| 1 | Type CTL.USERNAME = NOBODY | CTL.USERNAME[0] | CTL.USERNAME[0] = NOBODY | ||||
| 2 | sign in | Click CTL.SIGN_IN | LOV_USERS/ListView | Choices in list: 10 | |||
| 3 | close lov | Press Escape | CTL.USERNAME[0] | FRM-40212: Invalid value for field USERNAME. | pass |
Database effects
None: the scenario changes no row and draws no sequence value.
Classified diff against the migrated app
Diff: login-fail counts: match 48, tolerated 0, waived 4, defect 0, unmapped 0, harness 0 generated-id pairs (source -> target): none waivers: C1 [proposed] Oracle's frame title before sign-in: applied to 4 value(s) C2 [proposed] The home page's collected-today gauge reads empty: applied to 0 value(s) C3 [proposed] Help > About names nobody: applied to 0 value(s) C4 [proposed] The home page forgets the user after File > Exit of a module: applied to 0 value(s) C5 [proposed] No item has the focus after a fetched record is refused: applied to 0 value(s) C6 [proposed] The second payment of billing-pay is lost: applied to 0 value(s) [waived] ui.windows rule=waiver:C1 x4 step00.windows: source [["FRAME", "Oracle Fusion Middleware Forms Services"], ["MAIN_WIN",... | target [["FRAME", "CareWell Clinic"], ["MAIN_WIN", "CareWell Clinic - Sign... step01.windows: source [["FRAME", "Oracle Fusion Middleware Forms Services"], ["MAIN_WIN",... | target [["FRAME", "CareWell Clinic"], ["MAIN_WIN", "CareWell Clinic - Sign... step02.windows: source [["FRAME", "Oracle Fusion Middleware Forms Services"], ["MAIN_WIN",... | target [["FRAME", "CareWell Clinic"], ["MAIN_WIN", "CareWell Clinic - Sign... step03.windows: source [["FRAME", "Oracle Fusion Middleware Forms Services"], ["MAIN_WIN",... | target [["FRAME", "CareWell Clinic"], ["MAIN_WIN", "CareWell Clinic - Sign...
Waivers
| Id | Waiver | Values | Reason |
|---|---|---|---|
| C1 | Oracle's frame title before sign-in | 4 | Until CW_NAV.START_FORM sets the MDI title, the Forms frame shows the runtime's own title "Oracle Fusion Middleware Forms Services". The target's frame reads "CareWell Clinic" from the start: the web page is the clinic's application, not Oracle's runtime. From sign-in on, both show the same title. |
