Student forms / form1-update

form1-update

Change the first course's description and save: PRE-UPDATE sets MODIFIED_DATE to SYSDATE and MODIFIED_BY to :GLOBAL.USER_ID.

0defects

50values match

1tolerated by policy

0waived

0unmapped

Three runs from a fresh database gave byte-identical diffs. Behaviour that looks odd in the migrated app but is the original's: faithful to the original and waivers. Files: scenario, golden record, target record, diff (JSON).

Scenario steps

Items are addressed by their Forms name (BLOCK.ITEM[row]), the same name in the original and, through the mapping, in the migrated app.

#	Step	Action
0		Open form `QAFE_FORM1`
1		Type `COURSE.DESCRIPTION[0]` = Dutch Grammar II
2	save	Click `Toolbar.Save`

Screens, step by step

Left: the original Oracle Forms application, recorded on a virtual display. Right: the migrated application in headless Chromium. Screenshots are evidence only; the comparison works on the recorded values.

Step 0: open QAFE_FORM1

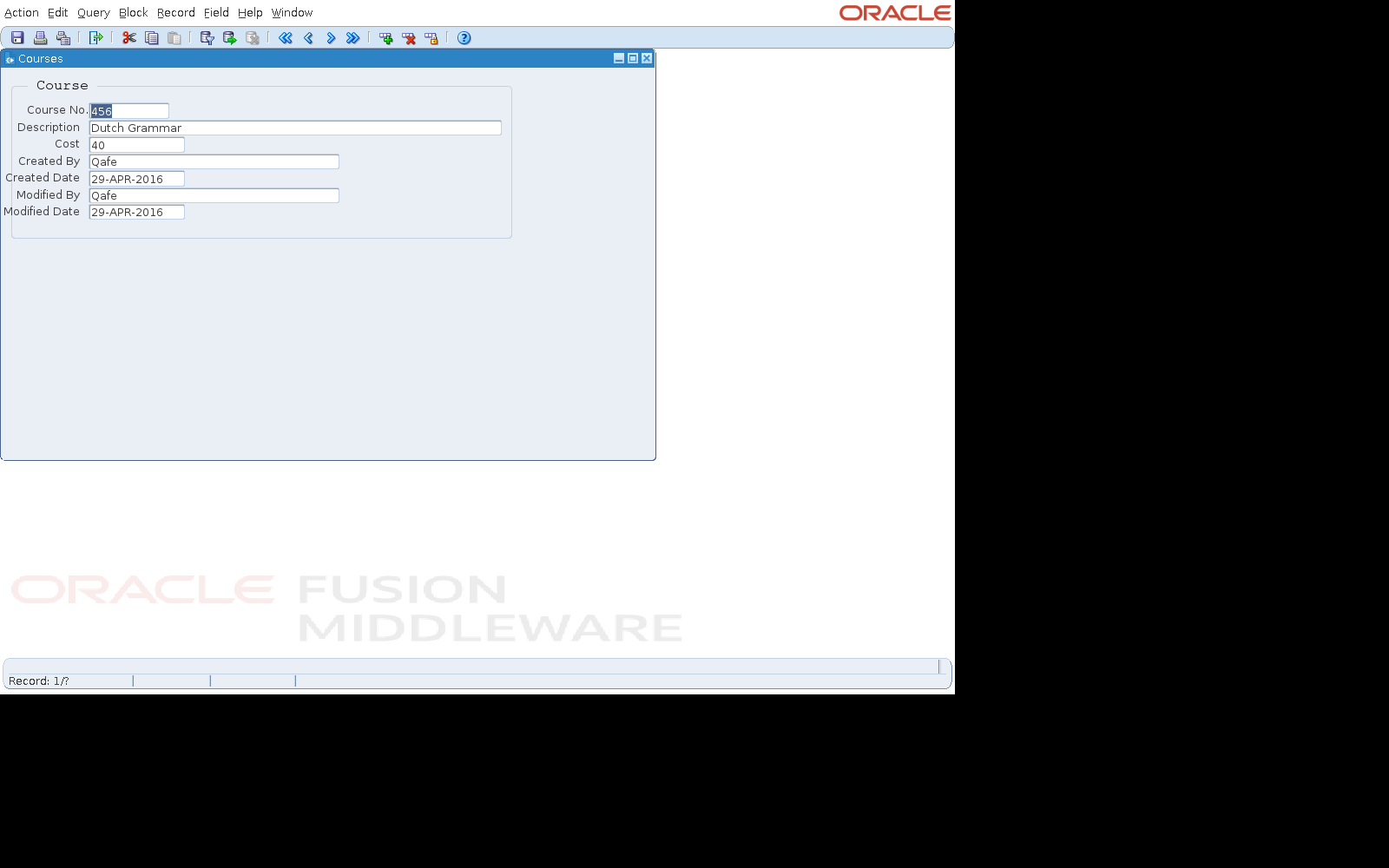

Original (Oracle Forms 14.1.2), step 00-open — Original (Oracle Forms 14.1.2)

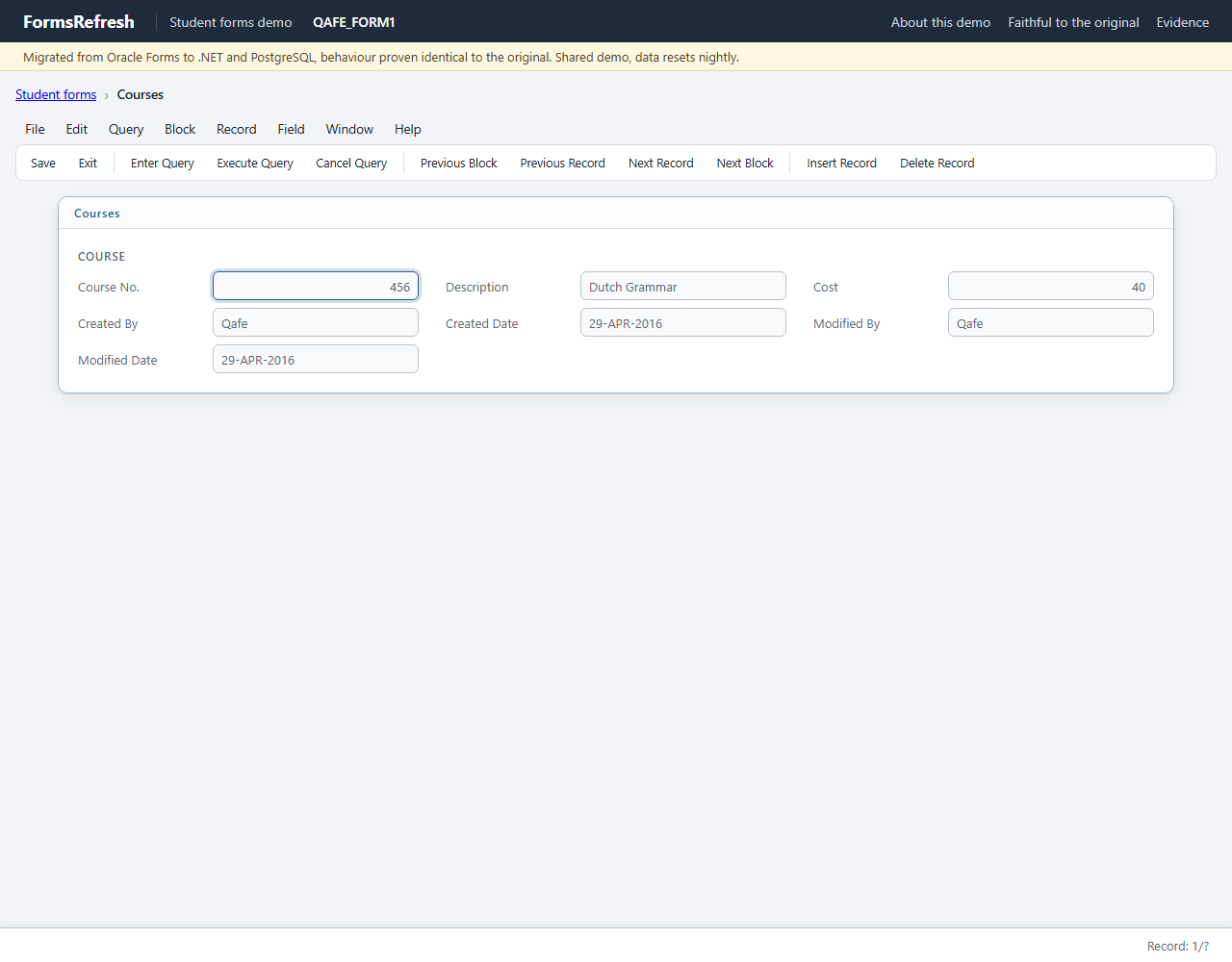

Migrated (.NET, PostgreSQL), step 00-open — Migrated (.NET, PostgreSQL)

Step 1: type

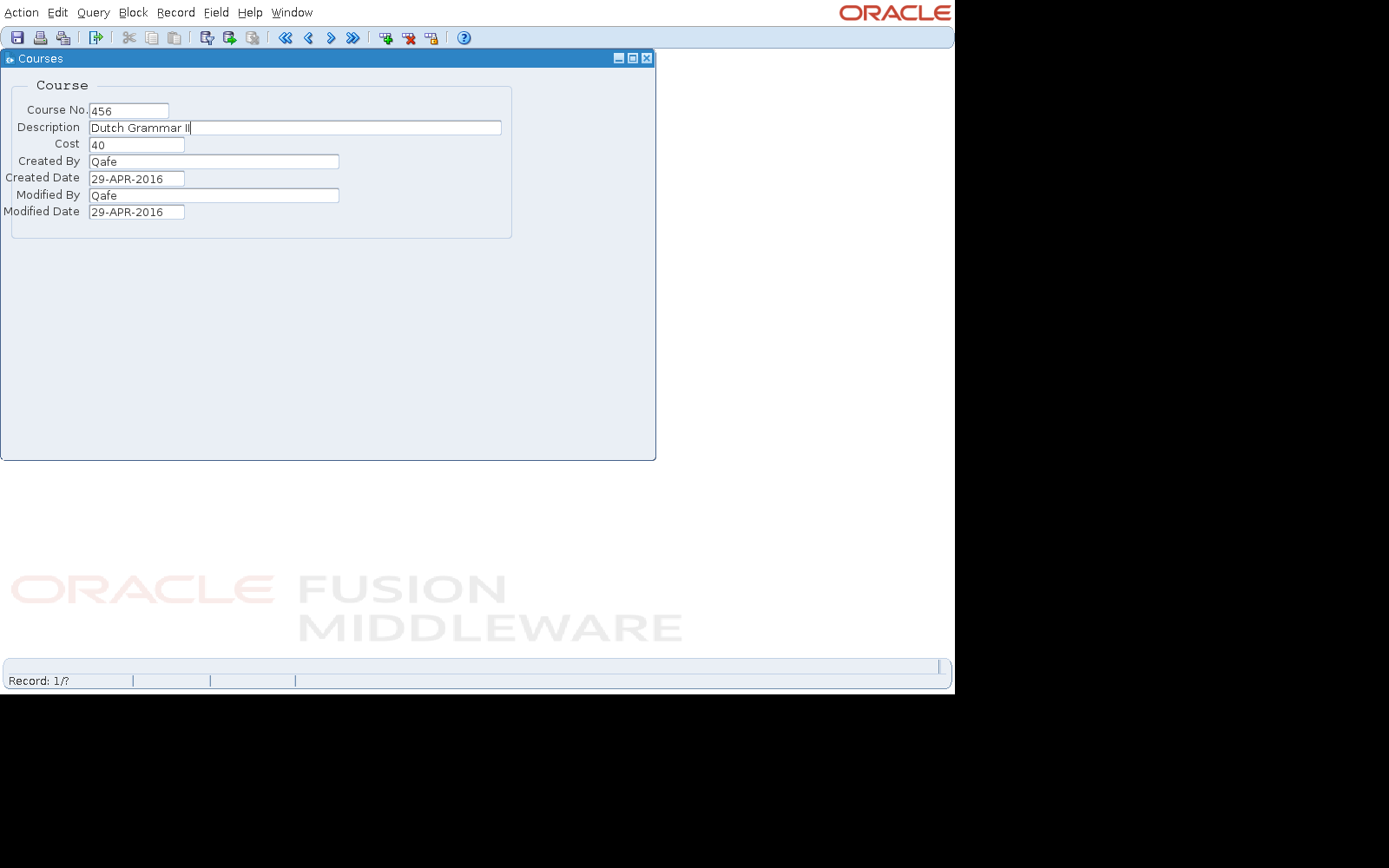

Original (Oracle Forms 14.1.2), step 01-type — Original (Oracle Forms 14.1.2)

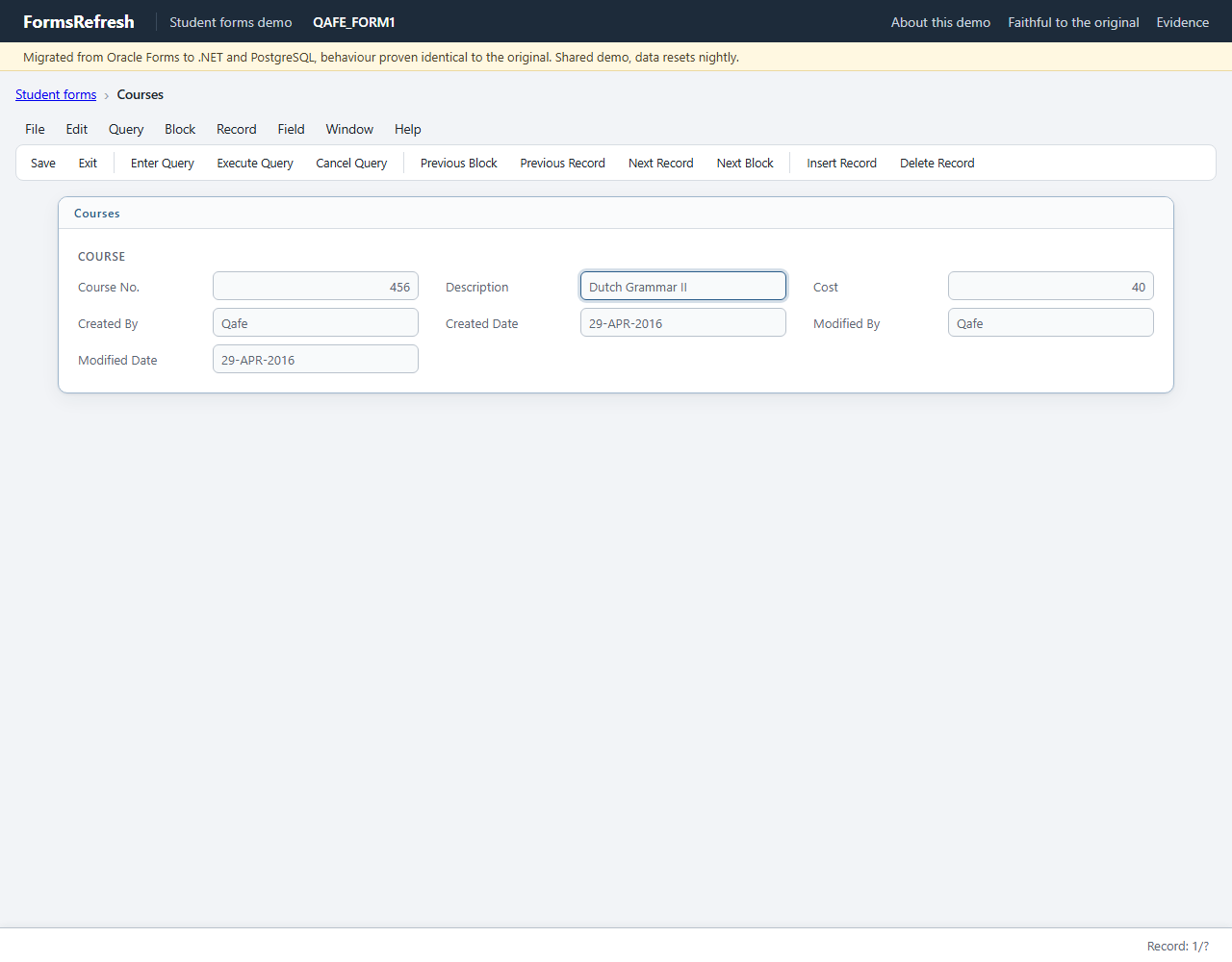

Migrated (.NET, PostgreSQL), step 01-type — Migrated (.NET, PostgreSQL)

Step 2: save

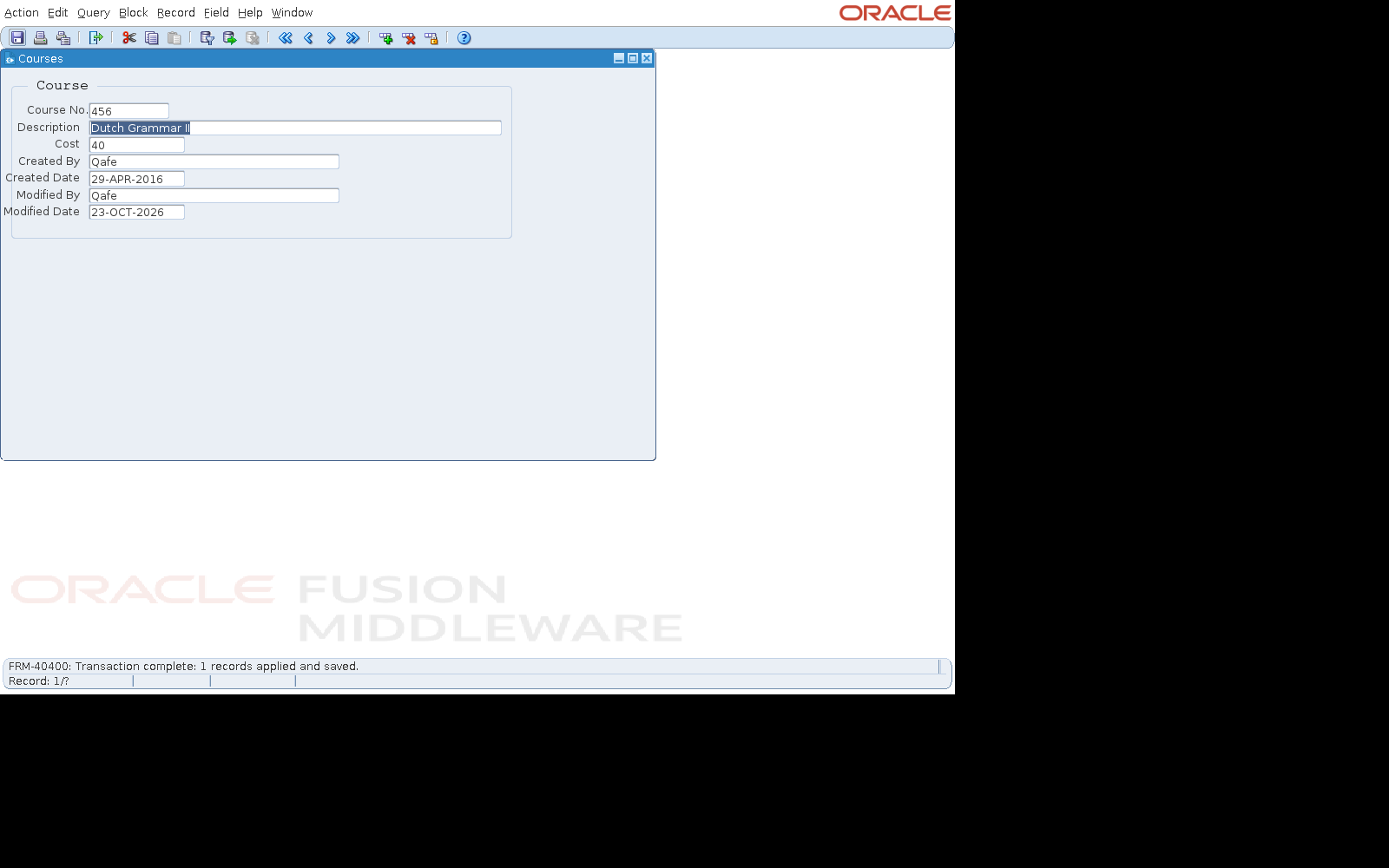

Original (Oracle Forms 14.1.2), step 02-save — Original (Oracle Forms 14.1.2)

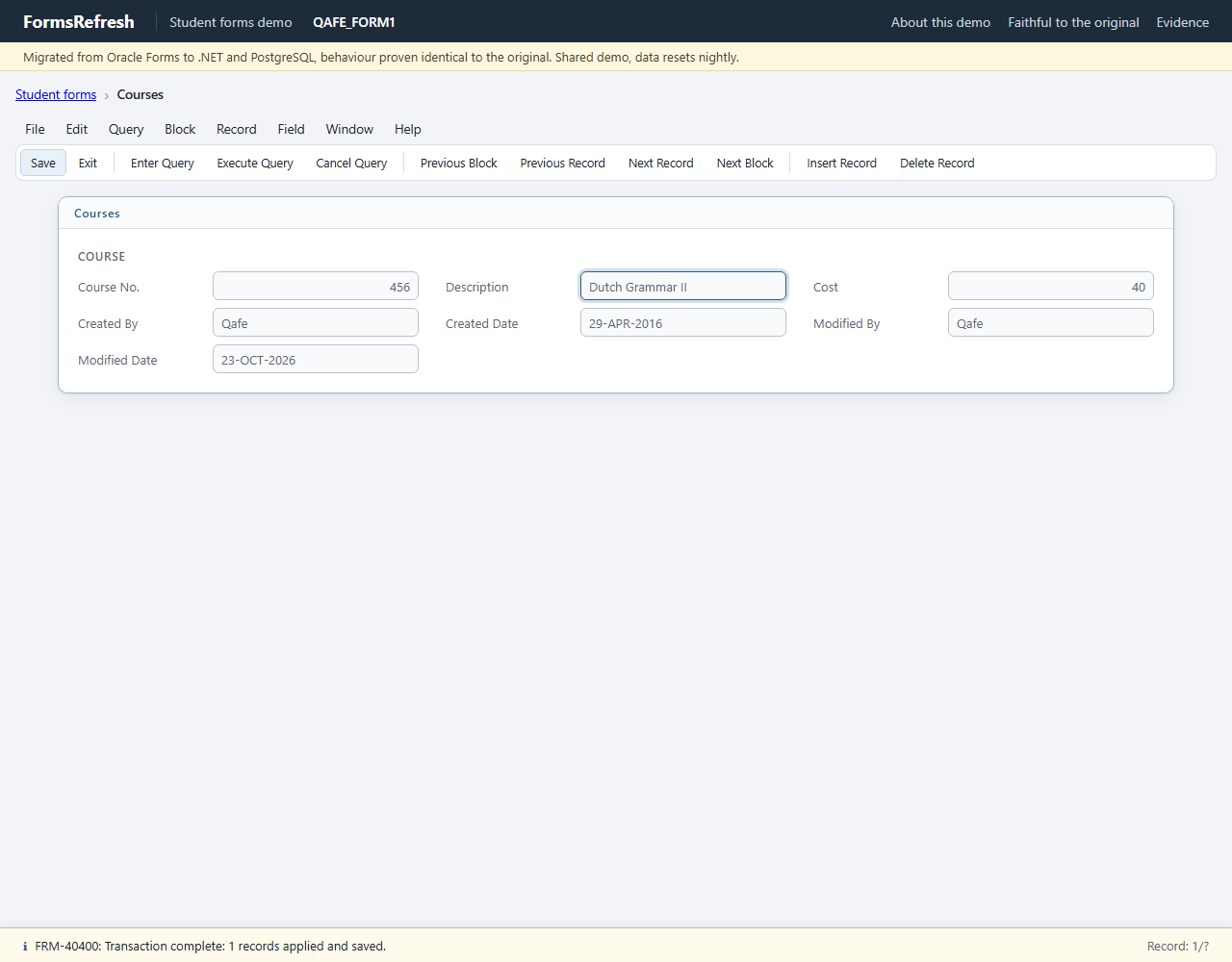

Migrated (.NET, PostgreSQL), step 02-save — Migrated (.NET, PostgreSQL)

Golden record of the original

After each step: the focus, the displayed values that changed, the message line and any alert. The full record (every item of every step, windows, lists of values) is in the JSON file.

#	Step	Action (by name)	Focus after	Displayed values that changed	Message line
0		`Open form QAFE_FORM1`	`COURSE.COURSE_NO[0]`	`COURSE.COST[0]` = 40 `COURSE.COURSE_NO[0]` = 456 `COURSE.CREATED_BY[0]` = Qafe `COURSE.CREATED_DATE[0]` = 29-APR-2016 `COURSE.DESCRIPTION[0]` = Dutch Grammar `COURSE.MODIFIED_BY[0]` = Qafe `COURSE.MODIFIED_DATE[0]` = 29-APR-2016
1		`Type COURSE.DESCRIPTION[0] = Dutch Grammar II`	`COURSE.DESCRIPTION[0]`	`COURSE.DESCRIPTION[0]` = Dutch Grammar II
2	save	`Click Toolbar.Save`	`COURSE.DESCRIPTION[0]`	`COURSE.MODIFIED_DATE[0]` = <date>	FRM-40400: Transaction complete: 1 records applied and saved.

Database effects

COURSE updated: {"key": {"COURSE_NO": 456}, "changed": {"DESCRIPTION": {"before": "Dutch Grammar", "after": "Dutch Grammar II"}, "MODIFIED_DATE": {"before": "2016-04-29T00:00:00", "after": "<date>"}}}

Classified diff against the migrated app

Diff: form1-update
counts: match 50, tolerated 1, waived 0, defect 0, unmapped 0, harness 0
generated-id pairs (source -> target): none

waivers:
  S1 [proposed] Screen-reader announcement of the COURSE_NO item read as a message: applied to 0 value(s)

[tolerated] ui.values.COURSE.MODIFIED_DATE  rule=mask:audit-dates  x1

Waivers

No waiver applies to this scenario: every compared value matches or is within the tolerance policy.
