Student forms / form2-course-delete-refused

form2-course-delete-refused

Remove Record on a course. FORM2's COURSE block has Delete Allowed No, so Forms refuses with FRM-41049 before the master-detail check (ON-CHECK-DELETE-MASTER) could run.

0defects

360values match

0tolerated by policy

0waived

0unmapped

Three runs from a fresh database gave byte-identical diffs. Behaviour that looks odd in the migrated app but is the original's: faithful to the original and waivers. Files: scenario, golden record, target record, diff (JSON).

Scenario steps

Items are addressed by their Forms name (BLOCK.ITEM[row]), the same name in the original and, through the mapping, in the migrated app.

#	Step	Action
0		Open form `QAFE_FORM2`
1	show courses	Click `INSTRUCTOR.PUSH_BUTTON1`
2	delete	Click `Toolbar.Remove Record`

Screens, step by step

Left: the original Oracle Forms application, recorded on a virtual display. Right: the migrated application in headless Chromium. Screenshots are evidence only; the comparison works on the recorded values.

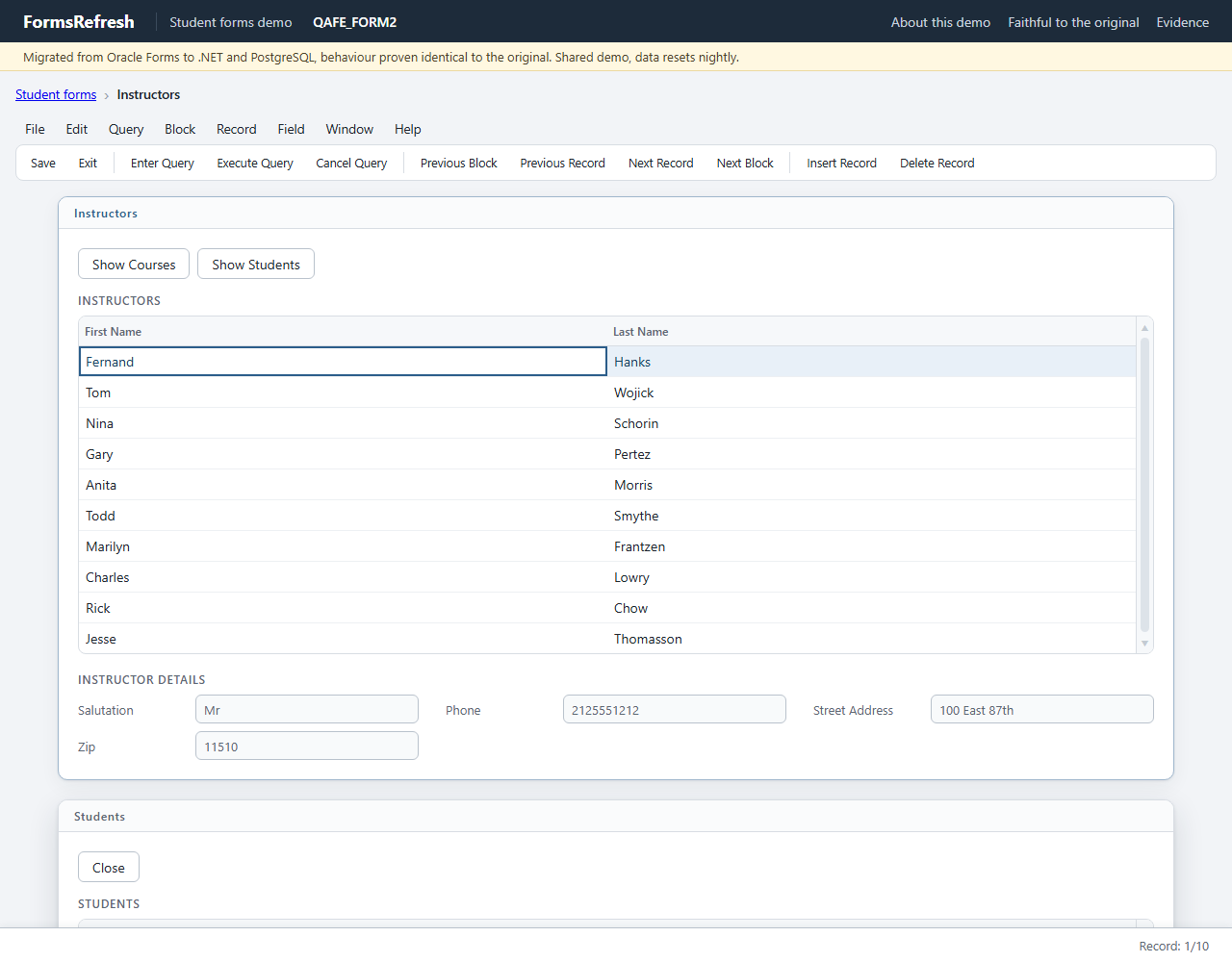

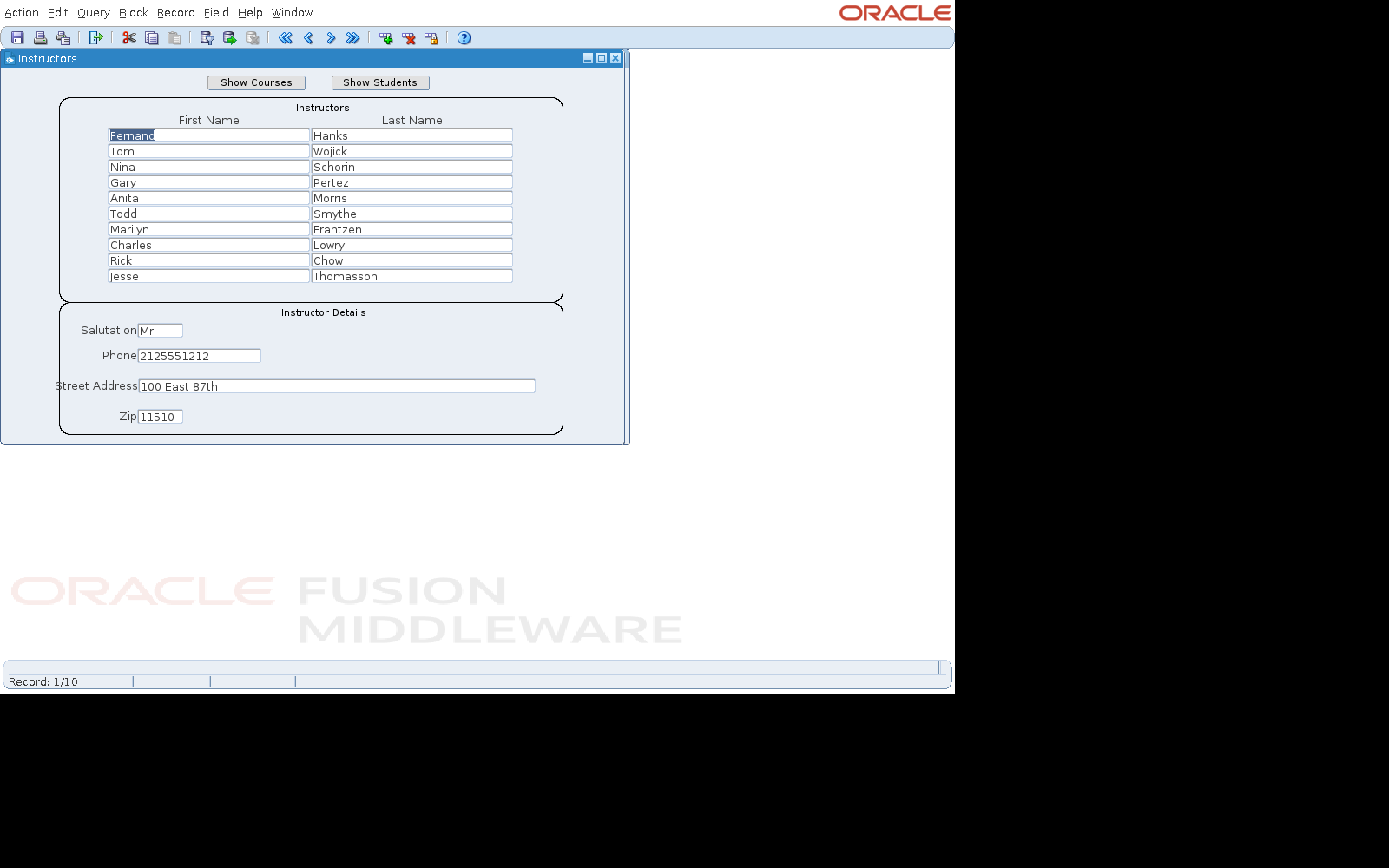

Step 0: open QAFE_FORM2

Original (Oracle Forms 14.1.2), step 00-open — Original (Oracle Forms 14.1.2)

Migrated (.NET, PostgreSQL), step 00-open — Migrated (.NET, PostgreSQL)

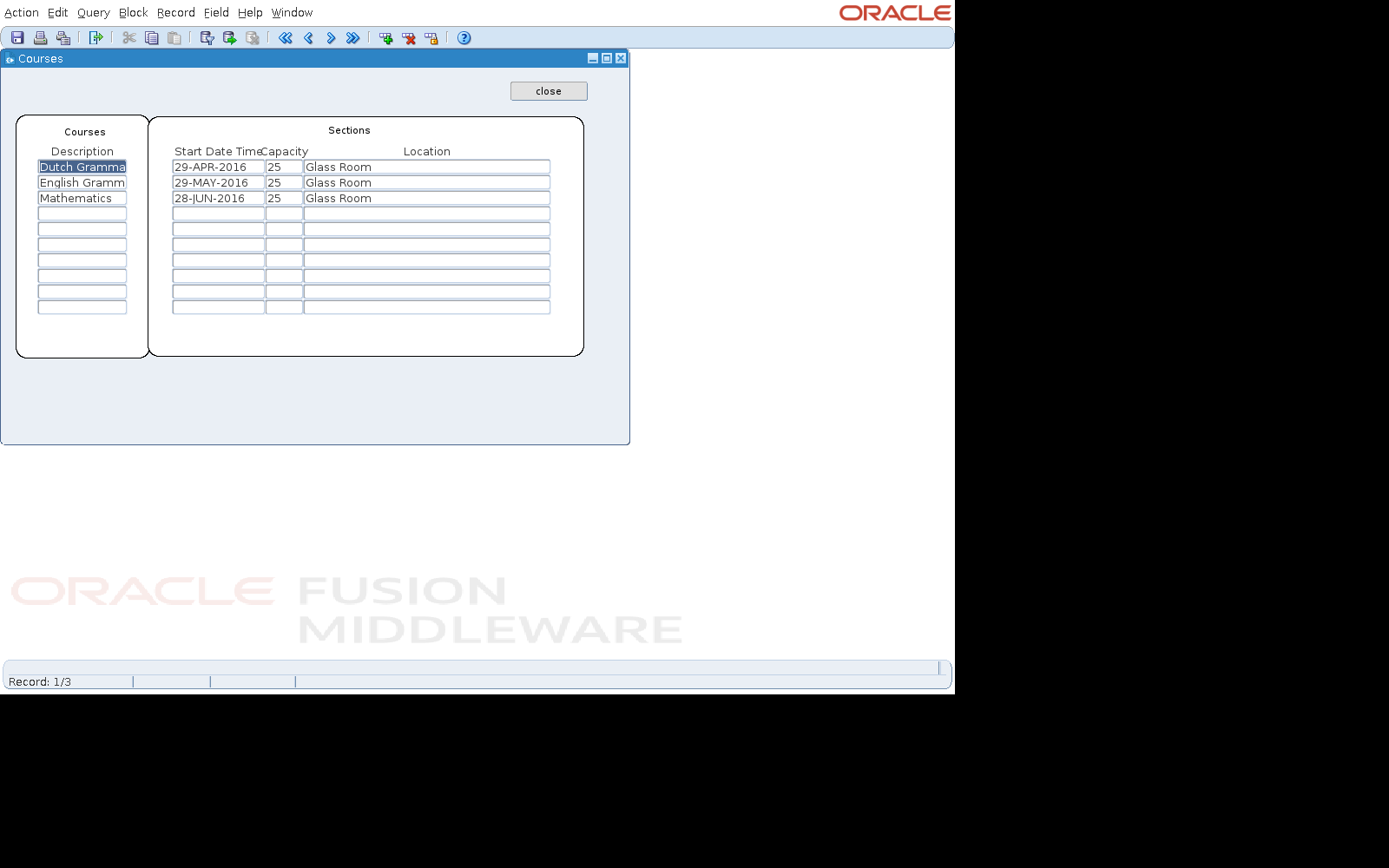

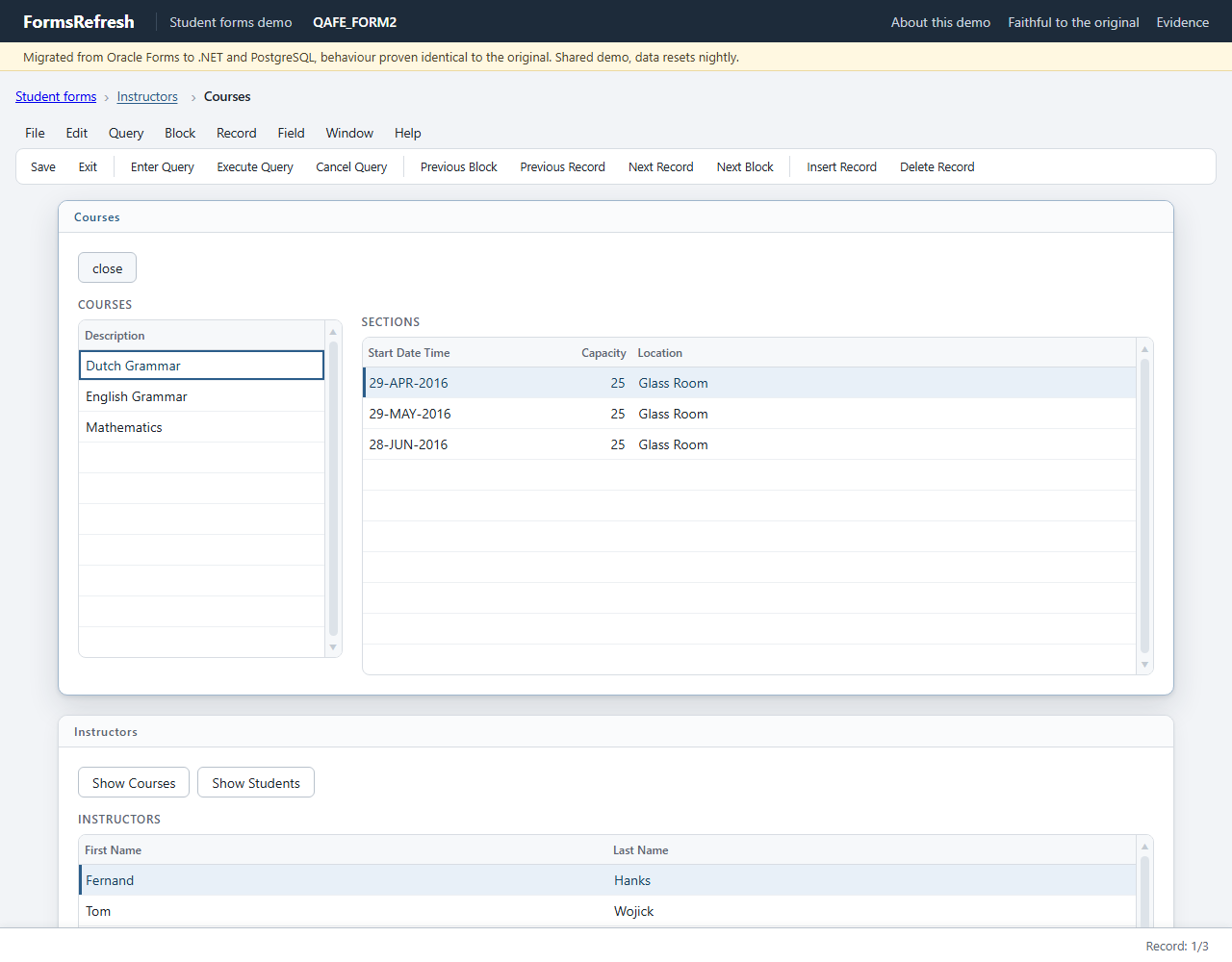

Step 1: show courses

Original (Oracle Forms 14.1.2), step 01-show-courses — Original (Oracle Forms 14.1.2)

Migrated (.NET, PostgreSQL), step 01-show-courses — Migrated (.NET, PostgreSQL)

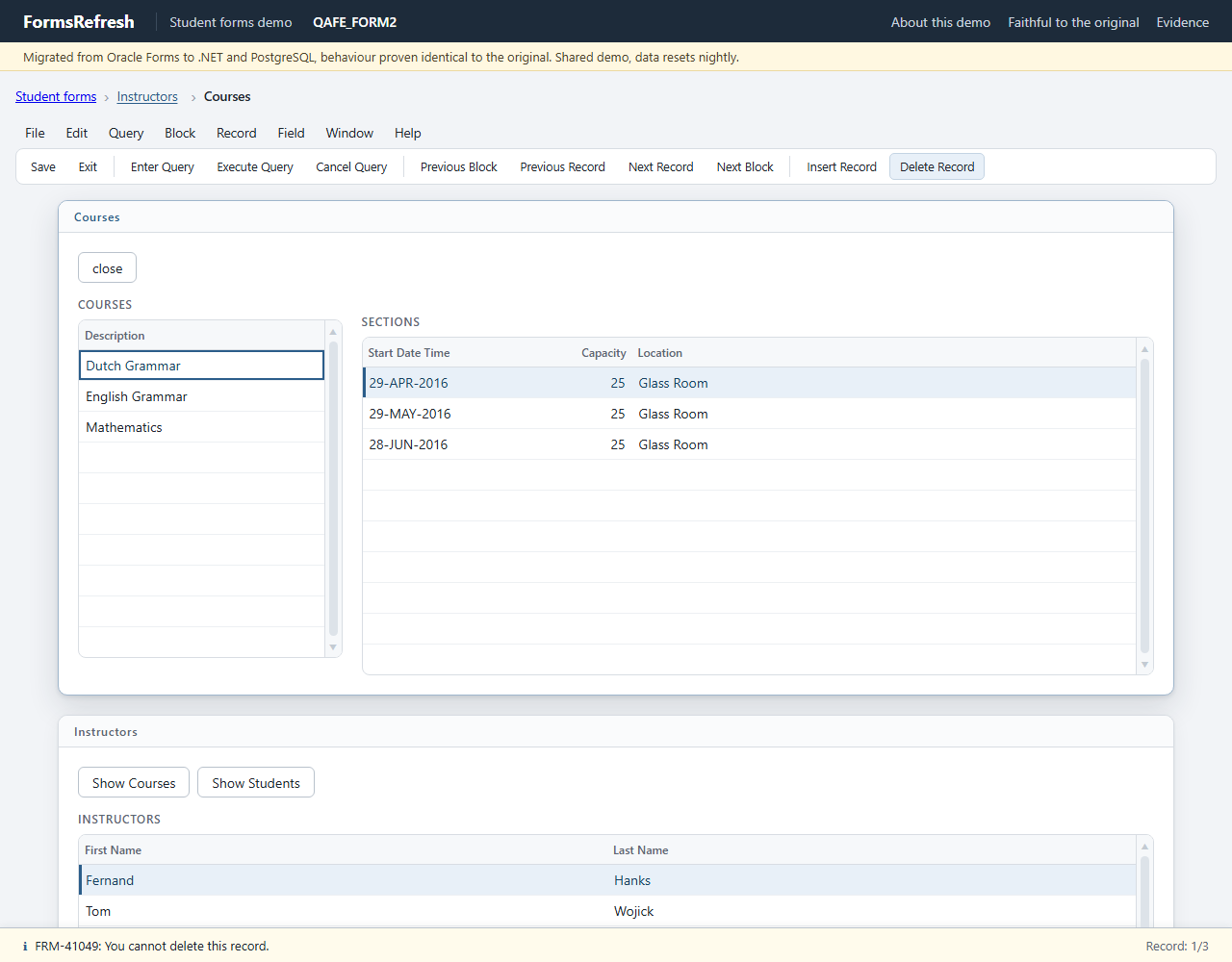

Step 2: delete

Original (Oracle Forms 14.1.2), step 02-delete — Original (Oracle Forms 14.1.2)

Migrated (.NET, PostgreSQL), step 02-delete — Migrated (.NET, PostgreSQL)

Golden record of the original

After each step: the focus, the displayed values that changed, the message line and any alert. The full record (every item of every step, windows, lists of values) is in the JSON file.

#	Step	Action (by name)	Focus after	Displayed values that changed	Message line
0		`Open form QAFE_FORM2`	`INSTRUCTOR.FIRST_NAME[0]`	`INSTRUCTOR.FIRST_NAME[0]` = Fernand `INSTRUCTOR.FIRST_NAME[1]` = Tom `INSTRUCTOR.FIRST_NAME[2]` = Nina `INSTRUCTOR.FIRST_NAME[3]` = Gary `INSTRUCTOR.FIRST_NAME[4]` = Anita `INSTRUCTOR.FIRST_NAME[5]` = Todd `INSTRUCTOR.FIRST_NAME[6]` = Marilyn `INSTRUCTOR.FIRST_NAME[7]` = Charles `INSTRUCTOR.FIRST_NAME[8]` = Rick `INSTRUCTOR.FIRST_NAME[9]` = Jesse `INSTRUCTOR.LAST_NAME[0]` = Hanks `INSTRUCTOR.LAST_NAME[1]` = Wojick `INSTRUCTOR.LAST_NAME[2]` = Schorin `INSTRUCTOR.LAST_NAME[3]` = Pertez `INSTRUCTOR.LAST_NAME[4]` = Morris `INSTRUCTOR.LAST_NAME[5]` = Smythe `INSTRUCTOR.LAST_NAME[6]` = Frantzen `INSTRUCTOR.LAST_NAME[7]` = Lowry `INSTRUCTOR.LAST_NAME[8]` = Chow `INSTRUCTOR.LAST_NAME[9]` = Thomasson `INSTRUCTOR.PHONE[0]` = 2125551212 `INSTRUCTOR.SALUTATION[0]` = Mr `INSTRUCTOR.STREET_ADDRESS[0]` = 100 East 87th `INSTRUCTOR.ZIP[0]` = 11510
1	show courses	`Click INSTRUCTOR.PUSH_BUTTON1`	`COURSE.DESCRIPTION[0]`	`COURSE.DESCRIPTION[0]` = Dutch Grammar `COURSE.DESCRIPTION[1]` = English Grammar `COURSE.DESCRIPTION[2]` = Mathematics `SECTION.CAPACITY[0]` = 25 `SECTION.CAPACITY[1]` = 25 `SECTION.CAPACITY[2]` = 25 `SECTION.LOCATION[0]` = Glass Room `SECTION.LOCATION[1]` = Glass Room `SECTION.LOCATION[2]` = Glass Room `SECTION.START_DATE_TIME[0]` = 29-APR-2016 `SECTION.START_DATE_TIME[1]` = 29-MAY-2016 `SECTION.START_DATE_TIME[2]` = 28-JUN-2016
2	delete	`Click Toolbar.Remove Record`	`COURSE.DESCRIPTION[0]`		FRM-41049: You cannot delete this record.

Database effects

None: the scenario changes no row and draws no sequence value.

Classified diff against the migrated app

Diff: form2-course-delete-refused
counts: match 360, tolerated 0, waived 0, defect 0, unmapped 0, harness 0
generated-id pairs (source -> target): none

waivers:
  S1 [proposed] Screen-reader announcement of the COURSE_NO item read as a message: applied to 0 value(s)

Waivers

No waiver applies to this scenario: every compared value matches or is within the tolerance policy.
