Student forms / form2-courses

form2-courses

Show Courses queries COURSE and shows the Courses window; choosing another course coordinates its sections (ON-POPULATE-DETAILS, QUERY_MASTER_DETAILS, CHECK_PACKAGE_FAILURE); close hides the window and returns to the instructors.

0defects

580values match

0tolerated by policy

0waived

0unmapped

Three runs from a fresh database gave byte-identical diffs. Behaviour that looks odd in the migrated app but is the original's: faithful to the original and waivers. Files: scenario, golden record, target record, diff (JSON).

Scenario steps

Items are addressed by their Forms name (BLOCK.ITEM[row]), the same name in the original and, through the mapping, in the migrated app.

#	Step	Action
0		Open form `QAFE_FORM2`
1	show courses	Click `INSTRUCTOR.PUSH_BUTTON1`
2	second course	Click `COURSE.DESCRIPTION[1]`
3	third course	Click `COURSE.DESCRIPTION[2]`
4	close	Click `SECTION.PUSH_BUTTON3`

Screens, step by step

Left: the original Oracle Forms application, recorded on a virtual display. Right: the migrated application in headless Chromium. Screenshots are evidence only; the comparison works on the recorded values.

Step 0: open QAFE_FORM2

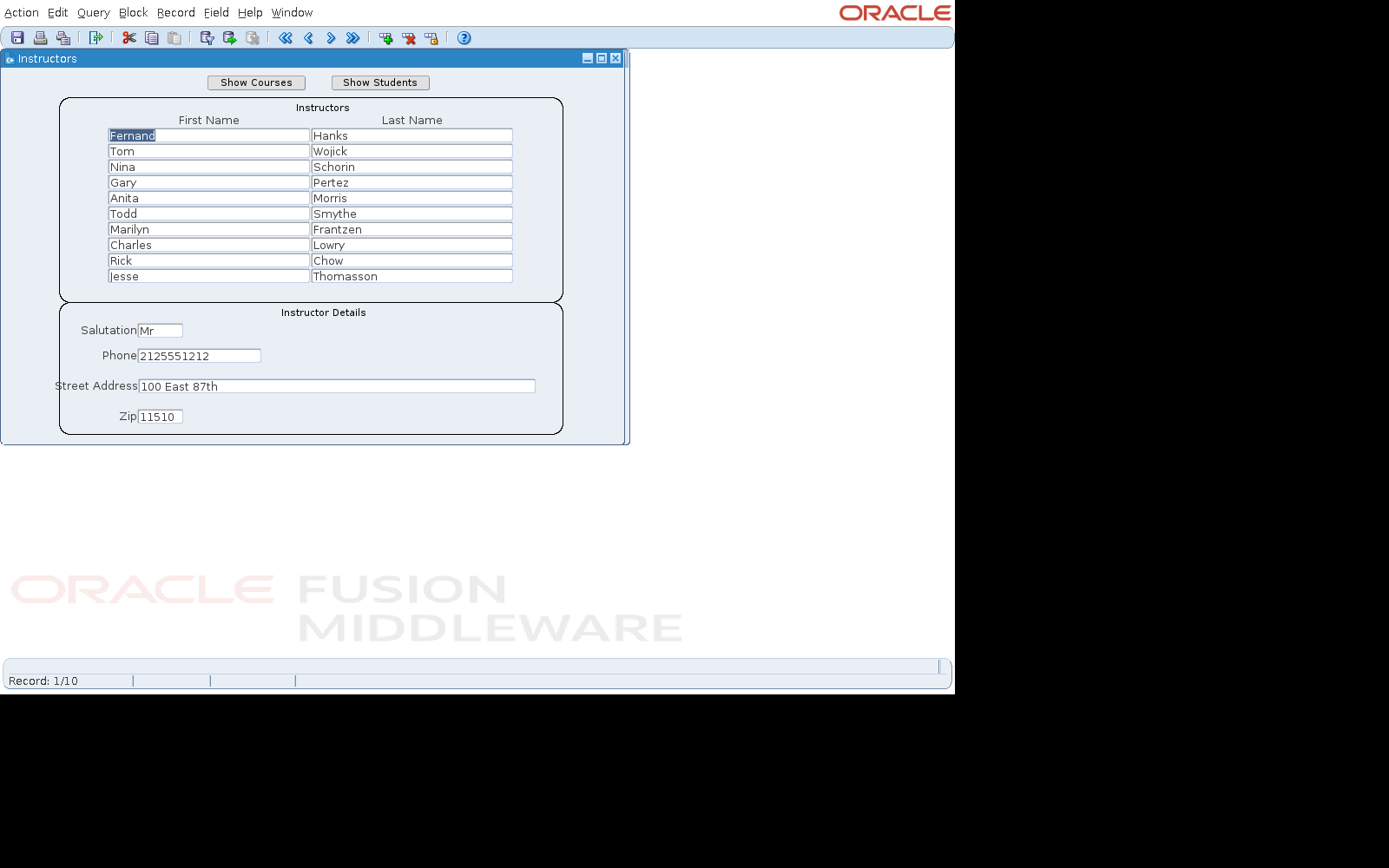

Original (Oracle Forms 14.1.2), step 00-open — Original (Oracle Forms 14.1.2)

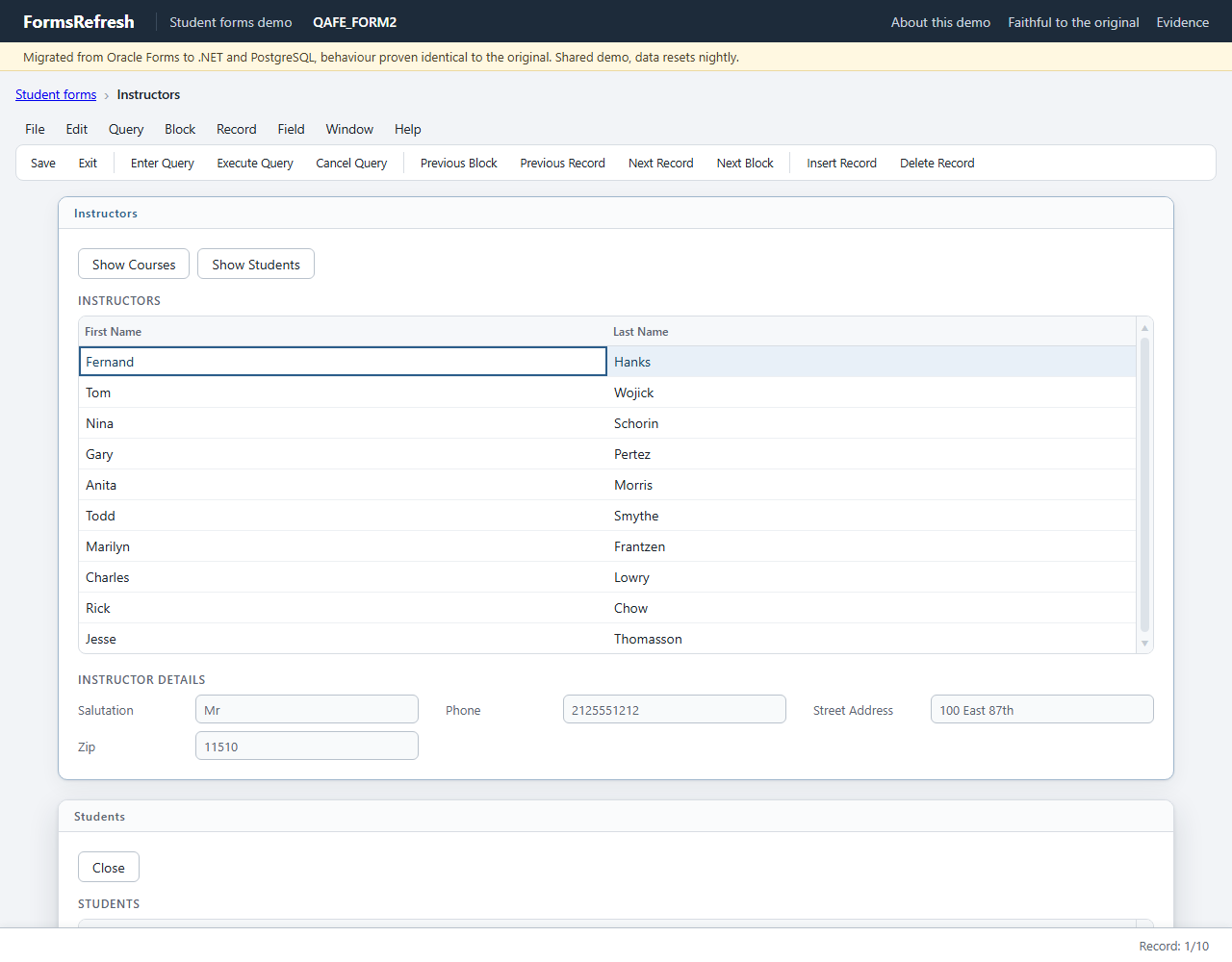

Migrated (.NET, PostgreSQL), step 00-open — Migrated (.NET, PostgreSQL)

Step 1: show courses

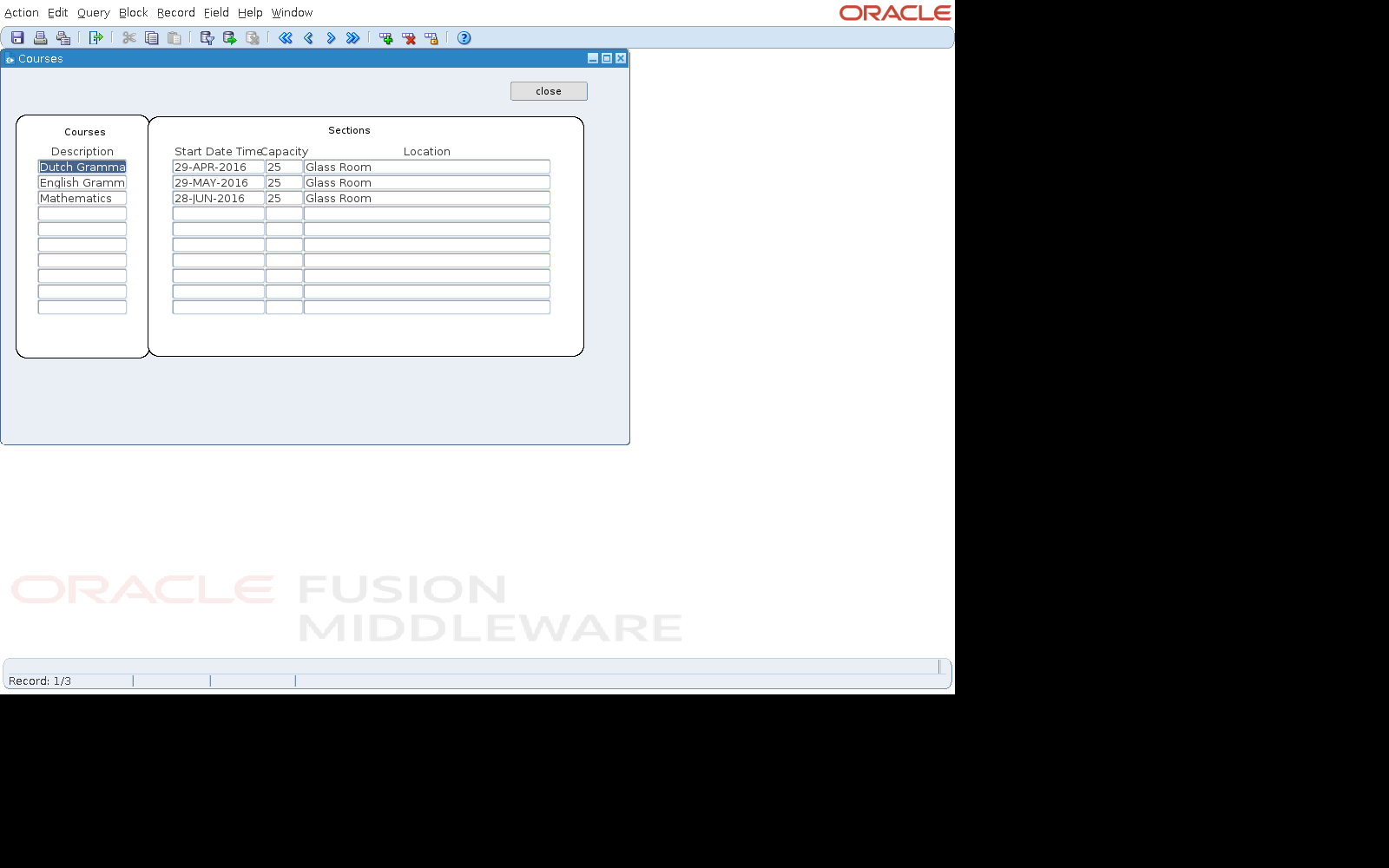

Original (Oracle Forms 14.1.2), step 01-show-courses — Original (Oracle Forms 14.1.2)

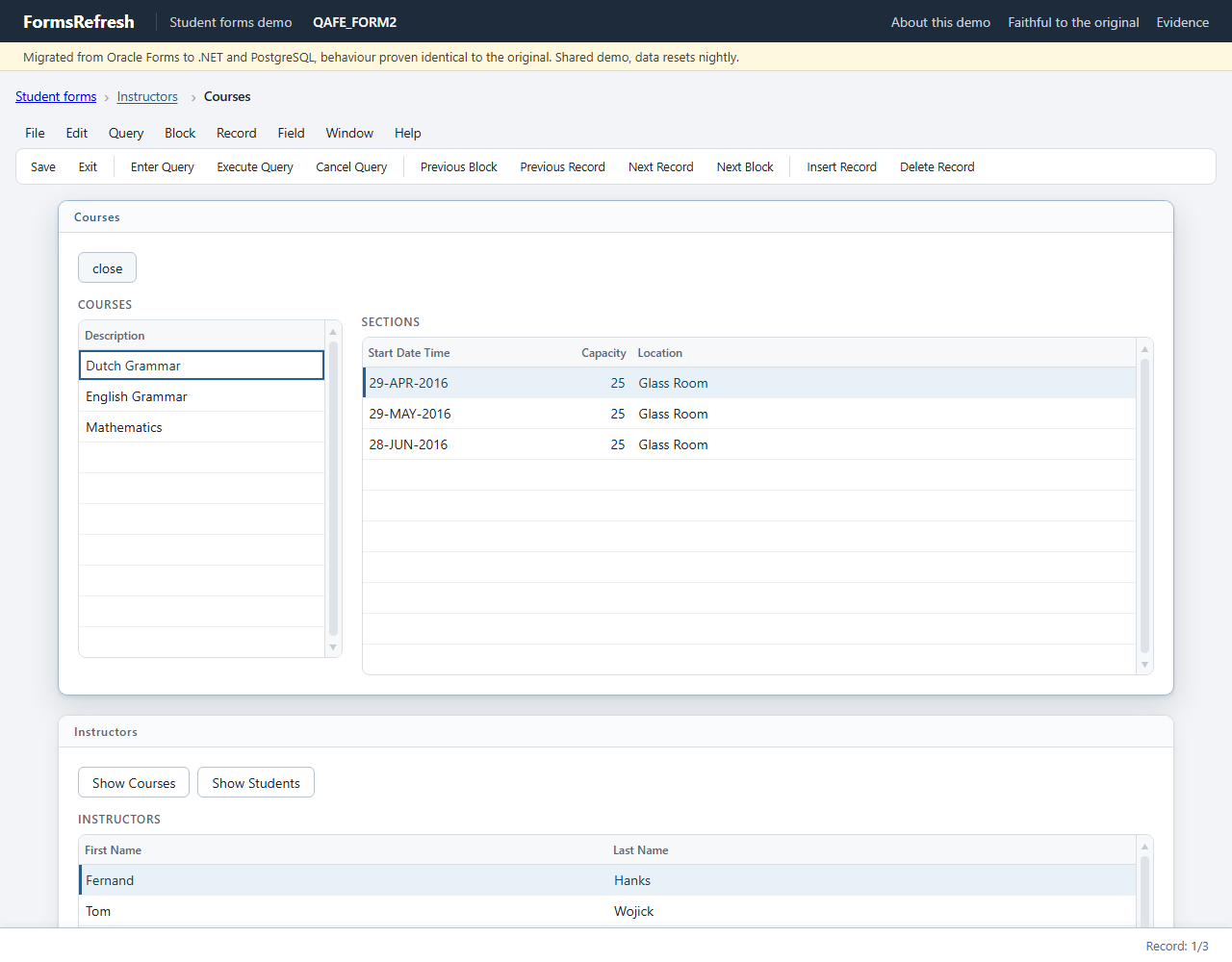

Migrated (.NET, PostgreSQL), step 01-show-courses — Migrated (.NET, PostgreSQL)

Step 2: second course

Original (Oracle Forms 14.1.2), step 02-second-course — Original (Oracle Forms 14.1.2)

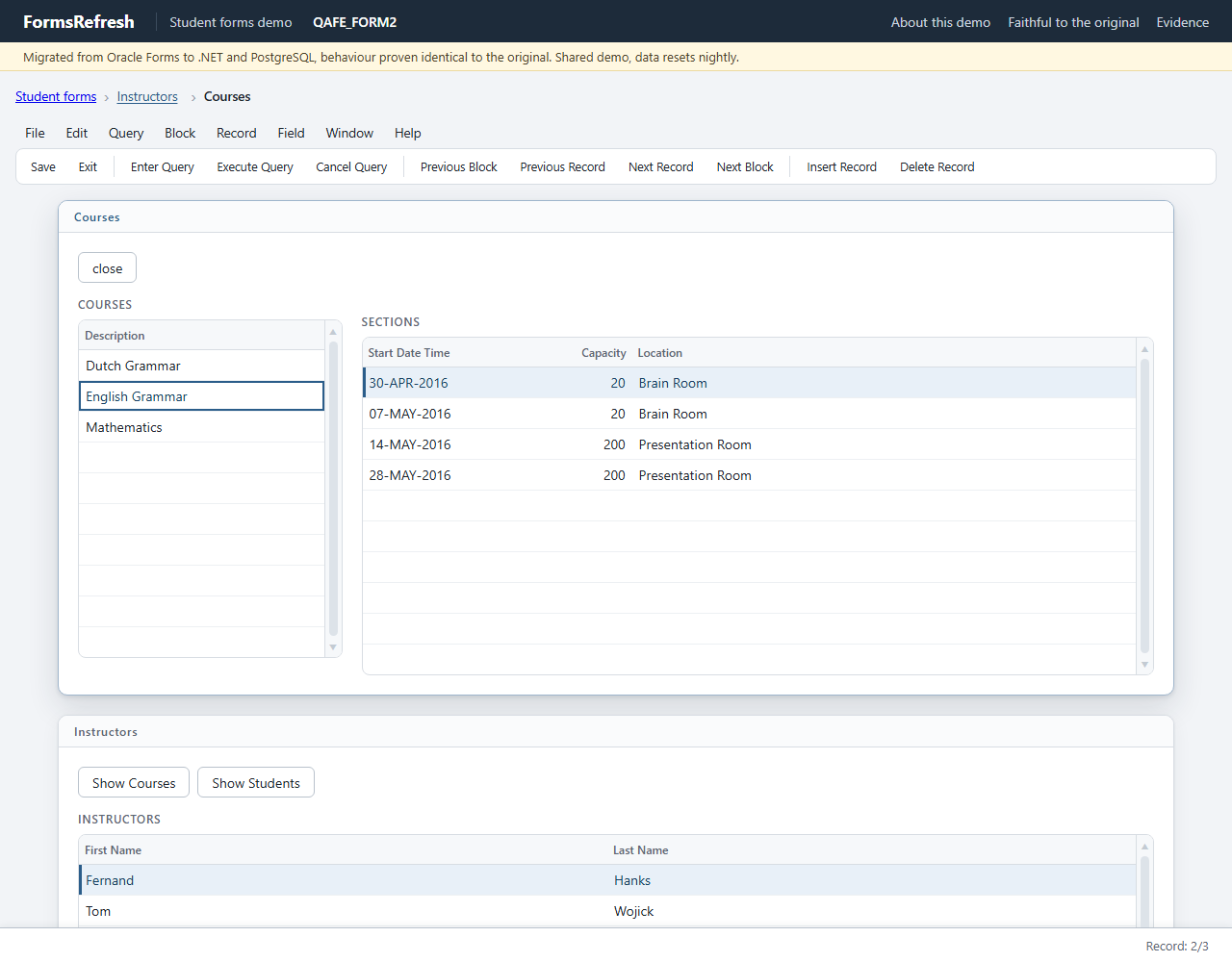

Migrated (.NET, PostgreSQL), step 02-second-course — Migrated (.NET, PostgreSQL)

Step 3: third course

Original (Oracle Forms 14.1.2), step 03-third-course — Original (Oracle Forms 14.1.2)

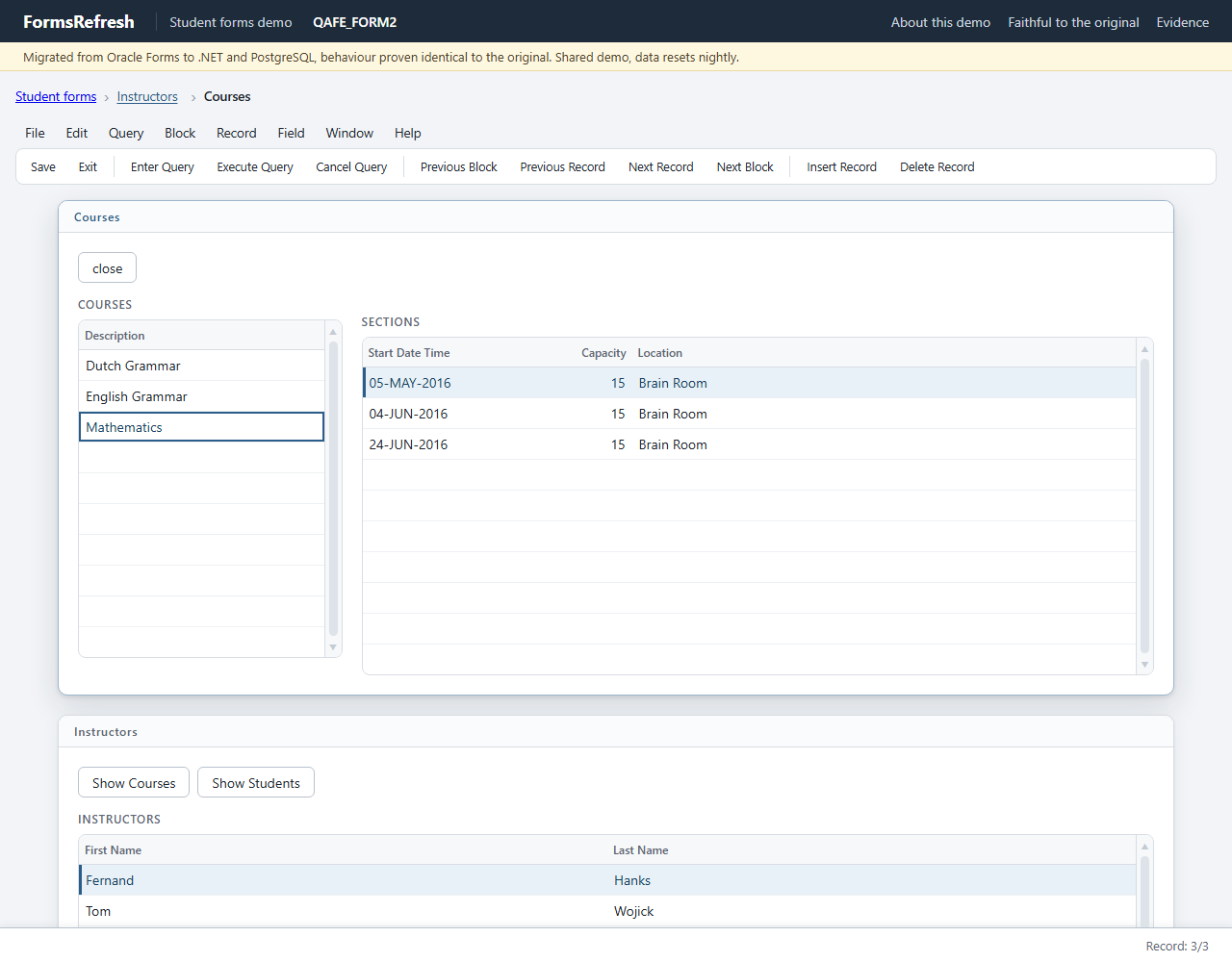

Migrated (.NET, PostgreSQL), step 03-third-course — Migrated (.NET, PostgreSQL)

Step 4: close

Original (Oracle Forms 14.1.2), step 04-close — Original (Oracle Forms 14.1.2)

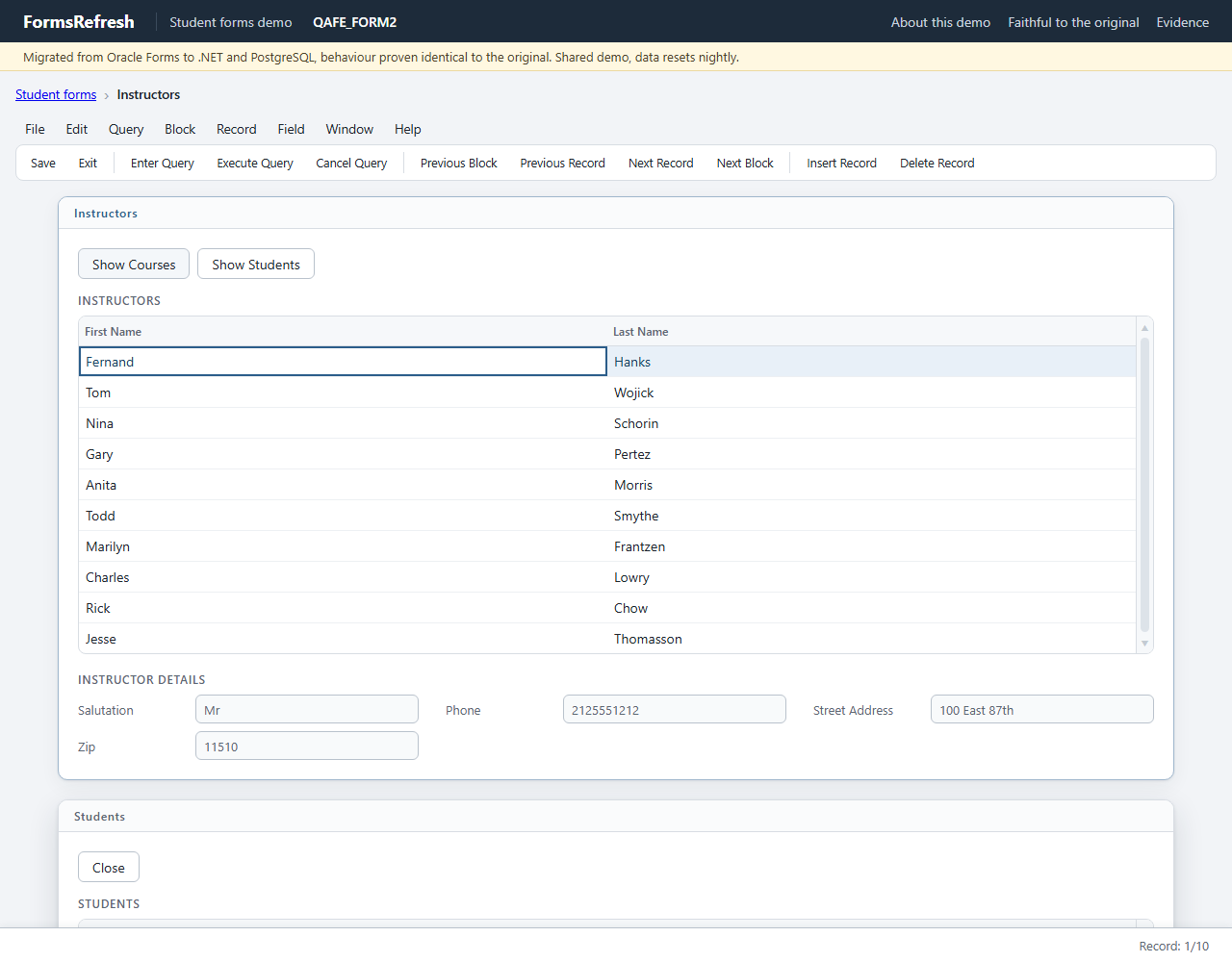

Migrated (.NET, PostgreSQL), step 04-close — Migrated (.NET, PostgreSQL)

Golden record of the original

After each step: the focus, the displayed values that changed, the message line and any alert. The full record (every item of every step, windows, lists of values) is in the JSON file.

#	Step	Action (by name)	Focus after	Displayed values that changed
0		`Open form QAFE_FORM2`	`INSTRUCTOR.FIRST_NAME[0]`	`INSTRUCTOR.FIRST_NAME[0]` = Fernand `INSTRUCTOR.FIRST_NAME[1]` = Tom `INSTRUCTOR.FIRST_NAME[2]` = Nina `INSTRUCTOR.FIRST_NAME[3]` = Gary `INSTRUCTOR.FIRST_NAME[4]` = Anita `INSTRUCTOR.FIRST_NAME[5]` = Todd `INSTRUCTOR.FIRST_NAME[6]` = Marilyn `INSTRUCTOR.FIRST_NAME[7]` = Charles `INSTRUCTOR.FIRST_NAME[8]` = Rick `INSTRUCTOR.FIRST_NAME[9]` = Jesse `INSTRUCTOR.LAST_NAME[0]` = Hanks `INSTRUCTOR.LAST_NAME[1]` = Wojick `INSTRUCTOR.LAST_NAME[2]` = Schorin `INSTRUCTOR.LAST_NAME[3]` = Pertez `INSTRUCTOR.LAST_NAME[4]` = Morris `INSTRUCTOR.LAST_NAME[5]` = Smythe `INSTRUCTOR.LAST_NAME[6]` = Frantzen `INSTRUCTOR.LAST_NAME[7]` = Lowry `INSTRUCTOR.LAST_NAME[8]` = Chow `INSTRUCTOR.LAST_NAME[9]` = Thomasson `INSTRUCTOR.PHONE[0]` = 2125551212 `INSTRUCTOR.SALUTATION[0]` = Mr `INSTRUCTOR.STREET_ADDRESS[0]` = 100 East 87th `INSTRUCTOR.ZIP[0]` = 11510
1	show courses	`Click INSTRUCTOR.PUSH_BUTTON1`	`COURSE.DESCRIPTION[0]`	`COURSE.DESCRIPTION[0]` = Dutch Grammar `COURSE.DESCRIPTION[1]` = English Grammar `COURSE.DESCRIPTION[2]` = Mathematics `SECTION.CAPACITY[0]` = 25 `SECTION.CAPACITY[1]` = 25 `SECTION.CAPACITY[2]` = 25 `SECTION.LOCATION[0]` = Glass Room `SECTION.LOCATION[1]` = Glass Room `SECTION.LOCATION[2]` = Glass Room `SECTION.START_DATE_TIME[0]` = 29-APR-2016 `SECTION.START_DATE_TIME[1]` = 29-MAY-2016 `SECTION.START_DATE_TIME[2]` = 28-JUN-2016
2	second course	`Click COURSE.DESCRIPTION[1]`	`COURSE.DESCRIPTION[1]`	`SECTION.CAPACITY[0]` = 20 `SECTION.CAPACITY[1]` = 20 `SECTION.CAPACITY[2]` = 200 `SECTION.CAPACITY[3]` = 200 `SECTION.LOCATION[0]` = Brain Room `SECTION.LOCATION[1]` = Brain Room `SECTION.LOCATION[2]` = Presentation Room `SECTION.LOCATION[3]` = Presentation Room `SECTION.START_DATE_TIME[0]` = 30-APR-2016 `SECTION.START_DATE_TIME[1]` = 07-MAY-2016 `SECTION.START_DATE_TIME[2]` = 14-MAY-2016 `SECTION.START_DATE_TIME[3]` = 28-MAY-2016
3	third course	`Click COURSE.DESCRIPTION[2]`	`COURSE.DESCRIPTION[2]`	`SECTION.CAPACITY[0]` = 15 `SECTION.CAPACITY[1]` = 15 `SECTION.CAPACITY[2]` = 15 `SECTION.LOCATION[2]` = Brain Room `SECTION.START_DATE_TIME[0]` = 05-MAY-2016 `SECTION.START_DATE_TIME[1]` = 04-JUN-2016 `SECTION.START_DATE_TIME[2]` = 24-JUN-2016
4	close	`Click SECTION.PUSH_BUTTON3`	`INSTRUCTOR.FIRST_NAME[0]`

Database effects

None: the scenario changes no row and draws no sequence value.

Classified diff against the migrated app

Diff: form2-courses
counts: match 580, tolerated 0, waived 0, defect 0, unmapped 0, harness 0
generated-id pairs (source -> target): none

waivers:
  S1 [proposed] Screen-reader announcement of the COURSE_NO item read as a message: applied to 0 value(s)

Waivers

No waiver applies to this scenario: every compared value matches or is within the tolerance policy.
