Student forms / form2-student-update

form2-student-update

Change a student's employer in the Students window and save; the database trigger on STUDENT checks the first name on the update (ORA-20101 when it is empty; not here).

0defects

371values match

0tolerated by policy

0waived

0unmapped

Three runs from a fresh database gave byte-identical diffs. Behaviour that looks odd in the migrated app but is the original's: faithful to the original and waivers. Files: scenario, golden record, target record, diff (JSON).

Scenario steps

Items are addressed by their Forms name (BLOCK.ITEM[row]), the same name in the original and, through the mapping, in the migrated app.

#	Step	Action
0		Open form `QAFE_FORM2`
1	show students	Click `INSTRUCTOR.PUSH_BUTTON2`
2		Type `STUDENT.EMPLOYER[0]` = FormsRefresh Labs
3	save	Click `Toolbar.Save`

Screens, step by step

Left: the original Oracle Forms application, recorded on a virtual display. Right: the migrated application in headless Chromium. Screenshots are evidence only; the comparison works on the recorded values.

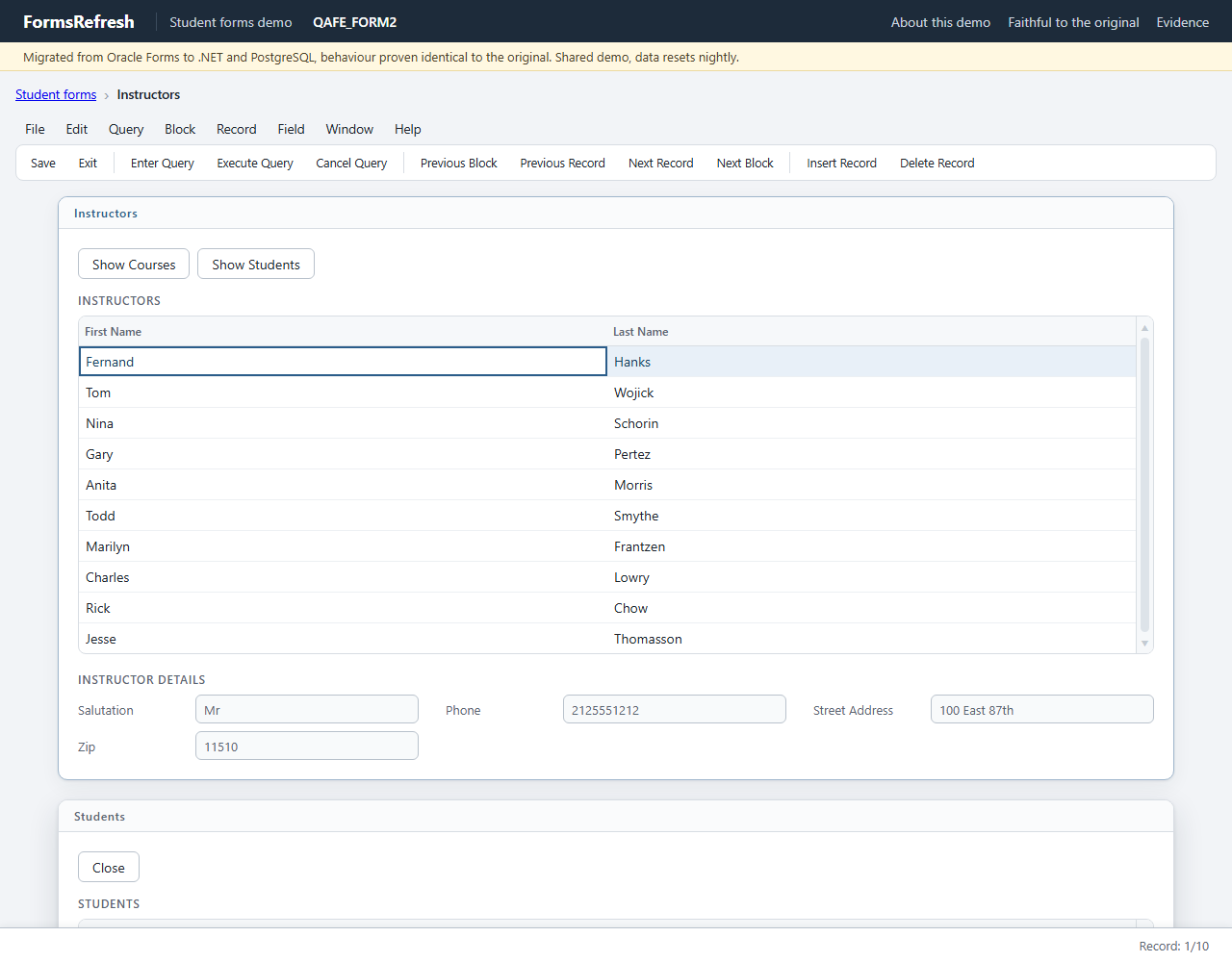

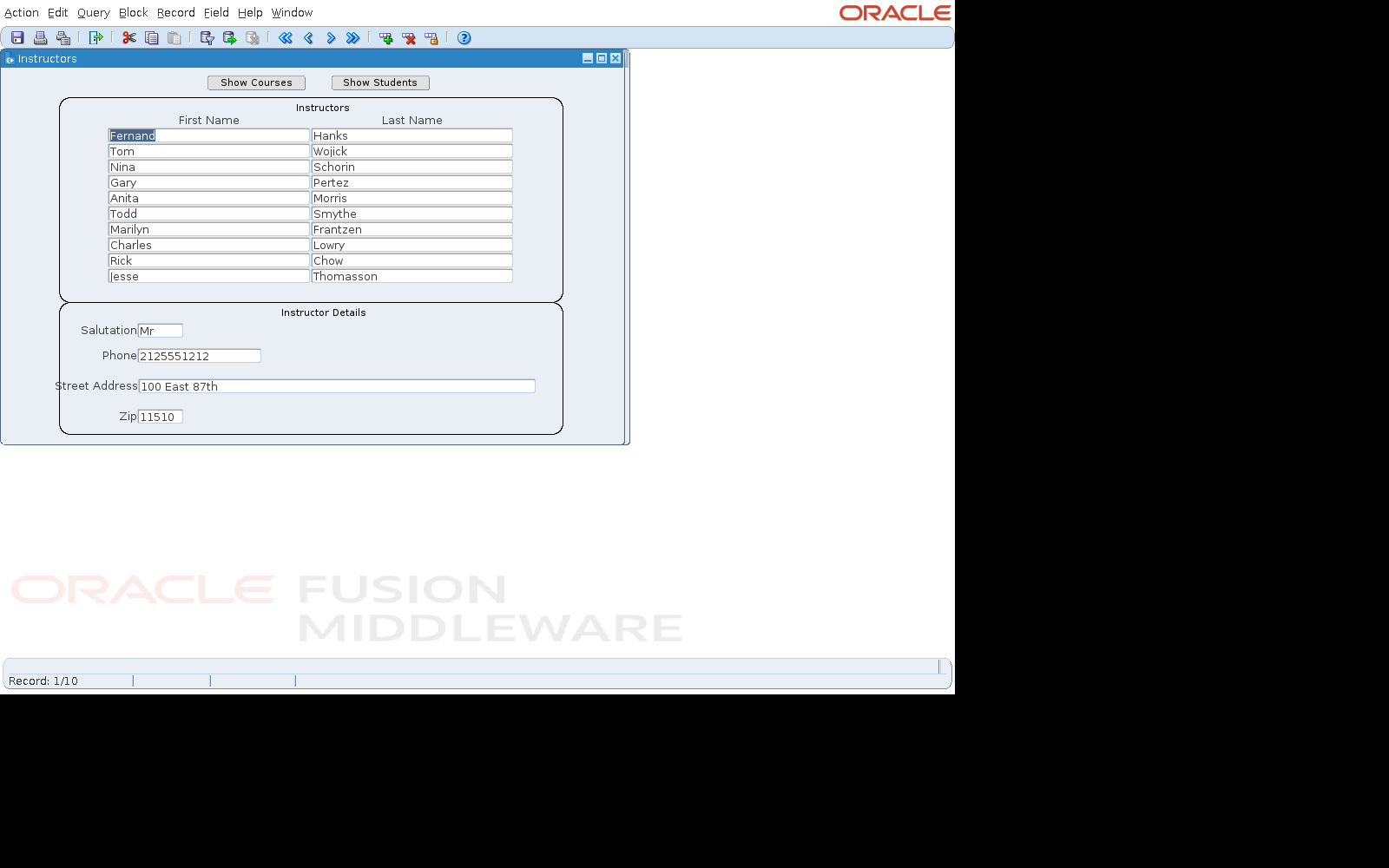

Step 0: open QAFE_FORM2

Original (Oracle Forms 14.1.2), step 00-open — Original (Oracle Forms 14.1.2)

Migrated (.NET, PostgreSQL), step 00-open — Migrated (.NET, PostgreSQL)

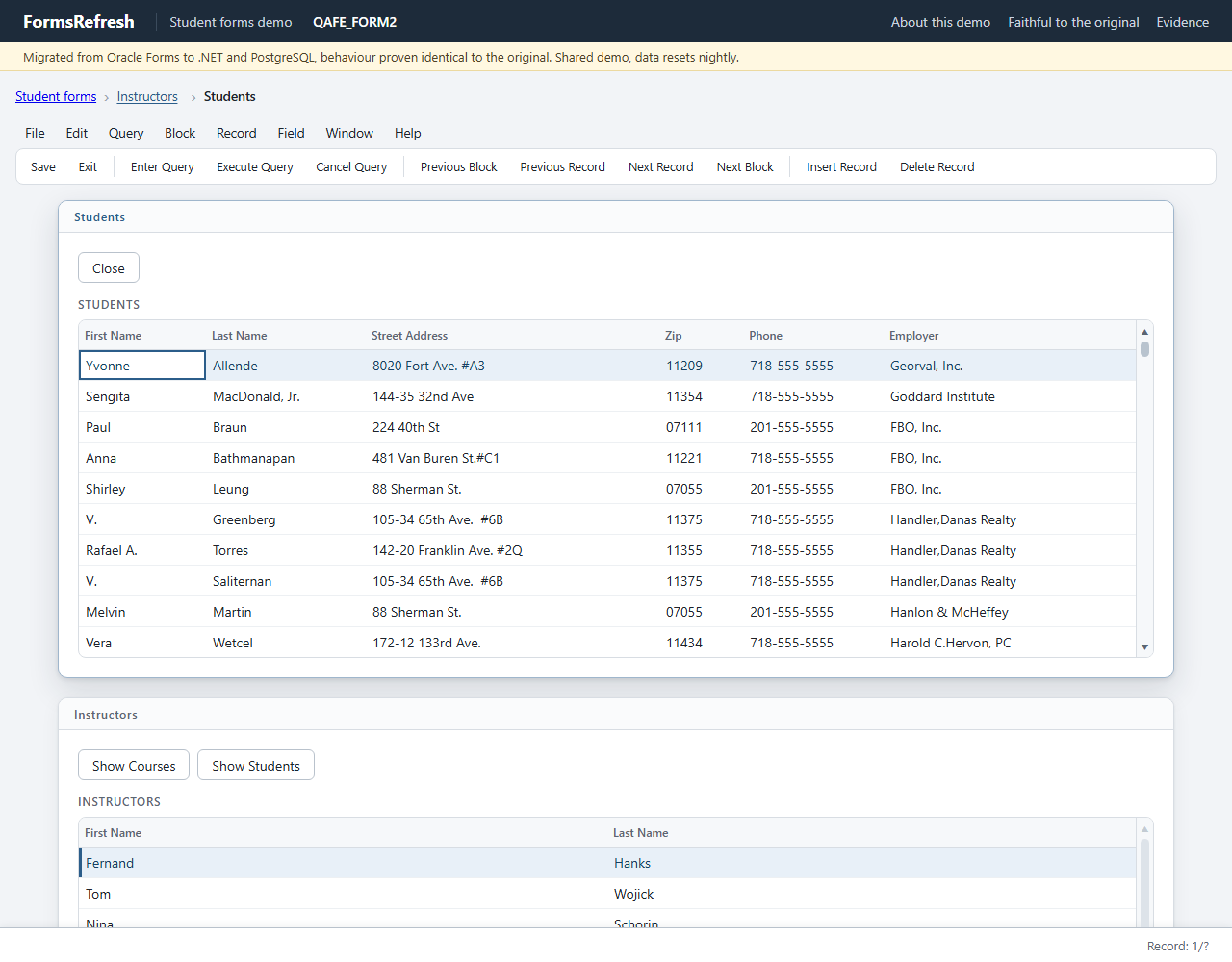

Step 1: show students

Original (Oracle Forms 14.1.2), step 01-show-students — Original (Oracle Forms 14.1.2)

Migrated (.NET, PostgreSQL), step 01-show-students — Migrated (.NET, PostgreSQL)

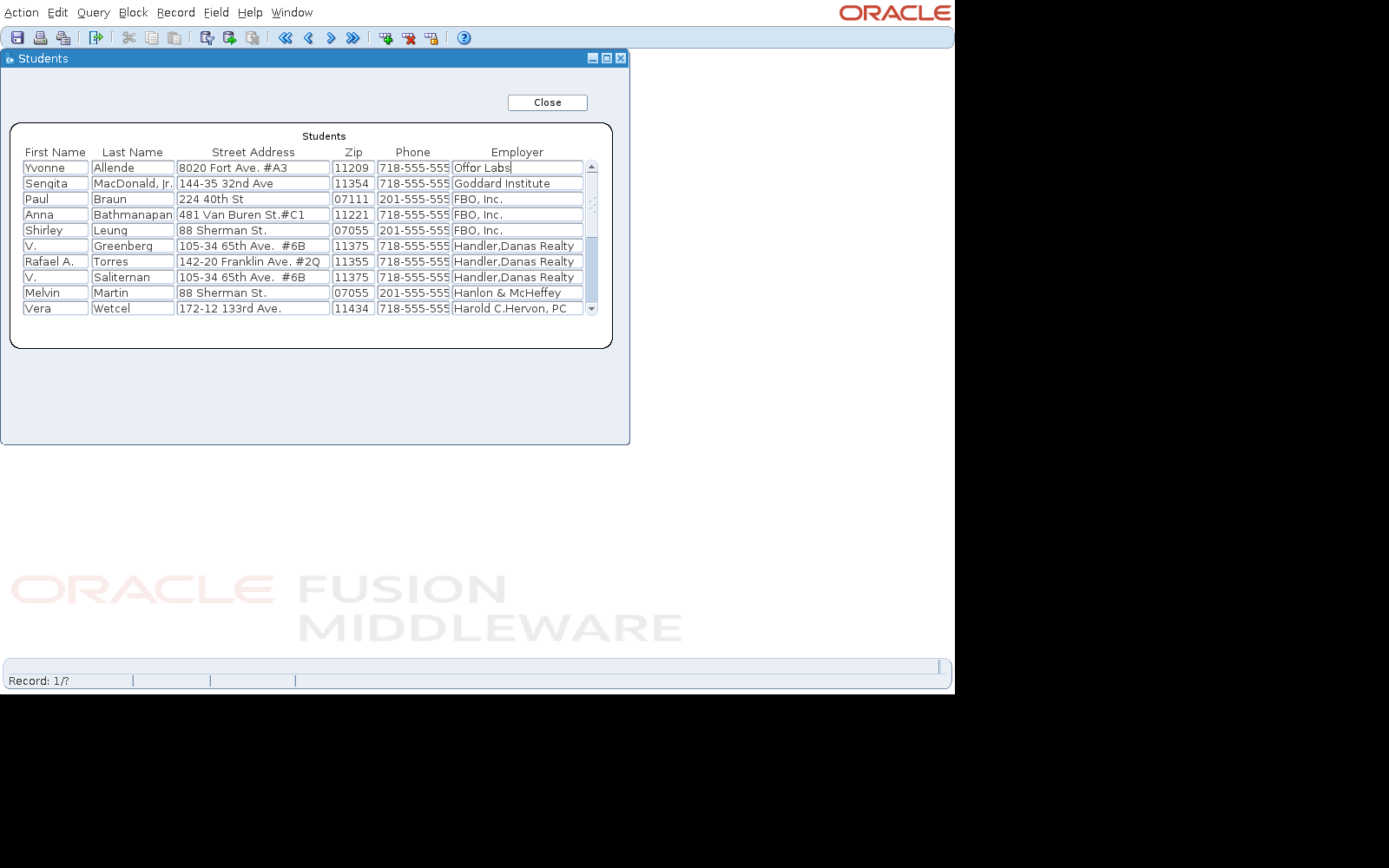

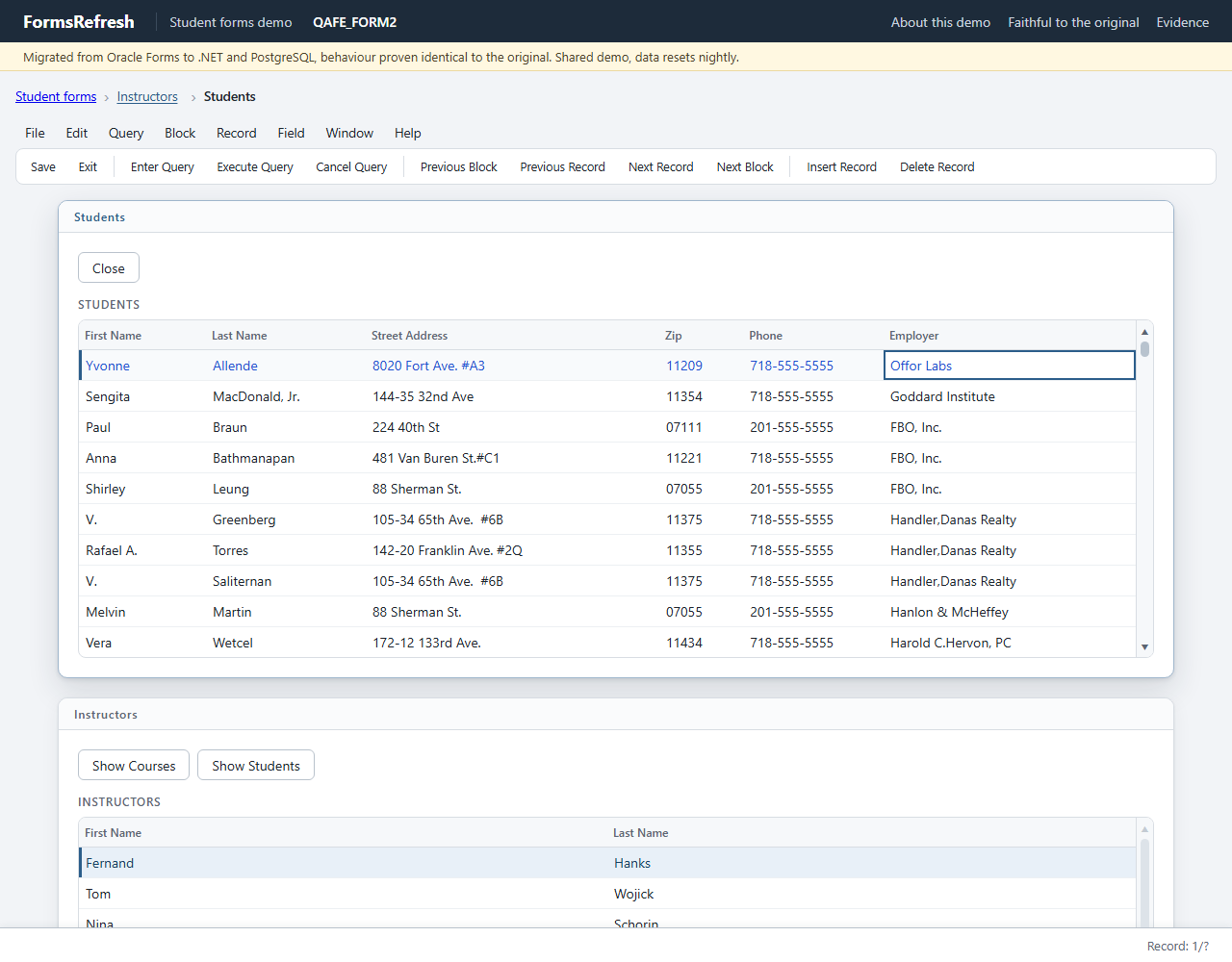

Step 2: type

Original (Oracle Forms 14.1.2), step 02-type — Original (Oracle Forms 14.1.2)

Migrated (.NET, PostgreSQL), step 02-type — Migrated (.NET, PostgreSQL)

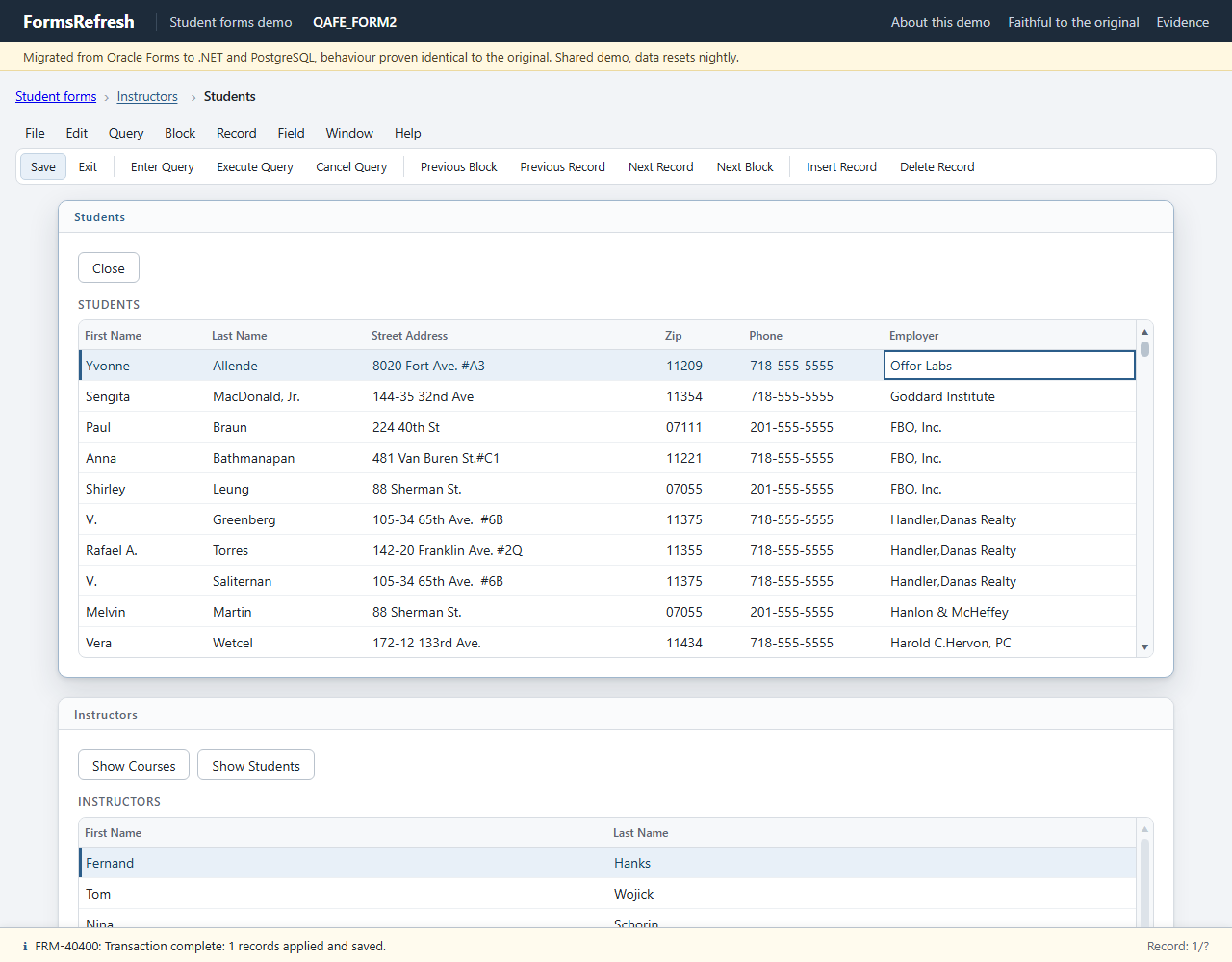

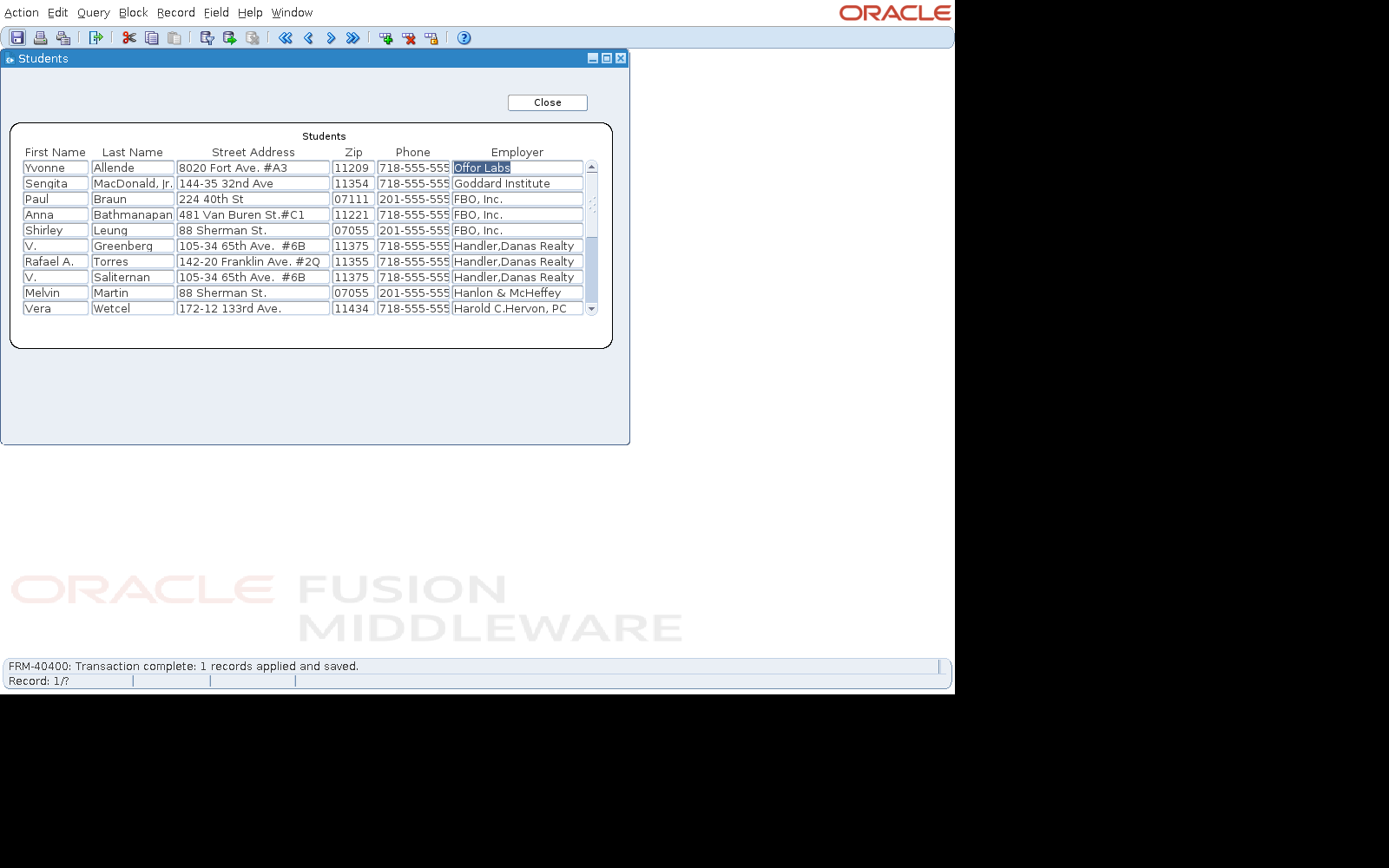

Step 3: save

Original (Oracle Forms 14.1.2), step 03-save — Original (Oracle Forms 14.1.2)

Migrated (.NET, PostgreSQL), step 03-save — Migrated (.NET, PostgreSQL)

Golden record of the original

After each step: the focus, the displayed values that changed, the message line and any alert. The full record (every item of every step, windows, lists of values) is in the JSON file.

#	Step	Action (by name)	Focus after	Displayed values that changed	Message line
0		`Open form QAFE_FORM2`	`INSTRUCTOR.FIRST_NAME[0]`	`INSTRUCTOR.FIRST_NAME[0]` = Fernand `INSTRUCTOR.FIRST_NAME[1]` = Tom `INSTRUCTOR.FIRST_NAME[2]` = Nina `INSTRUCTOR.FIRST_NAME[3]` = Gary `INSTRUCTOR.FIRST_NAME[4]` = Anita `INSTRUCTOR.FIRST_NAME[5]` = Todd `INSTRUCTOR.FIRST_NAME[6]` = Marilyn `INSTRUCTOR.FIRST_NAME[7]` = Charles `INSTRUCTOR.FIRST_NAME[8]` = Rick `INSTRUCTOR.FIRST_NAME[9]` = Jesse `INSTRUCTOR.LAST_NAME[0]` = Hanks `INSTRUCTOR.LAST_NAME[1]` = Wojick `INSTRUCTOR.LAST_NAME[2]` = Schorin `INSTRUCTOR.LAST_NAME[3]` = Pertez `INSTRUCTOR.LAST_NAME[4]` = Morris `INSTRUCTOR.LAST_NAME[5]` = Smythe `INSTRUCTOR.LAST_NAME[6]` = Frantzen `INSTRUCTOR.LAST_NAME[7]` = Lowry `INSTRUCTOR.LAST_NAME[8]` = Chow `INSTRUCTOR.LAST_NAME[9]` = Thomasson `INSTRUCTOR.PHONE[0]` = 2125551212 `INSTRUCTOR.SALUTATION[0]` = Mr `INSTRUCTOR.STREET_ADDRESS[0]` = 100 East 87th `INSTRUCTOR.ZIP[0]` = 11510
1	show students	`Click INSTRUCTOR.PUSH_BUTTON2`	`STUDENT.FIRST_NAME[0]`	`STUDENT.EMPLOYER[0]` = Georval, Inc. `STUDENT.EMPLOYER[1]` = Goddard Institute `STUDENT.EMPLOYER[2]` = FBO, Inc. `STUDENT.EMPLOYER[3]` = FBO, Inc. `STUDENT.EMPLOYER[4]` = FBO, Inc. `STUDENT.EMPLOYER[5]` = Handler,Danas Realty `STUDENT.EMPLOYER[6]` = Handler,Danas Realty `STUDENT.EMPLOYER[7]` = Handler,Danas Realty `STUDENT.EMPLOYER[8]` = Hanlon & McHeffey `STUDENT.EMPLOYER[9]` = Harold C.Hervon, PC `STUDENT.FIRST_NAME[0]` = Yvonne `STUDENT.FIRST_NAME[1]` = Sengita `STUDENT.FIRST_NAME[2]` = Paul `STUDENT.FIRST_NAME[3]` = Anna `STUDENT.FIRST_NAME[4]` = Shirley `STUDENT.FIRST_NAME[5]` = V. `STUDENT.FIRST_NAME[6]` = Rafael A. `STUDENT.FIRST_NAME[7]` = V. `STUDENT.FIRST_NAME[8]` = Melvin `STUDENT.FIRST_NAME[9]` = Vera `STUDENT.LAST_NAME[0]` = Allende `STUDENT.LAST_NAME[1]` = MacDonald, Jr. `STUDENT.LAST_NAME[2]` = Braun `STUDENT.LAST_NAME[3]` = Bathmanapan `STUDENT.LAST_NAME[4]` = Leung `STUDENT.LAST_NAME[5]` = Greenberg `STUDENT.LAST_NAME[6]` = Torres `STUDENT.LAST_NAME[7]` = Saliternan `STUDENT.LAST_NAME[8]` = Martin `STUDENT.LAST_NAME[9]` = Wetcel `STUDENT.PHONE[0]` = 718-555-5555 `STUDENT.PHONE[1]` = 718-555-5555 `STUDENT.PHONE[2]` = 201-555-5555 `STUDENT.PHONE[3]` = 718-555-5555 `STUDENT.PHONE[4]` = 201-555-5555 `STUDENT.PHONE[5]` = 718-555-5555 `STUDENT.PHONE[6]` = 718-555-5555 `STUDENT.PHONE[7]` = 718-555-5555 `STUDENT.PHONE[8]` = 201-555-5555 `STUDENT.PHONE[9]` = 718-555-5555 `STUDENT.STREET_ADDRESS[0]` = 8020 Fort Ave. #A3 `STUDENT.STREET_ADDRESS[1]` = 144-35 32nd Ave `STUDENT.STREET_ADDRESS[2]` = 224 40th St `STUDENT.STREET_ADDRESS[3]` = 481 Van Buren St.#C1 `STUDENT.STREET_ADDRESS[4]` = 88 Sherman St. `STUDENT.STREET_ADDRESS[5]` = 105-34 65th Ave. #6B `STUDENT.STREET_ADDRESS[6]` = 142-20 Franklin Ave. #2Q `STUDENT.STREET_ADDRESS[7]` = 105-34 65th Ave. #6B `STUDENT.STREET_ADDRESS[8]` = 88 Sherman St. `STUDENT.STREET_ADDRESS[9]` = 172-12 133rd Ave. `STUDENT.ZIP[0]` = 11209 `STUDENT.ZIP[1]` = 11354 `STUDENT.ZIP[2]` = 07111 `STUDENT.ZIP[3]` = 11221 `STUDENT.ZIP[4]` = 07055 `STUDENT.ZIP[5]` = 11375 `STUDENT.ZIP[6]` = 11355 `STUDENT.ZIP[7]` = 11375 `STUDENT.ZIP[8]` = 07055 `STUDENT.ZIP[9]` = 11434
2		`Type STUDENT.EMPLOYER[0] = FormsRefresh Labs`	`STUDENT.EMPLOYER[0]`	`STUDENT.EMPLOYER[0]` = FormsRefresh Labs
3	save	`Click Toolbar.Save`	`STUDENT.EMPLOYER[0]`		FRM-40400: Transaction complete: 1 records applied and saved.

Database effects

STUDENT updated: {"key": {"STUDENT_ID": 385}, "changed": {"EMPLOYER": {"before": "Georval, Inc.", "after": "FormsRefresh Labs"}}}

Classified diff against the migrated app

Diff: form2-student-update
counts: match 371, tolerated 0, waived 0, defect 0, unmapped 0, harness 0
generated-id pairs (source -> target): none

waivers:
  S1 [proposed] Screen-reader announcement of the COURSE_NO item read as a message: applied to 0 value(s)

Waivers

No waiver applies to this scenario: every compared value matches or is within the tolerance policy.
