Student forms / form2-zip-lov

form2-zip-lov

Double-click the instructor's ZIP: WHEN-MOUSE-DOUBLECLICK runs DO_KEY('LIST_VALUES') and the Zip Codes LOV opens; Escape closes it without a choice. The item's LOV is then used through Edit > Display List to choose another zip, and the change is saved (PRE-UPDATE).

0defects

463values match

1tolerated by policy

0waived

0unmapped

Three runs from a fresh database gave byte-identical diffs. Behaviour that looks odd in the migrated app but is the original's: faithful to the original and waivers. Files: scenario, golden record, target record, diff (JSON).

Scenario steps

Items are addressed by their Forms name (BLOCK.ITEM[row]), the same name in the original and, through the mapping, in the migrated app.

#	Step	Action
0		Open form `QAFE_FORM2`
1	double click zip	Step {"label": "double click zip", "double_click": "INSTRUCTOR.ZIP[0]"}
2	close the lov	Press `Escape`
3	choose a zip	List of values on `INSTRUCTOR.ZIP[0]`, pick `Zip` = 02124
4	save	Click `Toolbar.Save`

Screens, step by step

Left: the original Oracle Forms application, recorded on a virtual display. Right: the migrated application in headless Chromium. Screenshots are evidence only; the comparison works on the recorded values.

Step 0: open QAFE_FORM2

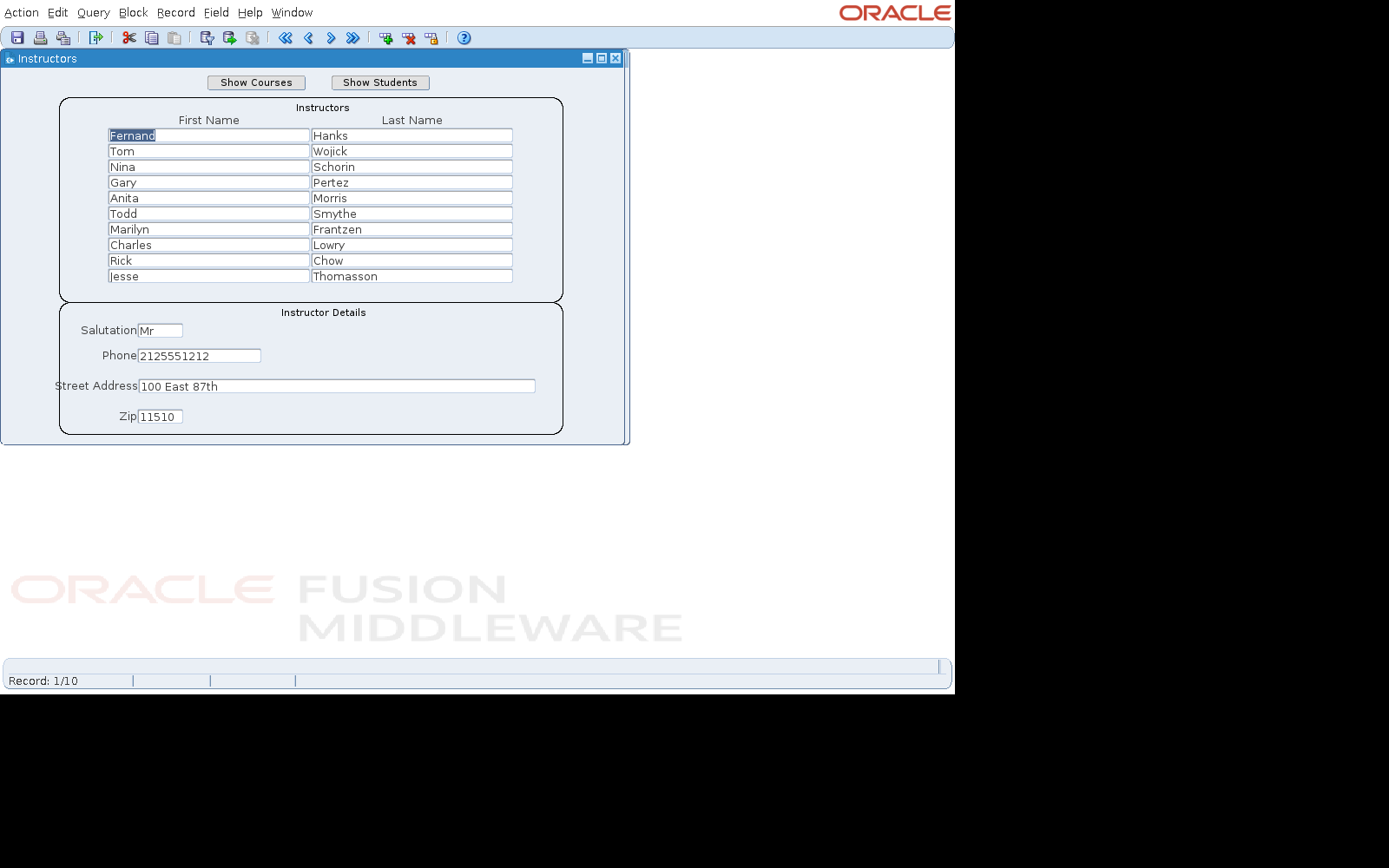

Original (Oracle Forms 14.1.2), step 00-open — Original (Oracle Forms 14.1.2)

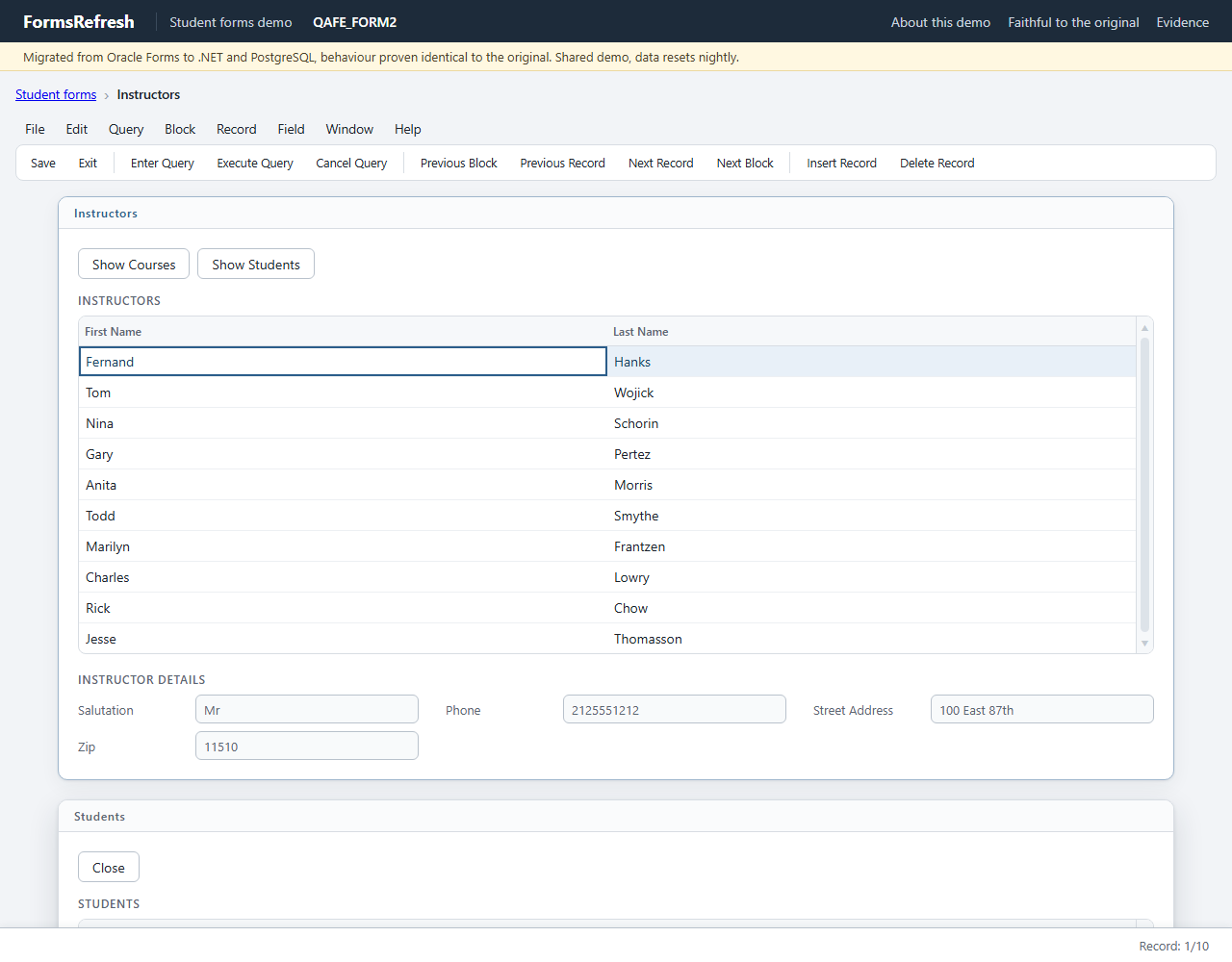

Migrated (.NET, PostgreSQL), step 00-open — Migrated (.NET, PostgreSQL)

Step 1: double click zip

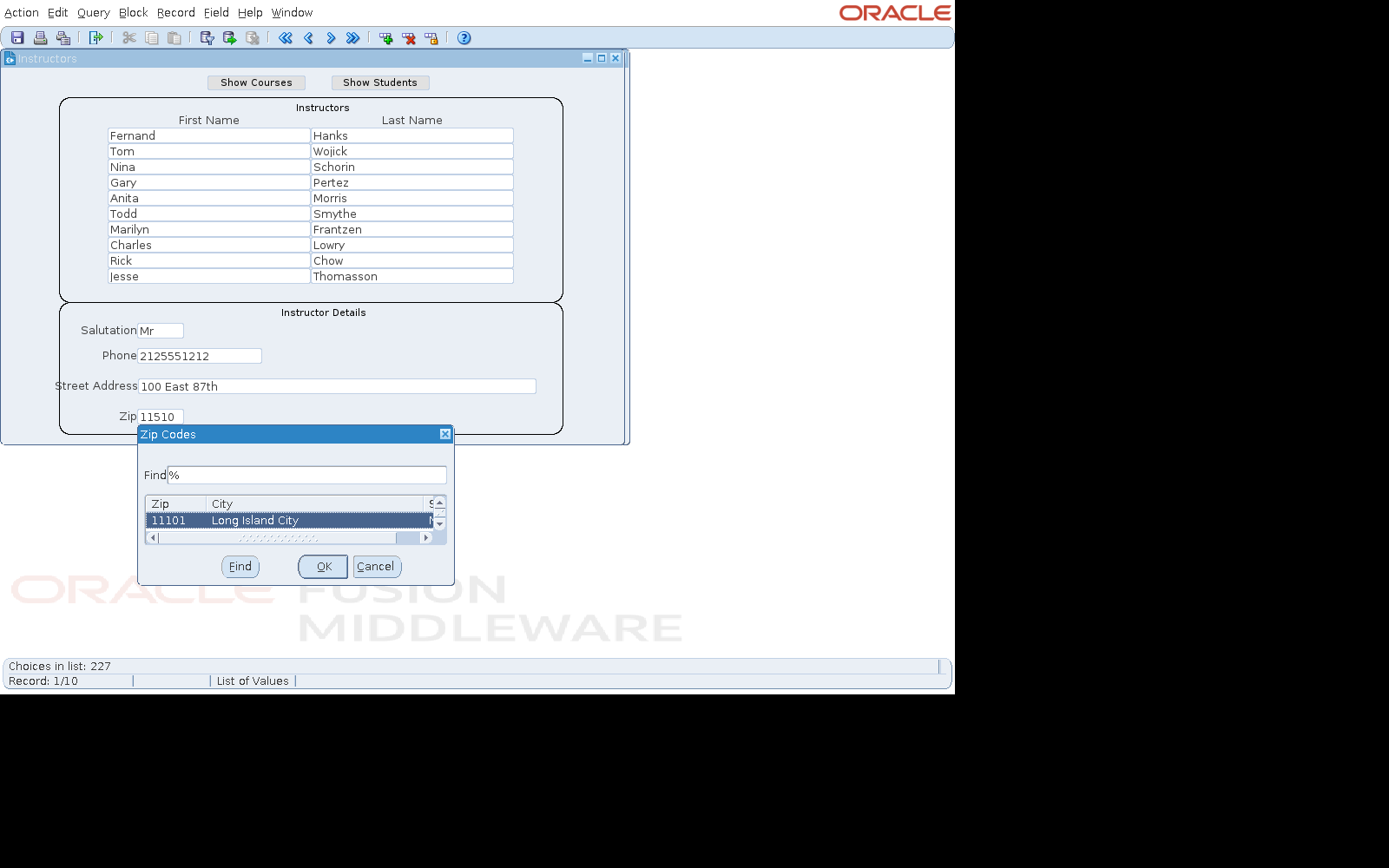

Original (Oracle Forms 14.1.2), step 01-double-click-zip — Original (Oracle Forms 14.1.2)

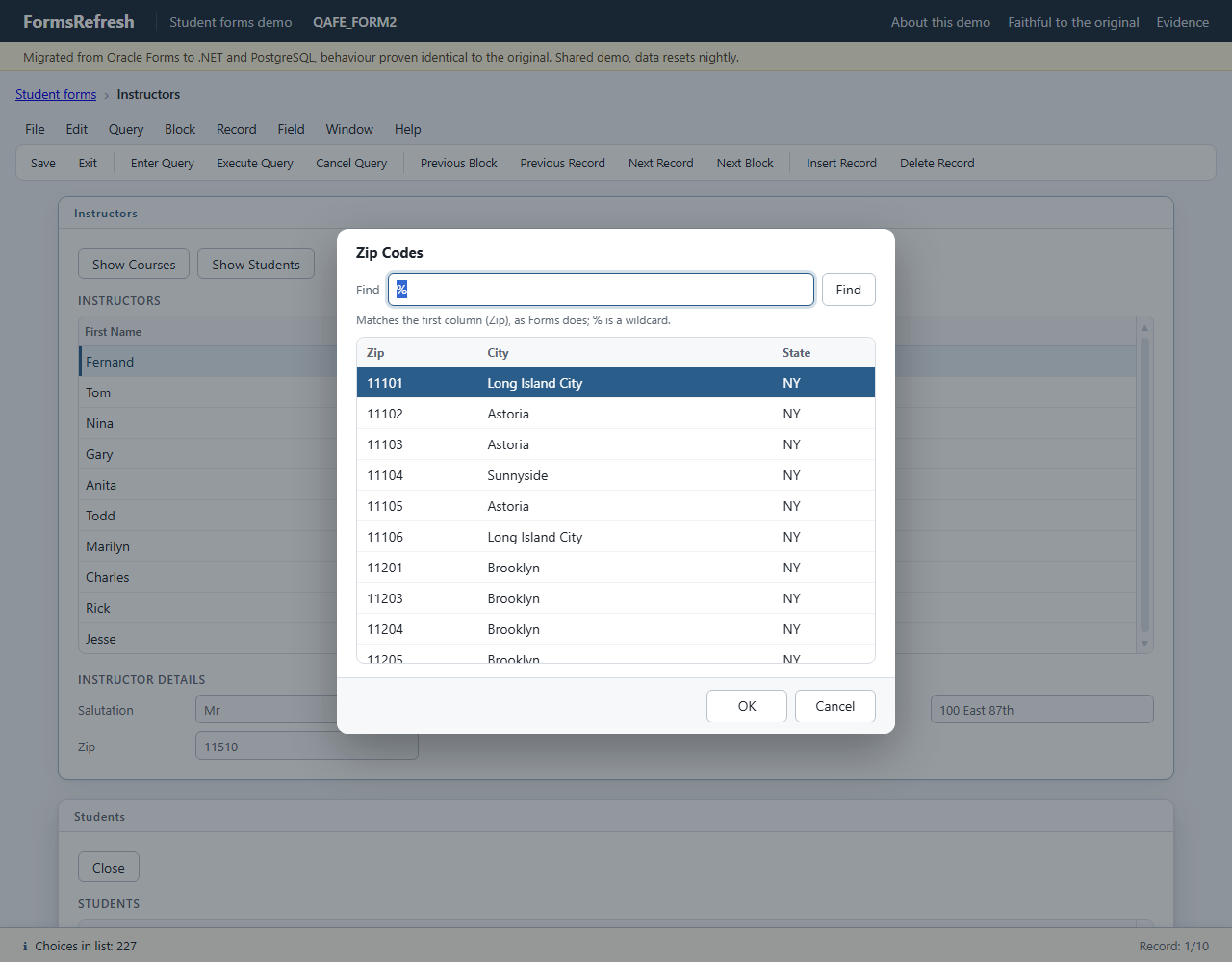

Migrated (.NET, PostgreSQL), step 01-double-click-zip — Migrated (.NET, PostgreSQL)

Step 2: close the lov

Original (Oracle Forms 14.1.2), step 02-close-the-lov — Original (Oracle Forms 14.1.2)

Migrated (.NET, PostgreSQL), step 02-close-the-lov — Migrated (.NET, PostgreSQL)

Step 3: choose a zip

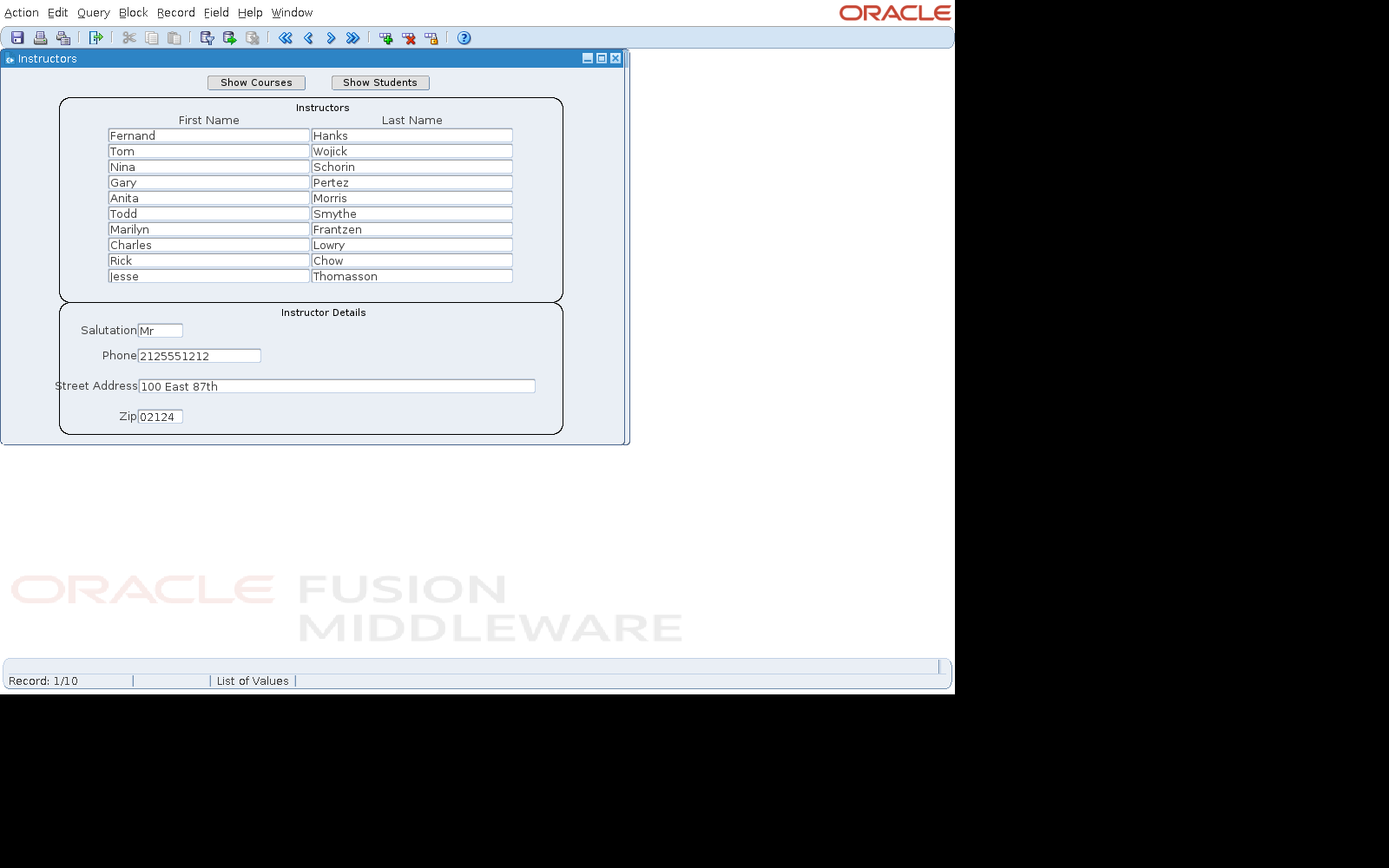

Original (Oracle Forms 14.1.2), step 03-choose-a-zip — Original (Oracle Forms 14.1.2)

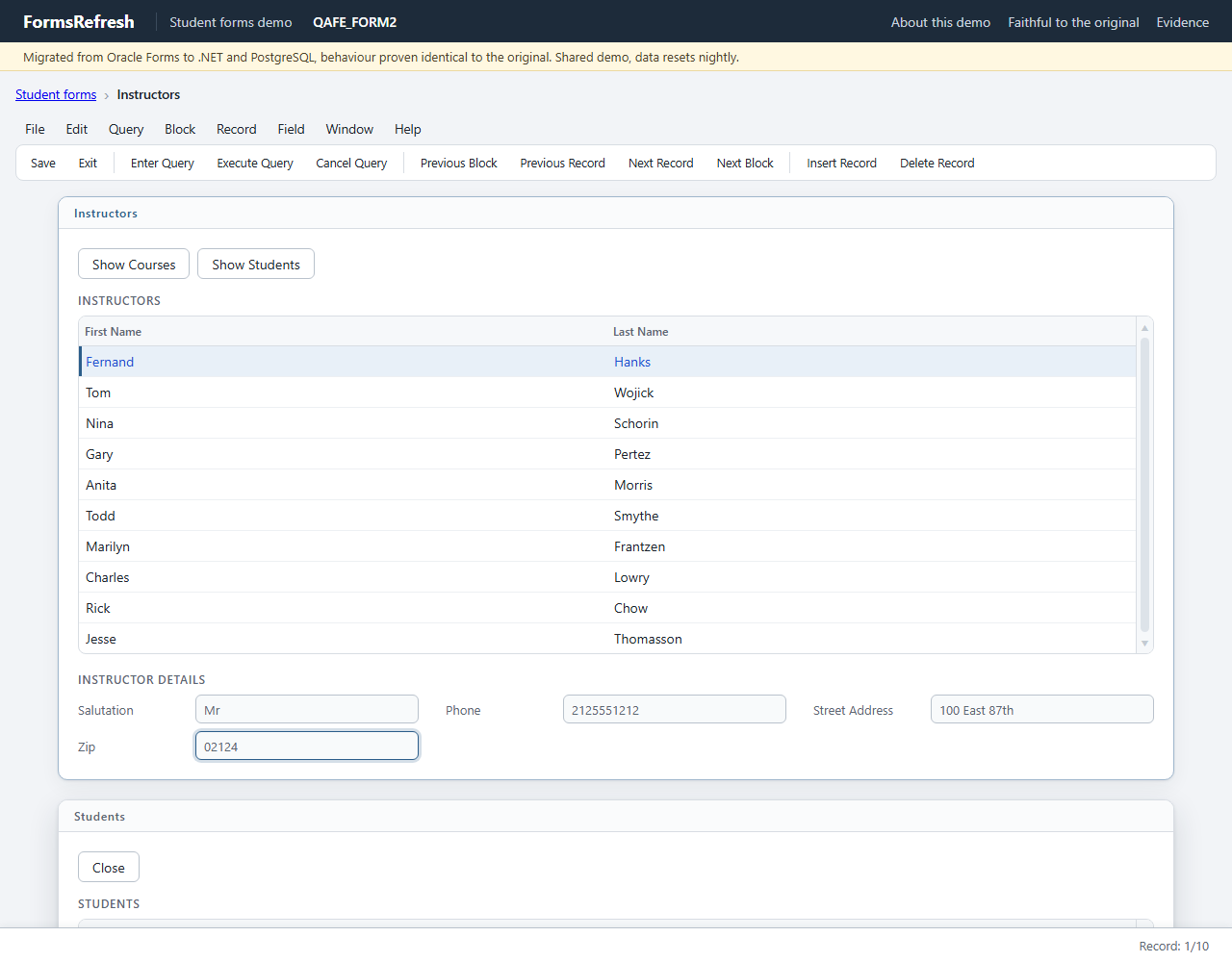

Migrated (.NET, PostgreSQL), step 03-choose-a-zip — Migrated (.NET, PostgreSQL)

Step 4: save

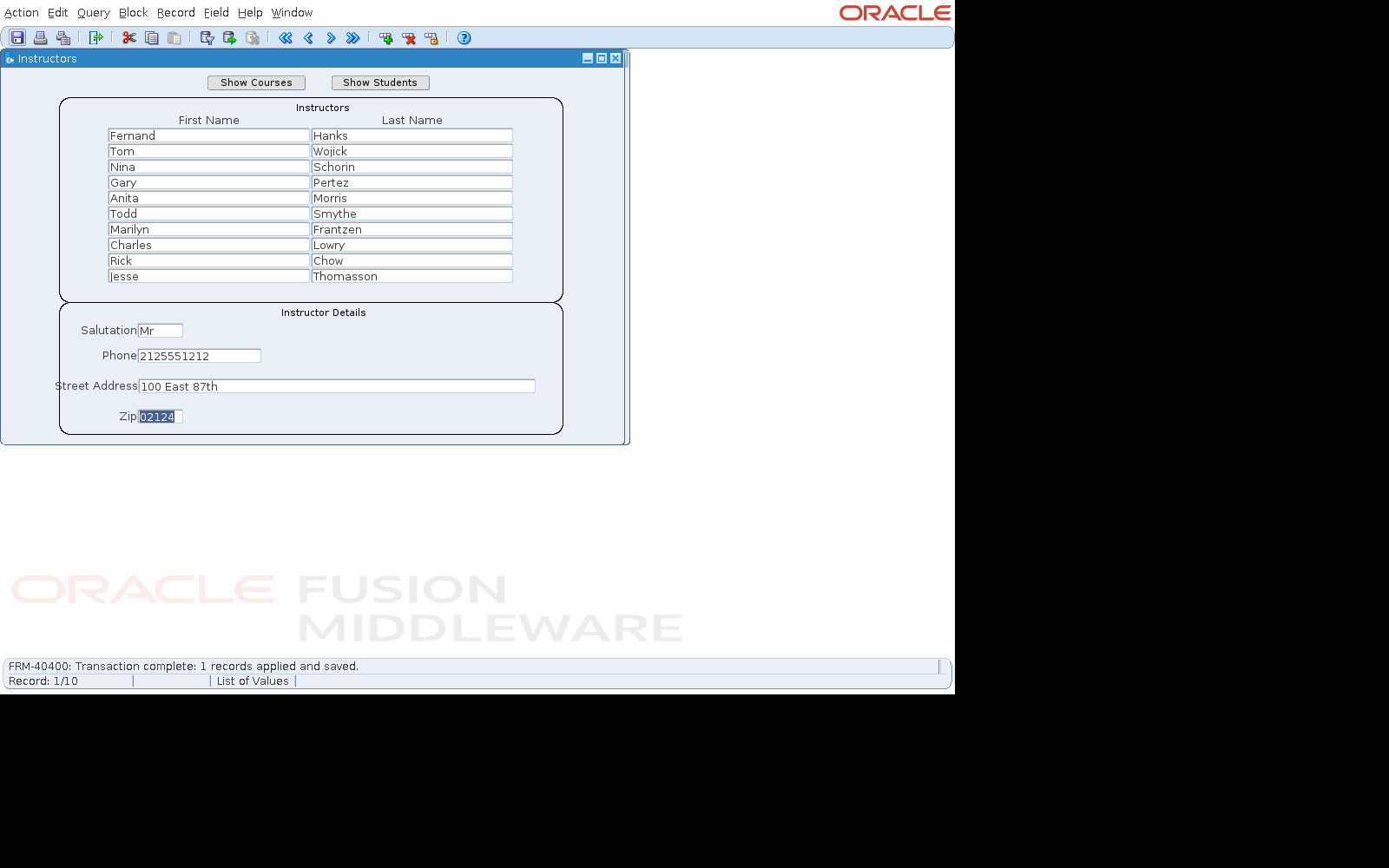

Original (Oracle Forms 14.1.2), step 04-save — Original (Oracle Forms 14.1.2)

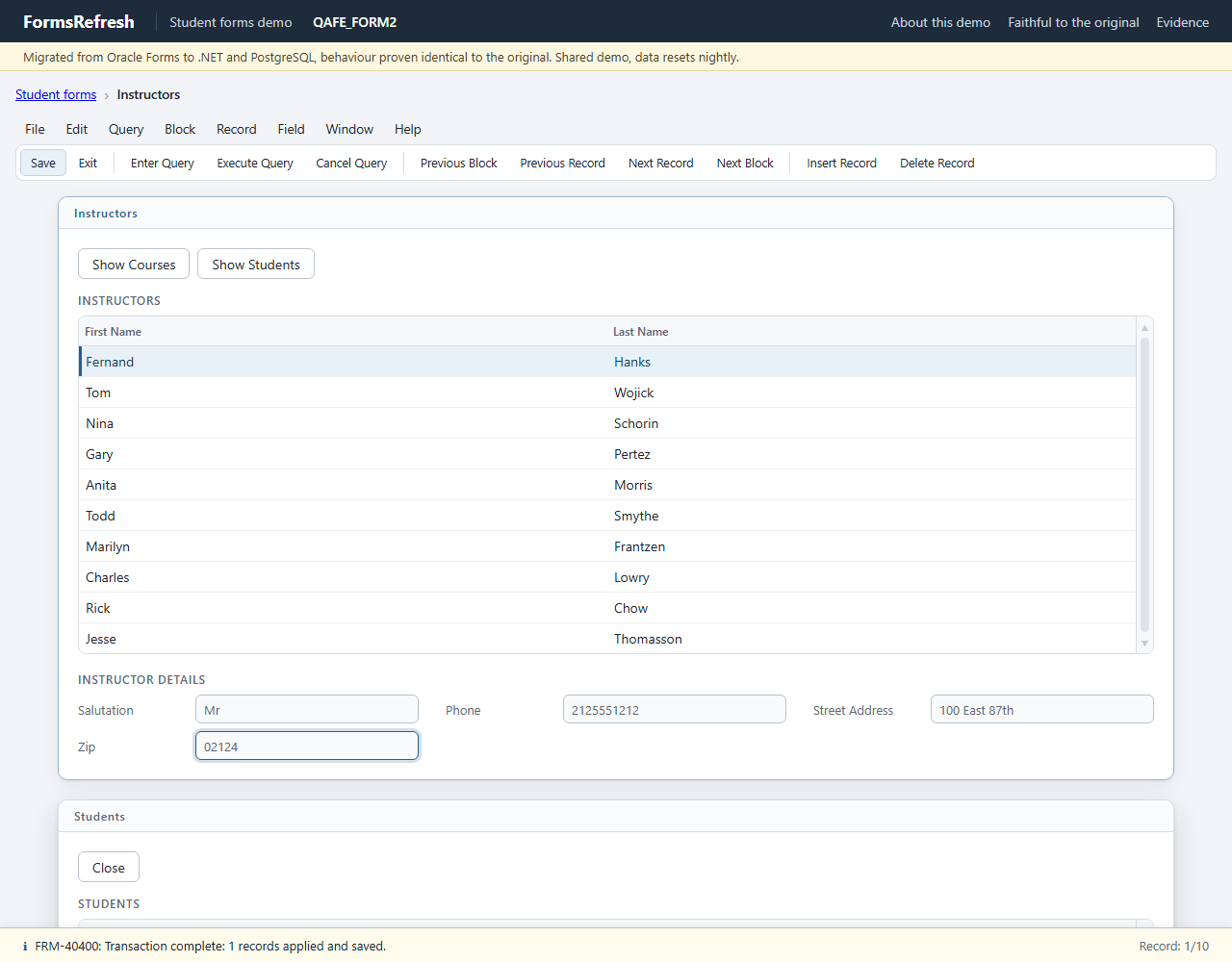

Migrated (.NET, PostgreSQL), step 04-save — Migrated (.NET, PostgreSQL)

Golden record of the original

After each step: the focus, the displayed values that changed, the message line and any alert. The full record (every item of every step, windows, lists of values) is in the JSON file.

#	Step	Action (by name)	Focus after	Displayed values that changed	Message line
0		`Open form QAFE_FORM2`	`INSTRUCTOR.FIRST_NAME[0]`	`INSTRUCTOR.FIRST_NAME[0]` = Fernand `INSTRUCTOR.FIRST_NAME[1]` = Tom `INSTRUCTOR.FIRST_NAME[2]` = Nina `INSTRUCTOR.FIRST_NAME[3]` = Gary `INSTRUCTOR.FIRST_NAME[4]` = Anita `INSTRUCTOR.FIRST_NAME[5]` = Todd `INSTRUCTOR.FIRST_NAME[6]` = Marilyn `INSTRUCTOR.FIRST_NAME[7]` = Charles `INSTRUCTOR.FIRST_NAME[8]` = Rick `INSTRUCTOR.FIRST_NAME[9]` = Jesse `INSTRUCTOR.LAST_NAME[0]` = Hanks `INSTRUCTOR.LAST_NAME[1]` = Wojick `INSTRUCTOR.LAST_NAME[2]` = Schorin `INSTRUCTOR.LAST_NAME[3]` = Pertez `INSTRUCTOR.LAST_NAME[4]` = Morris `INSTRUCTOR.LAST_NAME[5]` = Smythe `INSTRUCTOR.LAST_NAME[6]` = Frantzen `INSTRUCTOR.LAST_NAME[7]` = Lowry `INSTRUCTOR.LAST_NAME[8]` = Chow `INSTRUCTOR.LAST_NAME[9]` = Thomasson `INSTRUCTOR.PHONE[0]` = 2125551212 `INSTRUCTOR.SALUTATION[0]` = Mr `INSTRUCTOR.STREET_ADDRESS[0]` = 100 East 87th `INSTRUCTOR.ZIP[0]` = 11510
1	double click zip	`Step {"label": "double click zip", "double_click": "INSTRUCTOR.ZIP[0]"}`	`ZIP_LOV/ListView`		Choices in list: 227
2	close the lov	`Press Escape`	`INSTRUCTOR.ZIP[0]`
3	choose a zip	`List of values on INSTRUCTOR.ZIP[0], pick Zip = 02124`	`INSTRUCTOR.ZIP[0]`	`INSTRUCTOR.ZIP[0]` = 02124
4	save	`Click Toolbar.Save`	`INSTRUCTOR.ZIP[0]`		FRM-40400: Transaction complete: 1 records applied and saved.

Database effects

INSTRUCTOR updated: {"key": {"INSTRUCTOR_ID": 101}, "changed": {"MODIFIED_DATE": {"before": "2016-04-29T00:00:00", "after": "<date>"}, "ZIP": {"before": "11510", "after": "02124"}}}

Classified diff against the migrated app

Diff: form2-zip-lov
counts: match 463, tolerated 1, waived 0, defect 0, unmapped 0, harness 0
generated-id pairs (source -> target): none

waivers:
  S1 [proposed] Screen-reader announcement of the COURSE_NO item read as a message: applied to 0 value(s)

[tolerated] ui.seen.lov.rows  rule=unfetched_rows  (121 of 227 source rows not fetched by the client)  x1

Waivers

No waiver applies to this scenario: every compared value matches or is within the tolerance policy.
