Student forms / form3-sections

form3-sections

Show Sections opens the second window; SECTION's WHEN-NEW-BLOCK-INSTANCE queries the course's sections. Close Window runs GO_BACK_TO_HOME_SCREEN.

0defects

168values match

0tolerated by policy

0waived

0unmapped

Three runs from a fresh database gave byte-identical diffs. Behaviour that looks odd in the migrated app but is the original's: faithful to the original and waivers. Files: scenario, golden record, target record, diff (JSON).

Scenario steps

Items are addressed by their Forms name (BLOCK.ITEM[row]), the same name in the original and, through the mapping, in the migrated app.

#	Step	Action
0		Open form `QAFE_FORM3`
1	show sections	Click `COURSE.PUSH_BUTTON_WINDOW`
2	close	Click `SUB_BLOCK.PUSH_BUTTON_CLOSE`

Screens, step by step

Left: the original Oracle Forms application, recorded on a virtual display. Right: the migrated application in headless Chromium. Screenshots are evidence only; the comparison works on the recorded values.

Step 0: open QAFE_FORM3

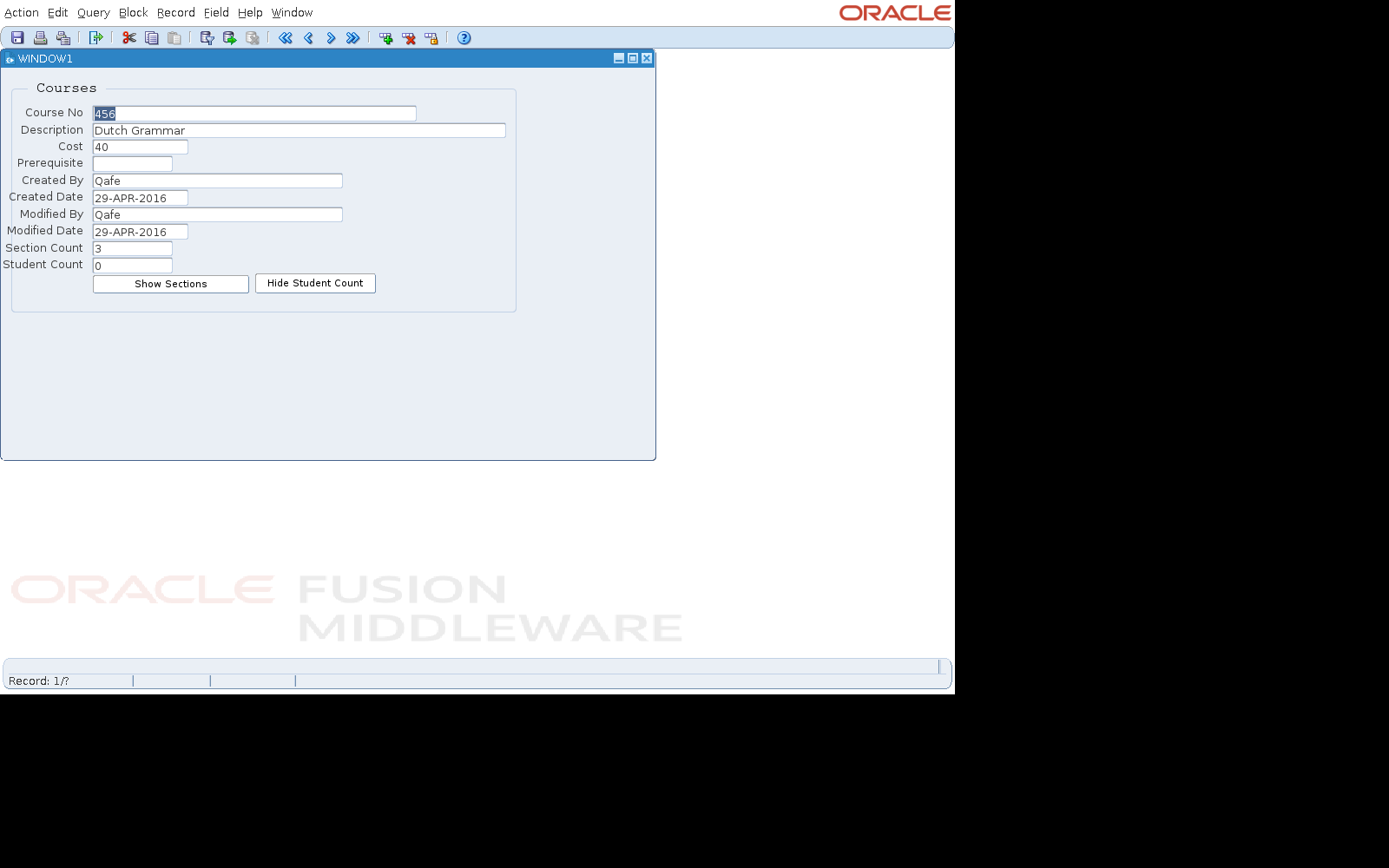

Original (Oracle Forms 14.1.2), step 00-open — Original (Oracle Forms 14.1.2)

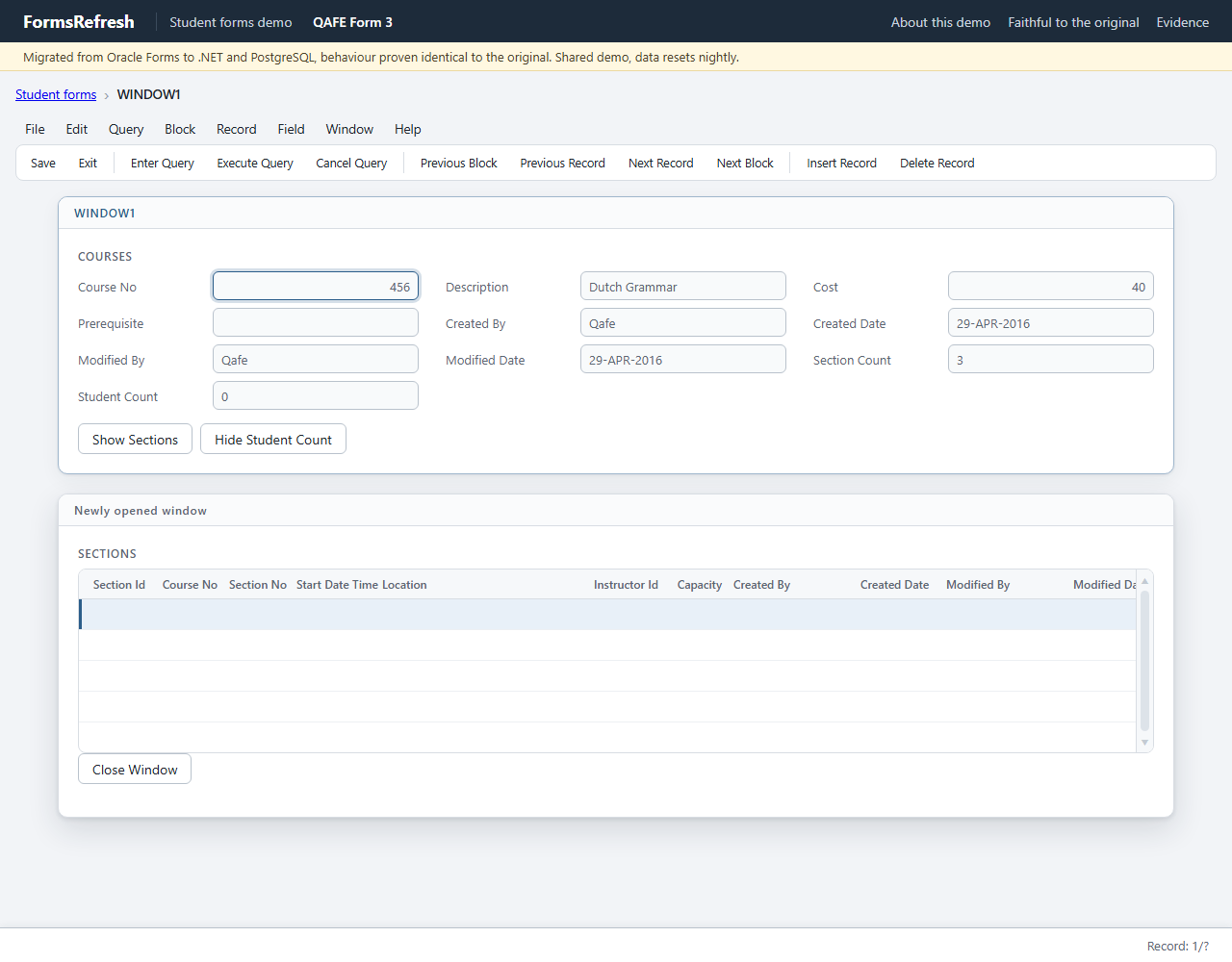

Migrated (.NET, PostgreSQL), step 00-open — Migrated (.NET, PostgreSQL)

Step 1: show sections

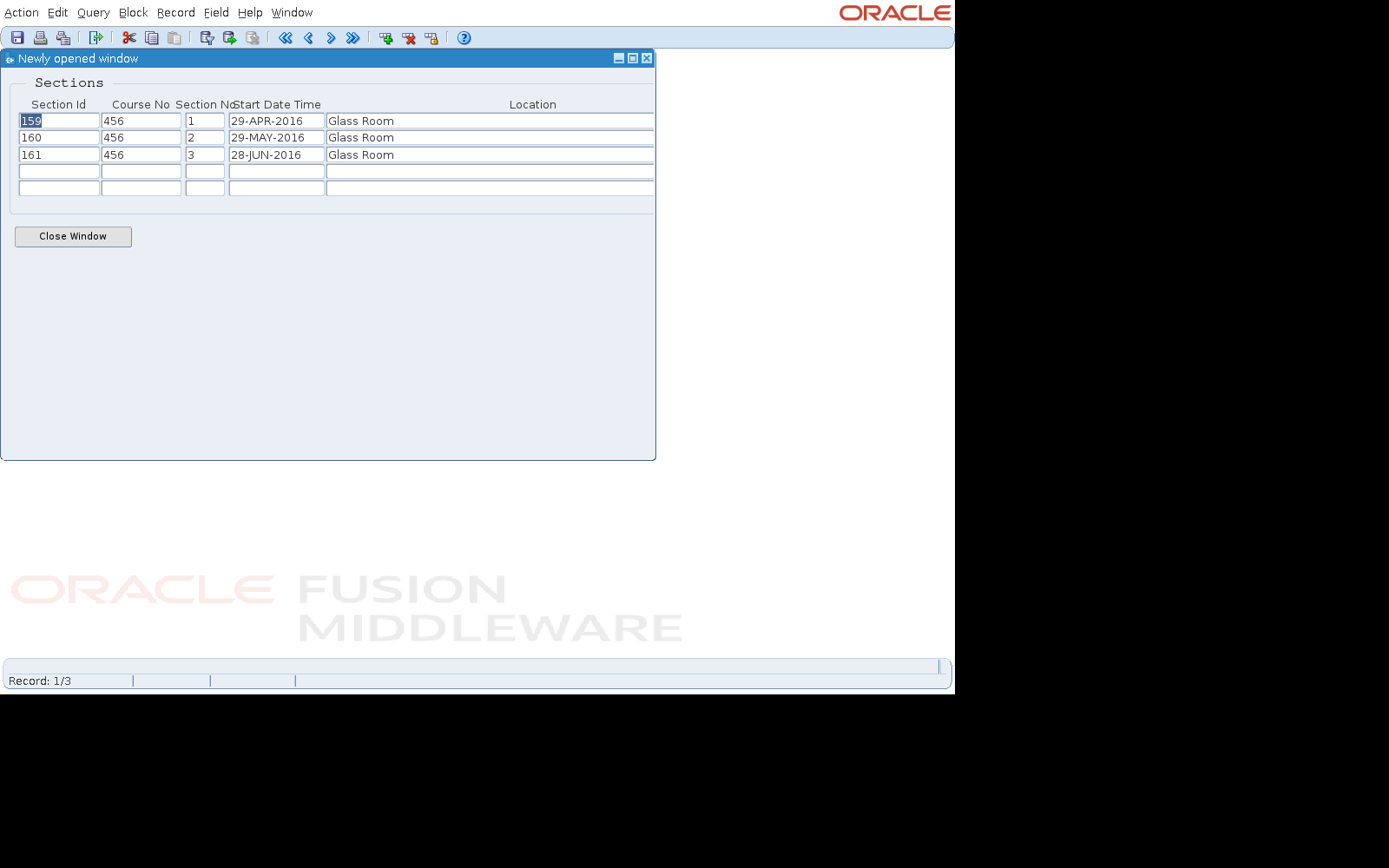

Original (Oracle Forms 14.1.2), step 01-show-sections — Original (Oracle Forms 14.1.2)

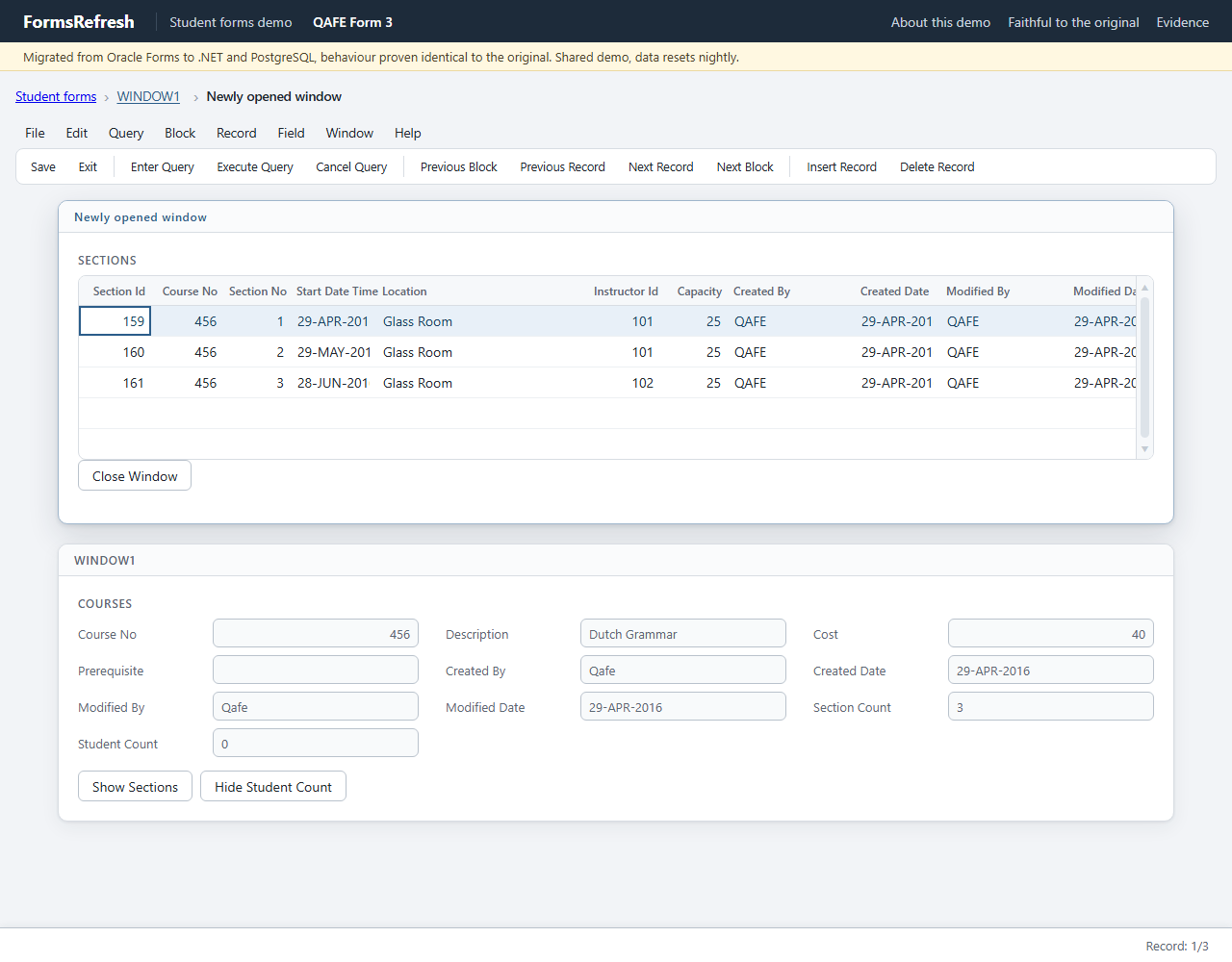

Migrated (.NET, PostgreSQL), step 01-show-sections — Migrated (.NET, PostgreSQL)

Step 2: close

Original (Oracle Forms 14.1.2), step 02-close — Original (Oracle Forms 14.1.2)

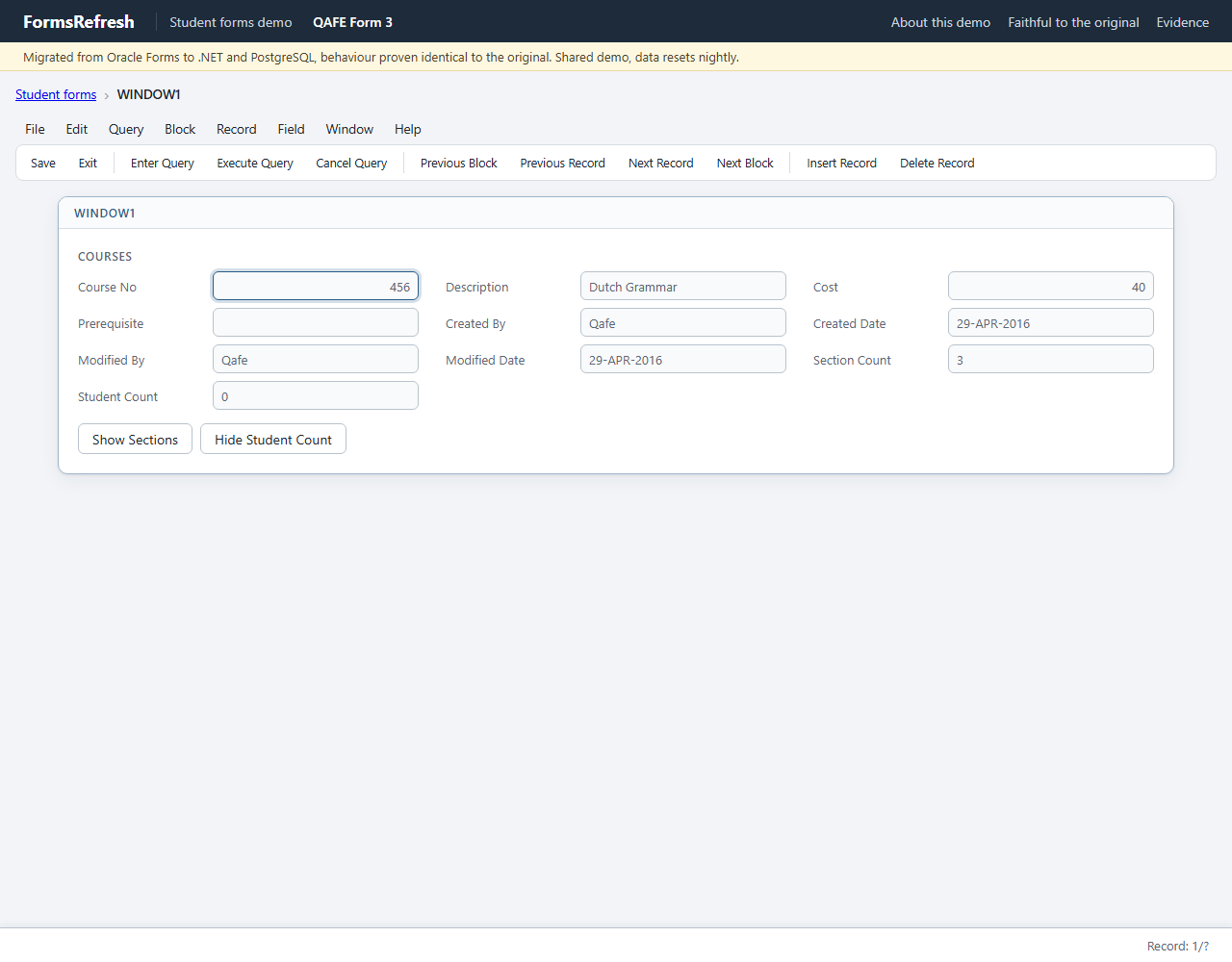

Migrated (.NET, PostgreSQL), step 02-close — Migrated (.NET, PostgreSQL)

Golden record of the original

After each step: the focus, the displayed values that changed, the message line and any alert. The full record (every item of every step, windows, lists of values) is in the JSON file.

#	Step	Action (by name)	Focus after	Displayed values that changed
0		`Open form QAFE_FORM3`	`COURSE.COURSE_NO[0]`	`COURSE.COST[0]` = 40 `COURSE.COURSE_NO[0]` = 456 `COURSE.CREATED_BY[0]` = Qafe `COURSE.CREATED_DATE[0]` = 29-APR-2016 `COURSE.DESCRIPTION[0]` = Dutch Grammar `COURSE.MODIFIED_BY[0]` = Qafe `COURSE.MODIFIED_DATE[0]` = 29-APR-2016 `COURSE.SECTIONCOUNT[0]` = 3 `COURSE.STUDENTCOUNT[0]` = 0
1	show sections	`Click COURSE.PUSH_BUTTON_WINDOW`	`SECTION.SECTION_ID[0]`	`SECTION.CAPACITY[0]` = 25 `SECTION.CAPACITY[1]` = 25 `SECTION.CAPACITY[2]` = 25 `SECTION.COURSE_NO[0]` = 456 `SECTION.COURSE_NO[1]` = 456 `SECTION.COURSE_NO[2]` = 456 `SECTION.CREATED_BY[0]` = QAFE `SECTION.CREATED_BY[1]` = QAFE `SECTION.CREATED_BY[2]` = QAFE `SECTION.CREATED_DATE[0]` = 29-APR-2016 `SECTION.CREATED_DATE[1]` = 29-APR-2016 `SECTION.CREATED_DATE[2]` = 29-APR-2016 `SECTION.INSTRUCTOR_ID[0]` = 101 `SECTION.INSTRUCTOR_ID[1]` = 101 `SECTION.INSTRUCTOR_ID[2]` = 102 `SECTION.LOCATION[0]` = Glass Room `SECTION.LOCATION[1]` = Glass Room `SECTION.LOCATION[2]` = Glass Room `SECTION.MODIFIED_BY[0]` = QAFE `SECTION.MODIFIED_BY[1]` = QAFE `SECTION.MODIFIED_BY[2]` = QAFE `SECTION.MODIFIED_DATE[0]` = 29-APR-2016 `SECTION.MODIFIED_DATE[1]` = 29-APR-2016 `SECTION.MODIFIED_DATE[2]` = 29-APR-2016 `SECTION.SECTION_ID[0]` = 159 `SECTION.SECTION_ID[1]` = 160 `SECTION.SECTION_ID[2]` = 161 `SECTION.SECTION_NO[0]` = 1 `SECTION.SECTION_NO[1]` = 2 `SECTION.SECTION_NO[2]` = 3 `SECTION.START_DATE_TIME[0]` = 29-APR-2016 `SECTION.START_DATE_TIME[1]` = 29-MAY-2016 `SECTION.START_DATE_TIME[2]` = 28-JUN-2016
2	close	`Click SUB_BLOCK.PUSH_BUTTON_CLOSE`	`COURSE.COURSE_NO[0]`

Database effects

None: the scenario changes no row and draws no sequence value.

Classified diff against the migrated app

Diff: form3-sections
counts: match 168, tolerated 0, waived 0, defect 0, unmapped 0, harness 0
generated-id pairs (source -> target): none

waivers:
  S1 [proposed] Screen-reader announcement of the COURSE_NO item read as a message: applied to 0 value(s)

Waivers

No waiver applies to this scenario: every compared value matches or is within the tolerance policy.
